Vlissingen 27 March 2014 |
|
Name |

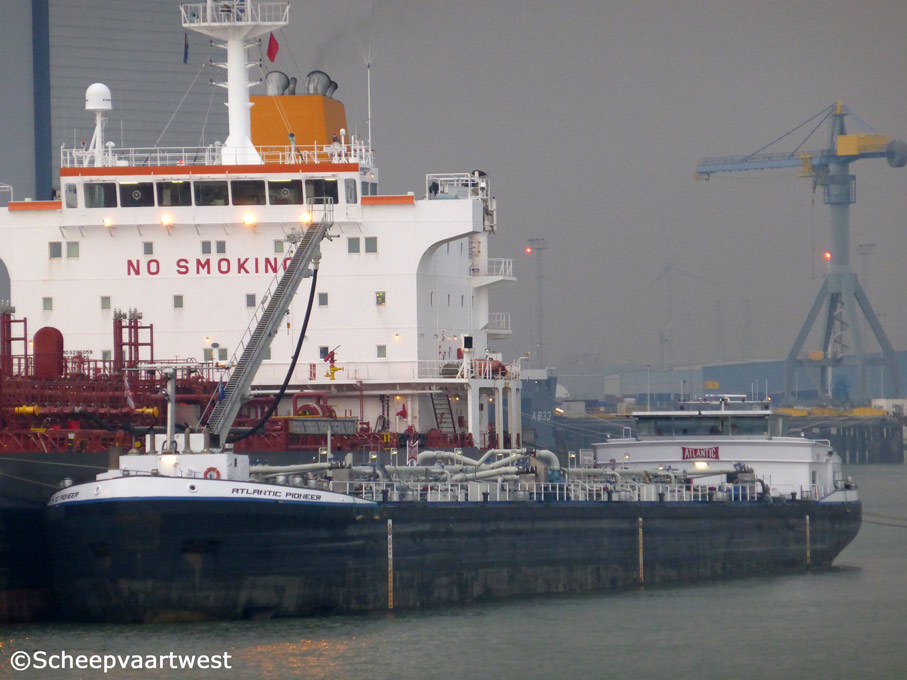

ATLANTIC PIONEER |
|
Type |
Inland bunker tank ship |
|
ENI-number |
02327377 |
|
Call sign |
PD4131 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
5.962 t |
|
Length |
135,00 m |
|
Breadth |
13,50 m |
|
Draught |
4,50 m |
|
Depth |
5,30 m |
|
Built |
2006 |
|
Builder casco |
Sainty Longchuaw Shipbuilding Corp. Jiangdu City China |
|
Builder completion |
Smits Machinefabriek en Scheepsreparatie B.V |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M20 diesel engine 1.544 kW / 2.100 hp at 1.000 rpm |
|
Gearbox |
1x ZF Marine type ZF W18000 |
|
Propellers |
1x 4-bladed diameter 1.800 mm with nozzle Giessen Optima diameter 1.862 mm |
|
Generators |
2x Caterpillar 3412 DI-TA diesel engines couple with Newage Stamford HCM 634 K generators 2x John Deere 6068 TF 158 diesel engines coupled with Newage Stamford UCM 274 E generators |
|
Compressed air receivers |
2x Sperre type HL 2/90 - 30,0 bar at 975 rpm Capacity each 28 m³/h |
|
Bow thruster |
1x Caterpillar 3406 engine 400 hp at 1.800 rpm Verhaar Omega-Jet 31120-4k with electro motor 179 kW |
|
Tank capacity |
5.937 m³ |
|
Pumps |
2x Cargo pumps Bornemann W9.6 zk 85 each coupled with ATEX motor 500 kW |
|
Owner |
Atlantic Schepen Exploitatie Mij. |
|
Latest data adjustment |
20 April 2014 |
