| Westerschelde 08 December 2018 |
 |
 |
 |
 |
 |
||||
| Westerschelde 05/03/15 | Westerschelde 01/07/14 | Antwerpen 18/01/14 | Westerschelde 18/03/16 | Westerschelde 14/07/17 | ||||
|
Name |

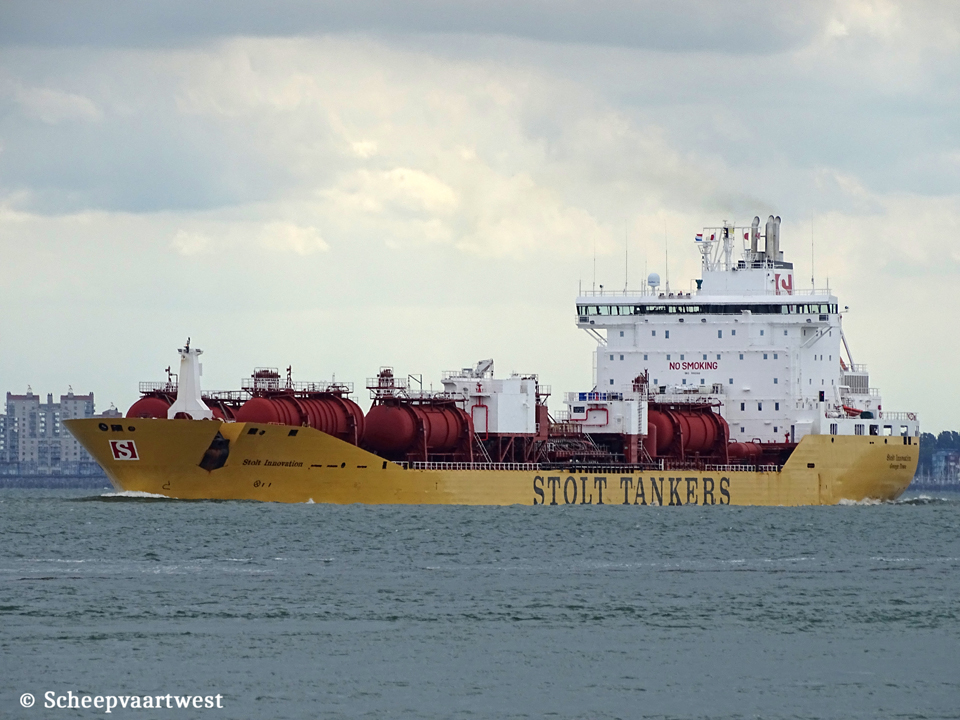

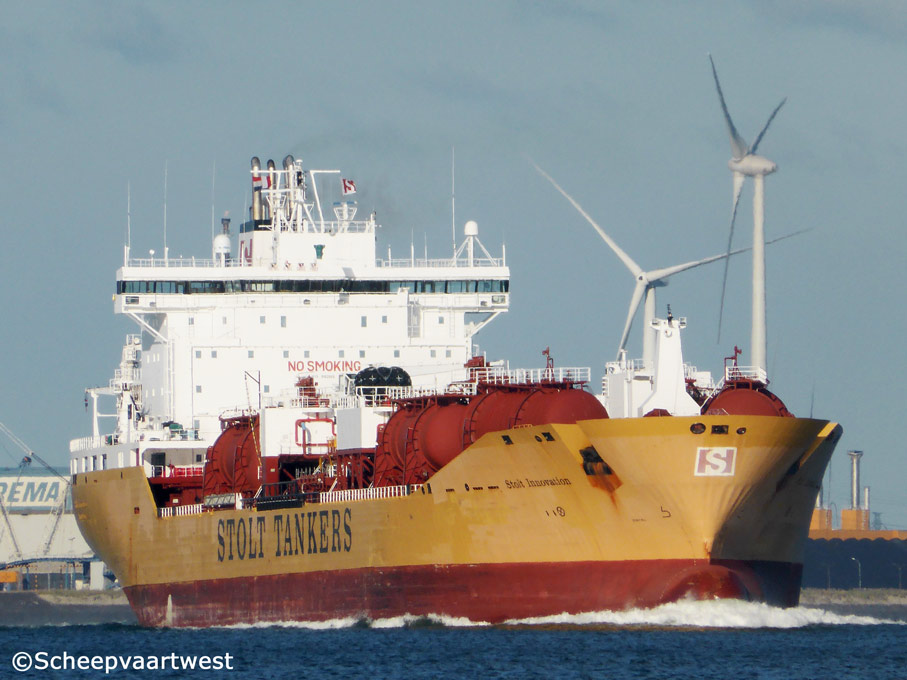

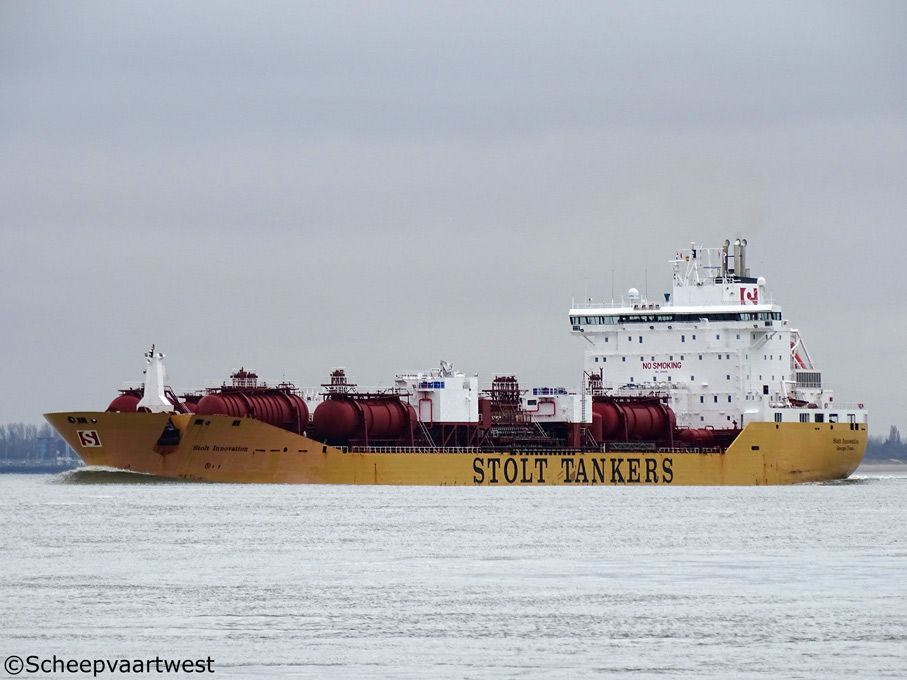

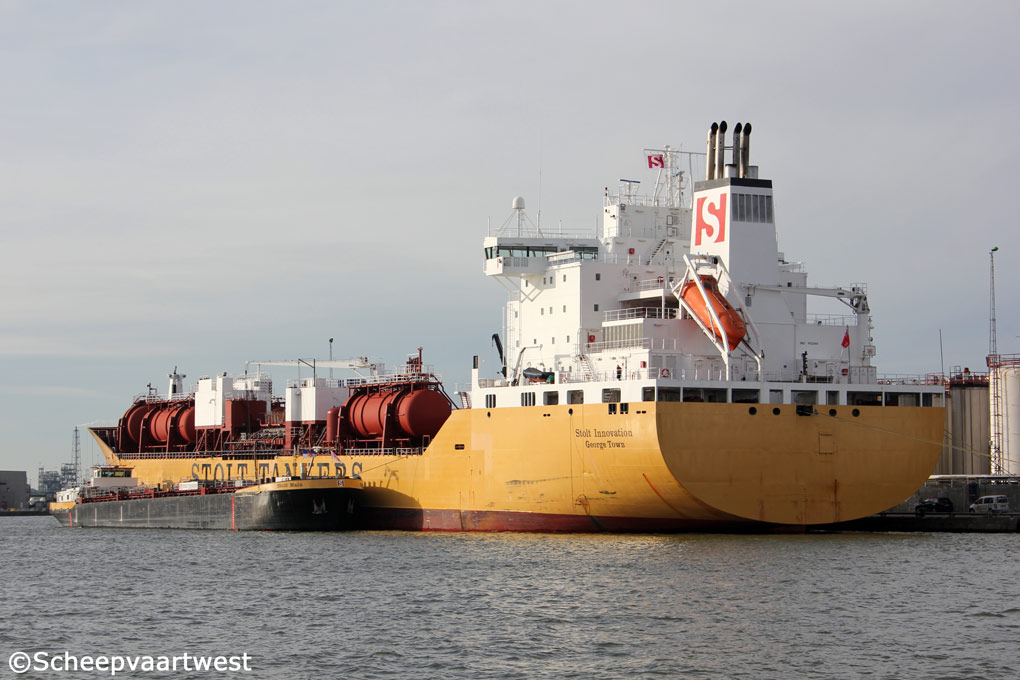

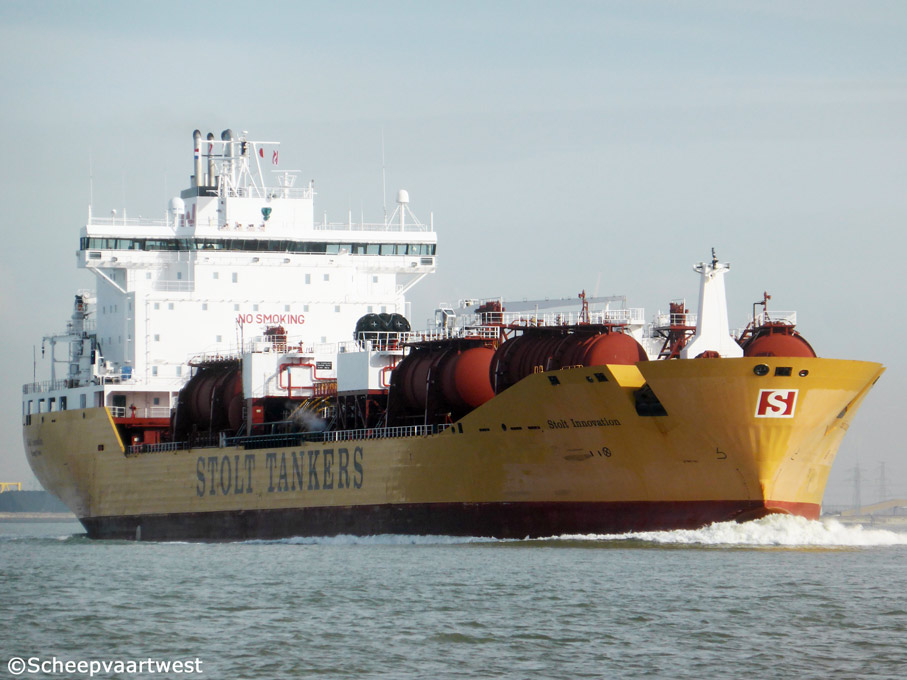

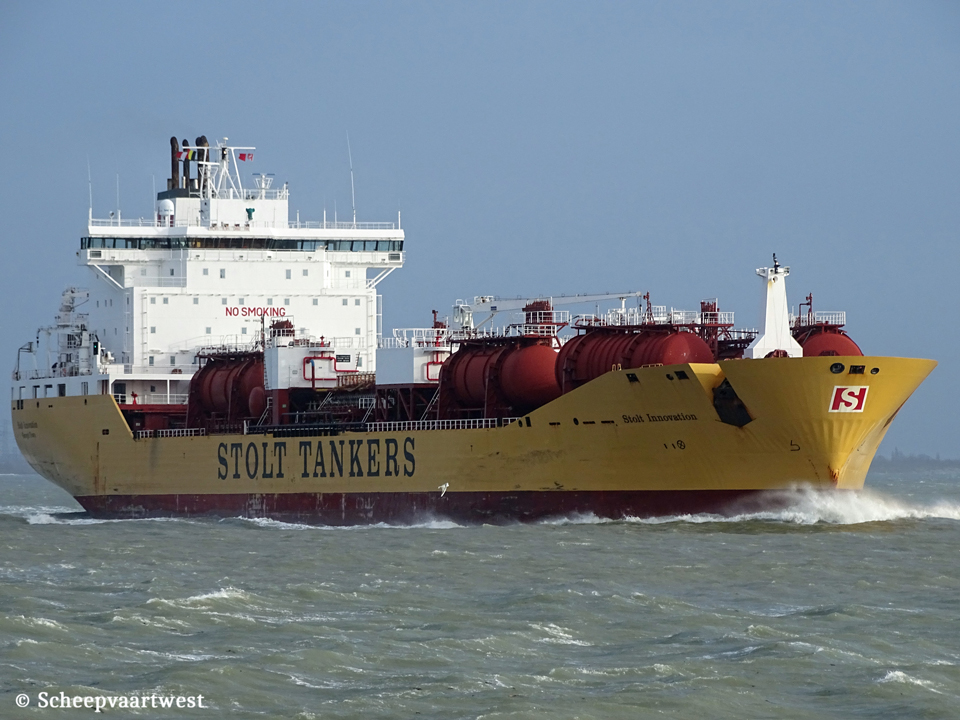

STOLT INNOVATION |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9102069 |
|
Call sign |
ZCSP7 |
|
Flag |
Cayman Islands |
|
Port of registry |
George Town |
|
Previous flags |
1996 - 2000 Liberia, Monrovia |
|
GT |
24.846 |
|
DWT |
Summer: 36.876 t |
|
NT |
12.146 |
|
Length |
176,75 m overall 168,50 m between perpendiculars |
|
Breadth |
31,07 m extreme |
|
Draught |
11,90 m |
|
Keel to mast end |
48,10 m |
|
Depth |
15,61 m |
|
Speed |
16,2 knots |
|
Built |
1996 |
|
Keel laid |
10/04/1995 |
|
Launch date |
08/01/1996 |
|
Date of completion |
29/05/1996 |
|
Builder |
Danyard A/S Frederikshavn Denmark |
|
Yard number |
730 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Main engine |
Diesel-electric 4x Wärtsilä 9R32LN - 4 stroke 9 cylinder 320 x 350 mm combustion engines total 14/580 kW / 19.824 hp Builder: Wärtsilä NSD Finland, Turku - Finland |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
4x Auxiliary boiler, exhaust gas heated AP (Steam generation) AV-9 2x Auxiliary boiler, oil/gas fired AQ9 Builder: Aalborg |
|
Bow thruster |
1x 1.000 kW |
|
Generators |
4x Wärtsilä 9R32LN diesel generatorset Builder: Wärtsilä Finland Oy |
|
Emergency generator |
1x Wärtsilä UD 25 V12 S5D diesel generatorset |
|
Number of tanks |
42 |
|
Tank capacity |
38.600 m³ |
|
Number of pumps |
31x Cargo pumps each 300 m³/h 17x Cargo pumps each 200 m³/h |
|
Tank capacities |
Ballast: 16.477 m³ |
|
Anchor equipment |
Length: 330,00 m Diameter: 79 mm |
|
ISM & commercial manager |
Stolt Tankers B.V. Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Previous managers |
1996 - 2002 Stolt-Nielsen Transportation Group Ltd. |
|
Registered owner |
Stolt Innovation B.V Care of Stolt Tankers BV Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Latest data adjustment |
08 February 2025 |
