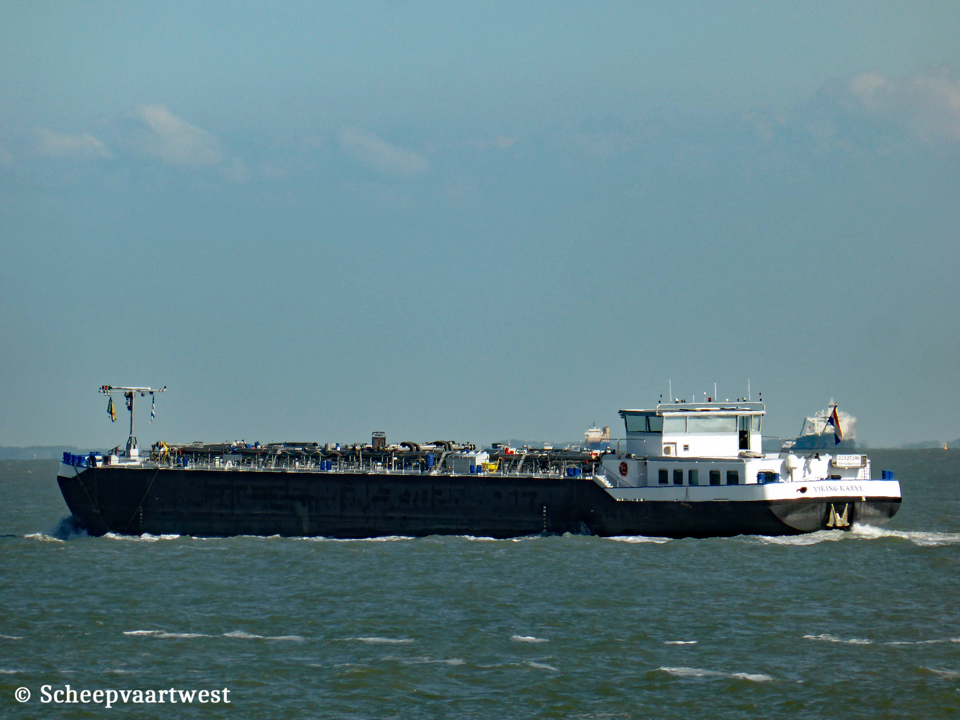

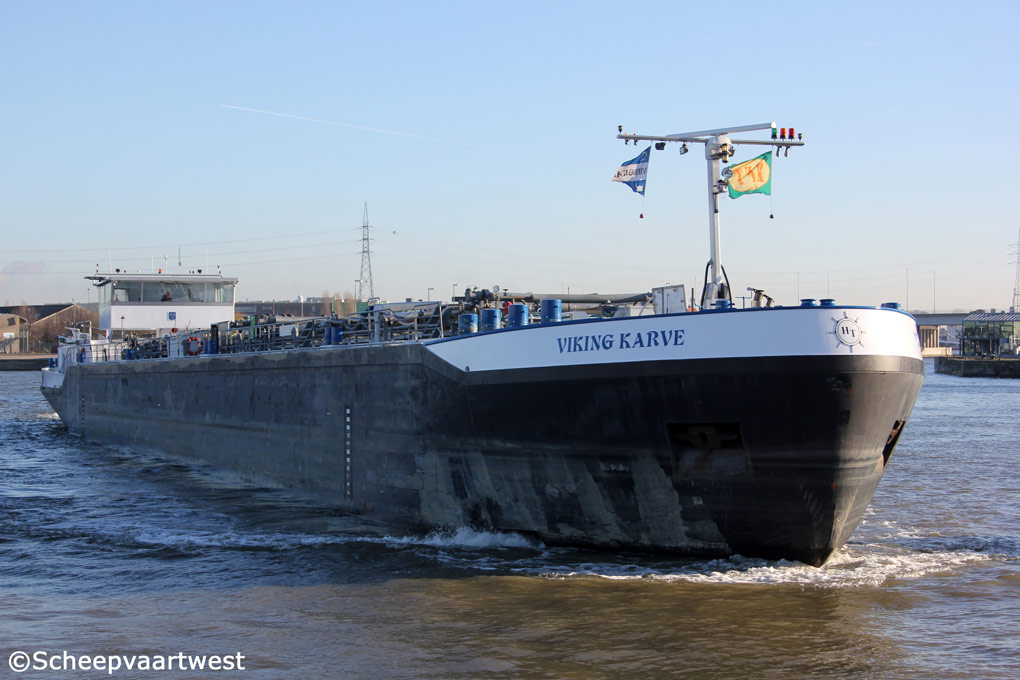

Viking Karve 01

Antwerpen 10 January 2014

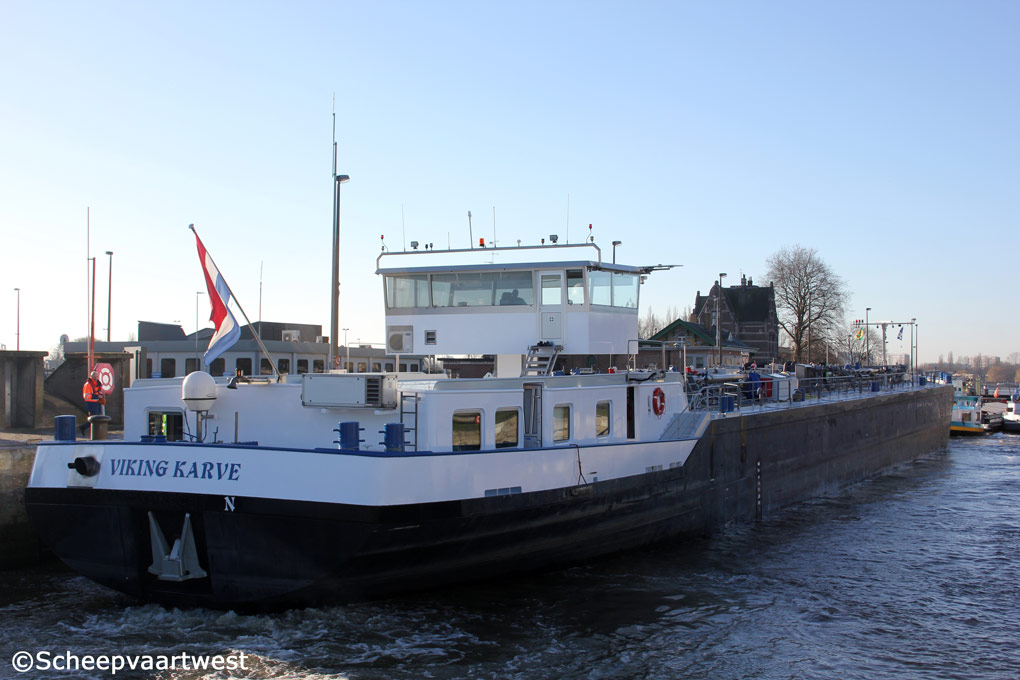

Viking Karve 02
10/01/14



Name

VIKING KARVE

Type

Inland tanker

ENI-number

02327296

Call sign

PD3066

Flag

The Netherlands

Port of registry

Papendracht

GT

1.116 t

DWT

1.564 t

Length

81,20 m overall

78,30 m between perpendiculars

Breadth

10,15 m

Draught

3,05 m

Depth

4,68 m

Speed

Max.: 14,4 knots

Service: 11,3 knots

Built

2005

Builder casco

Veramar Group
Chvalatice

Czech Republic

Builder completion

Bijlsma Veka
Lemmer
The Netherlans

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MTU DDC 8 V 4000 M 60 - 4 stroke 8 cylinder 1.200 kW / 1.630 hp at 1.800 rpm

Built: 2005

Builder: MTU Friedrichshafen GmbH, Friedrichshafen - Germany

Gearbox

ZFW4400 reduction 5,542:1

Propellers

1x Screw propeller solid

5 blades diameter 1.650 mm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

1x Diesel generatorset 144 kVA - 115 kW - 143 hp
1x Diesel generatorset 72 kVA - 58 kW - 95 hp
1x Diesel generatorset 520 kVA - 416 kW - 405 hp

Bow thruster

1x John Deere - van Wijk 435 hp

Number of tanks

6

Tank capacity

1.850 m³

Cargo pumps

6x MarFex MDPD-80 deepwell 600 m³/h

Owner

Vof Haverkamp Tankvaart
Papendrecht
The Netherlands

Latest data adjustment

20 February 2014
