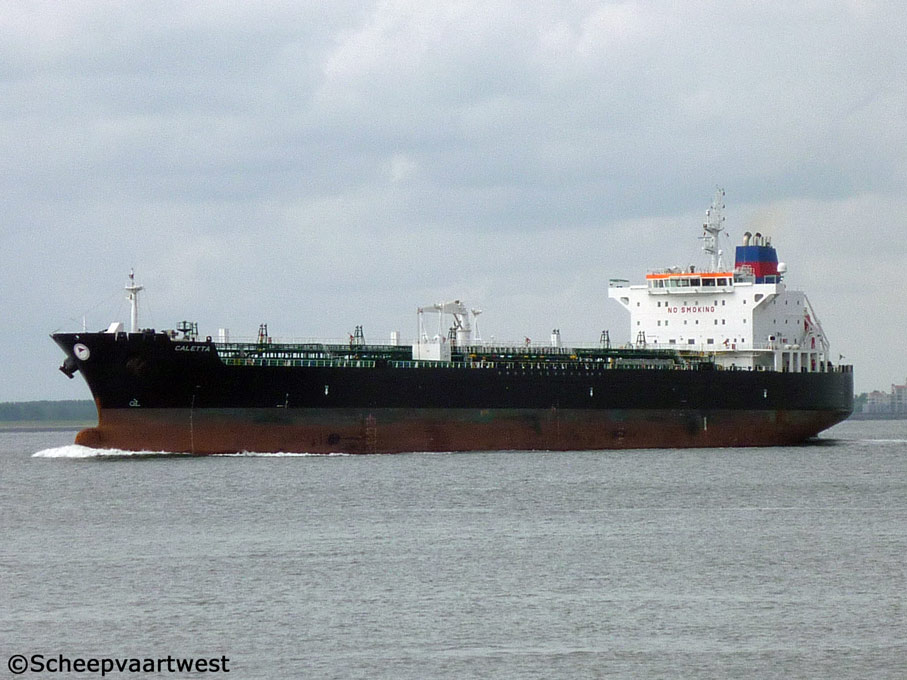

Caletta 01

Westerschelde 13 June 2012

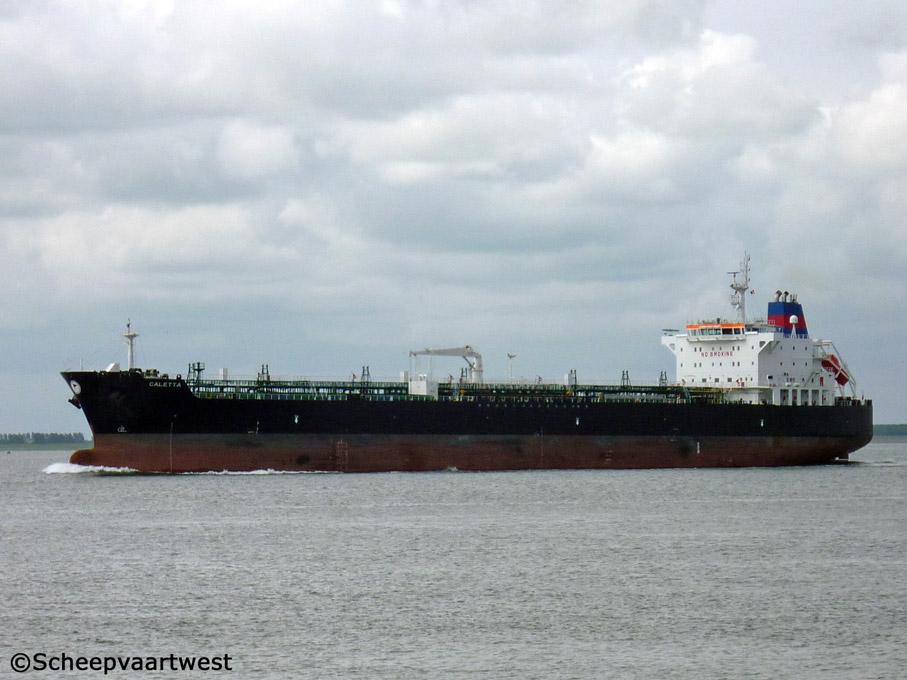

Caletta 04
Westerschelde 13/06/12


Name

CALETTA

Type

Oil / Chemical tanker

IMO-number

9472763

Call sign

ICNZ

Flag

Italy

Port of registry

Livorno

GT

29.700 t registered

DWT

Summer: 51.745 t

NT

14.072 t registered

Length

183,31 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Design: 11,00 m

Scantling: 13,30 m

Freeboard

5.812 mm

Depth

19,10 m moulded

Speed

15,4 knots

Built

2011

Keel laid

30.06.2010

Date of completion

04.01.2011

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Yard number

2197

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 12

Oil tight: 1

Main engine

1x MAN B&W -HYUNDAI 6S50MC-C7 - 2 stroke 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW / 10.690 hp at 127,0 rpm

Manufacturer: HHI Engine & Machinery Division

Propellers

1

Boilers

Fired boiler - Vertical fire tube - 9,0 bar

Unfired exhaust gas boiler

Generators

3x HFC7 506-84K main diesel generatorsets each 900 kW
Manufacturer: HHI Engine & Machinery Division

Number of cargo tanks

12 + 2 slop tanks

Total tank cargo capacity

55.352,45 m³ / 42.45.35 t

Slop tank

1.200 m³

Pumps

12x Framo submerged pumps

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Sludge: 4

Diesel oil: 4

Fresh water: 3

Chain: 2

Hydraulic oil: 1

Fixed ballast liquid: 1

Waste water: 1

Tank capacities

Diesel Oil: 195,1 m³ / 175,59 t

Freshwater: 251,8 m³

Fuel Oil: 1.457,9 m³ / 1.443.32 t

Hydraulic Oil: 17,9 m³ / 16,11 t

Lube Oil: 113,5 m³ / 102,15 t

Tank Ballast: 22.437,8 m³ / 22.998,7 t

Manager

D'alesio Gruppo
Via Castelli, 6
57122 Livorno

Italy

Operator

Dalmare S.P.A.

Owner

Dalmare Spa.
Livorno
Italy

Last data update

04 February 2014
