| Antwerpen 30 October 2013 |
 |
 |
 |
 |
 |
 |
|||||

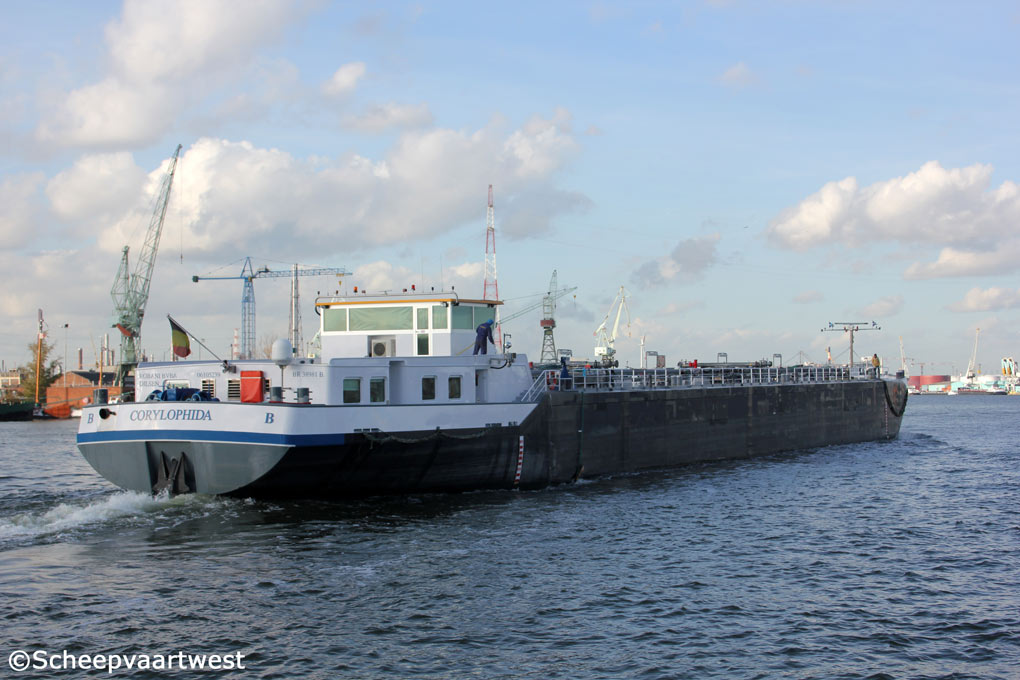

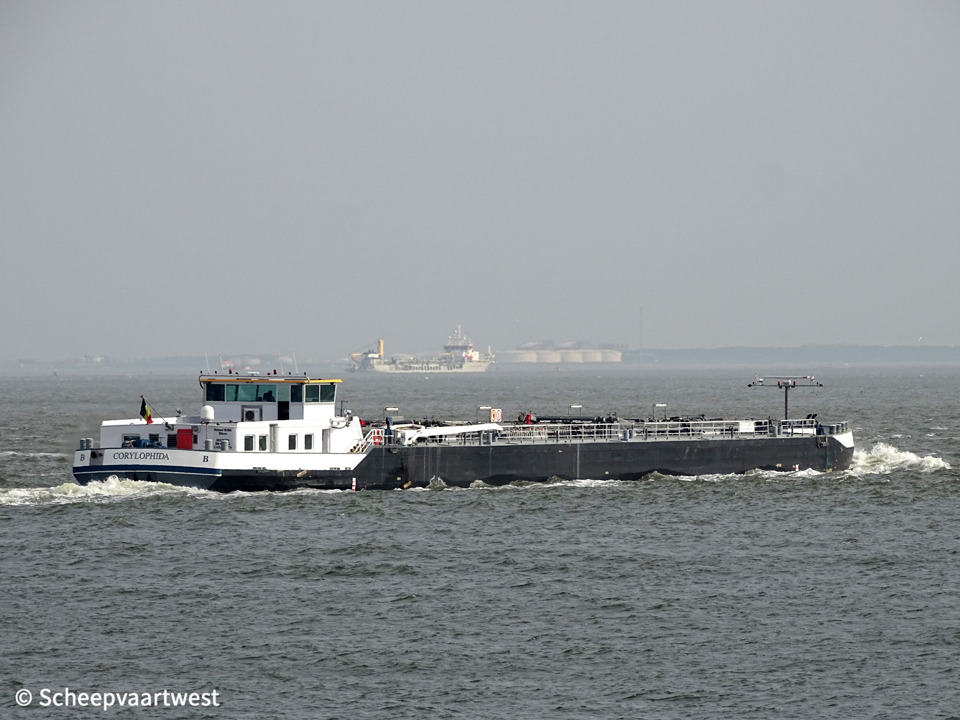

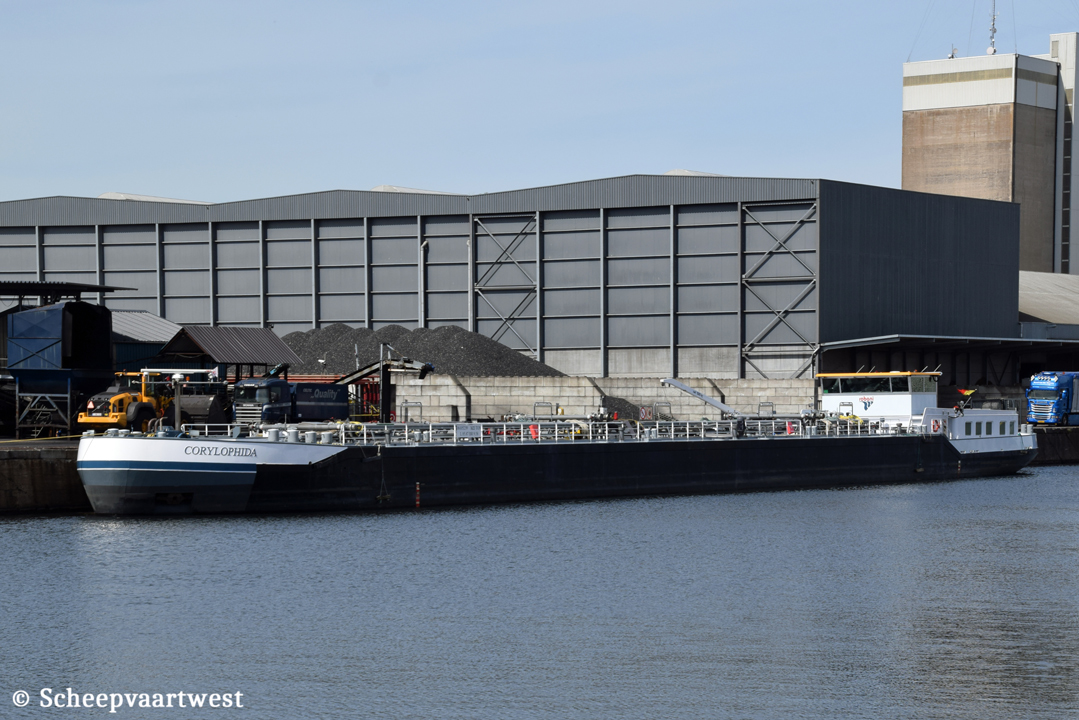

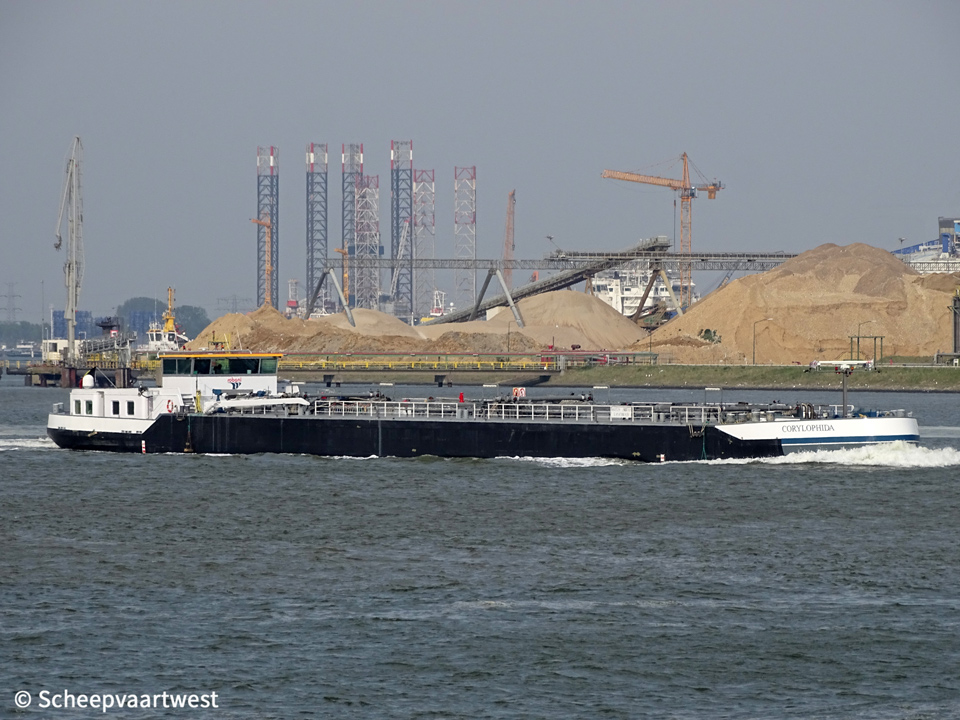

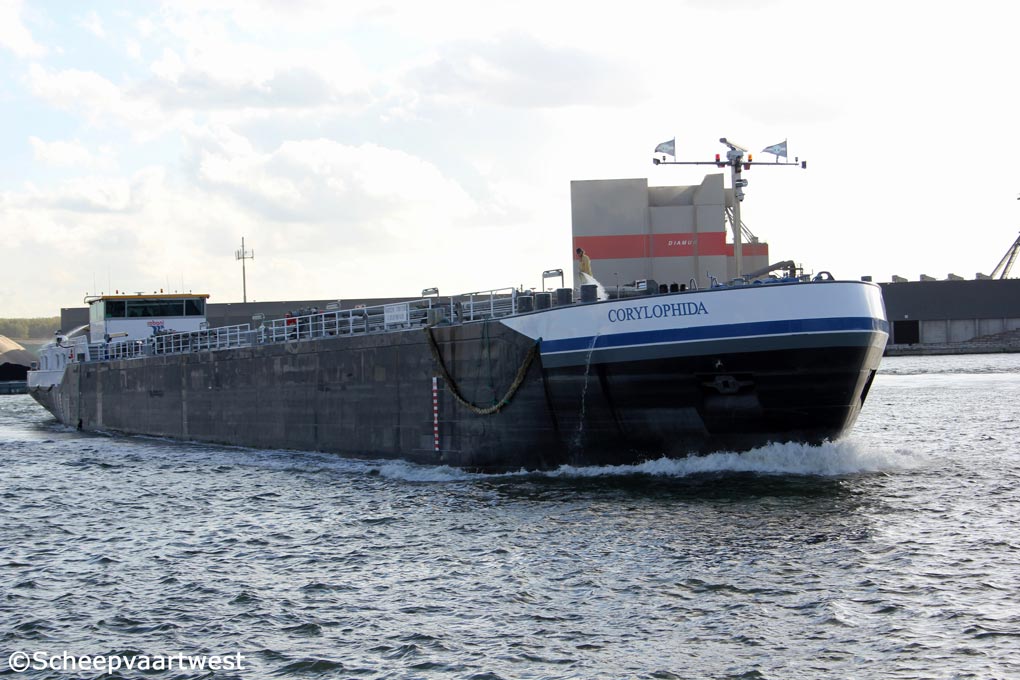

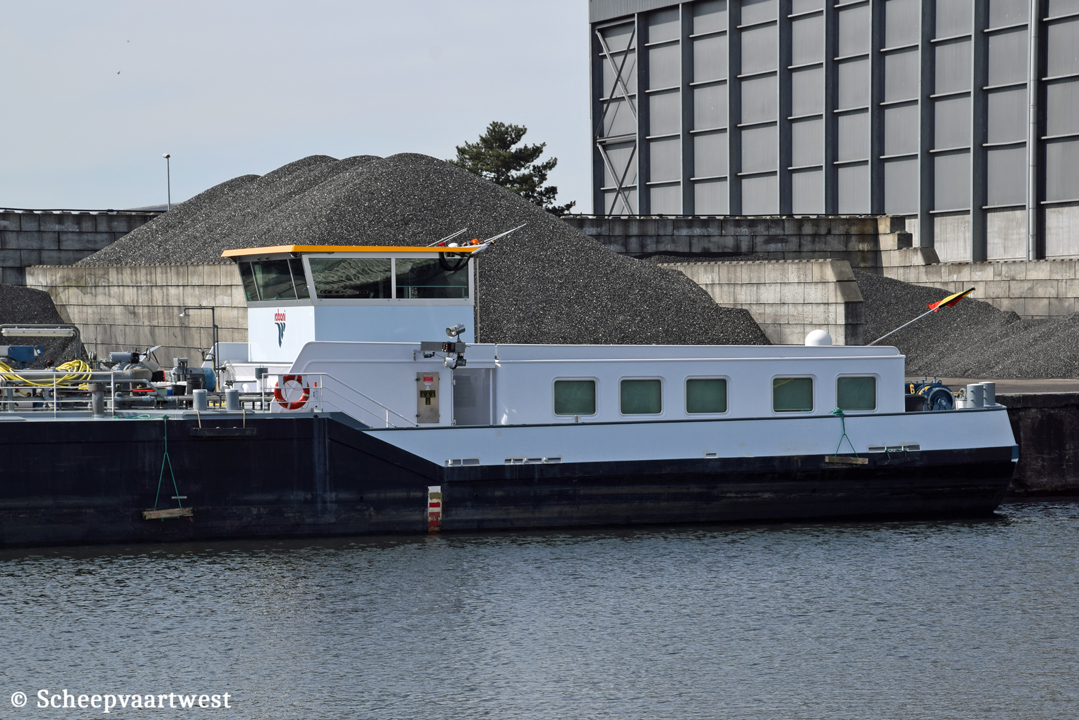

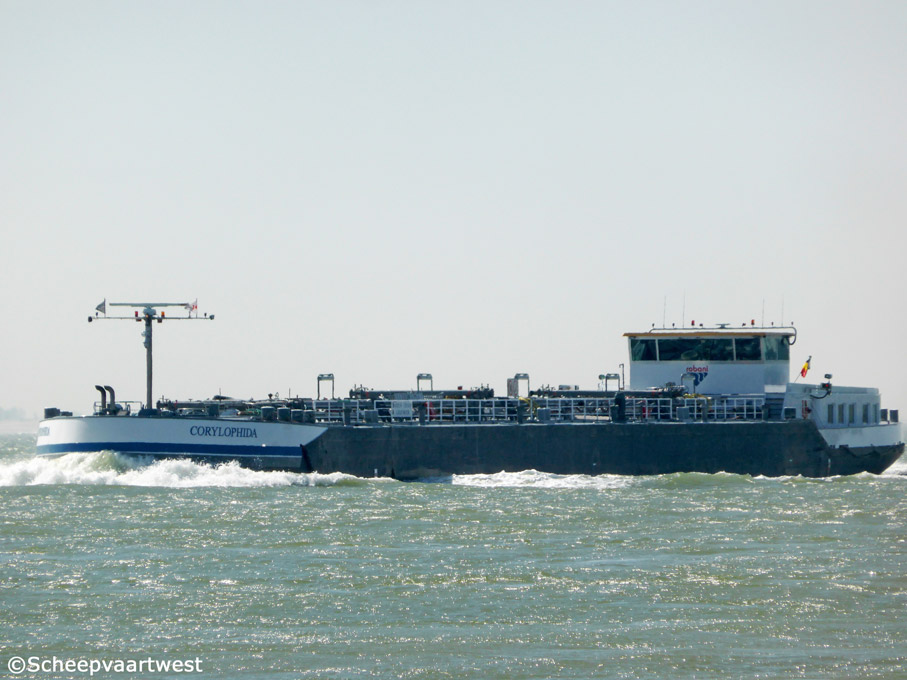

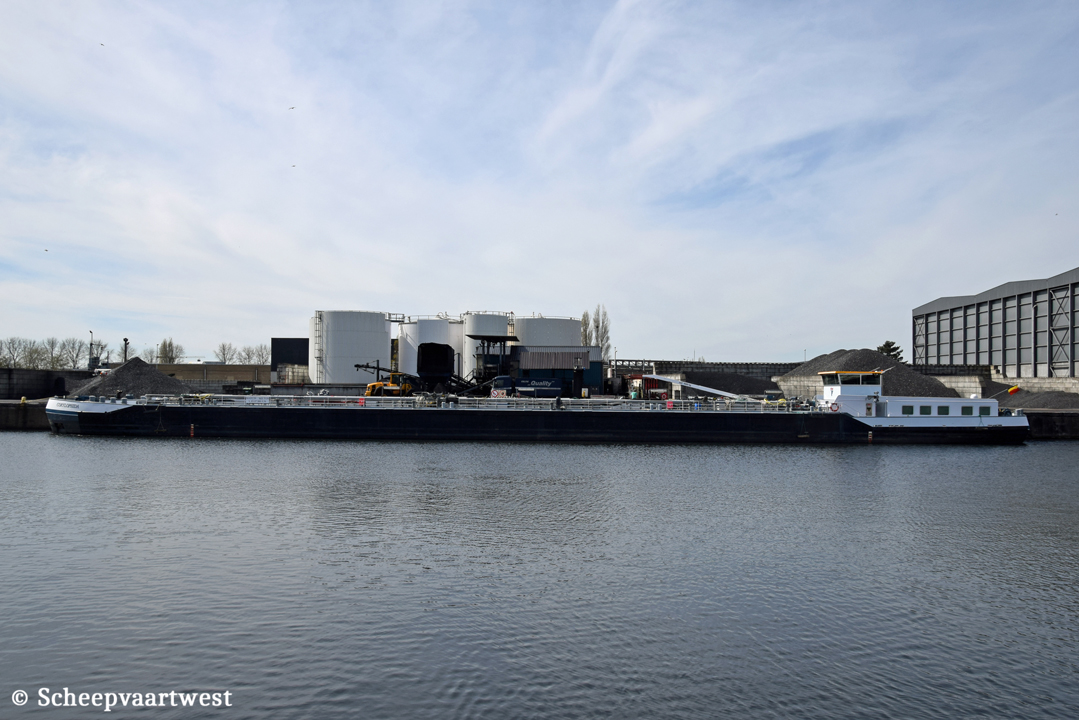

| Antwerpen 30/10/13 | Brugge, Belgium 11/04/22 | Brugge, Belgium 11/04/22 | Brugge, Belgium 11/04/22 | Westerschelde 14/04/15 | Westerschelde 23/04/19 | |||||
 |
||||||||||
| Westerschelde 23/04/19 | ||||||||||
|
Name |
CORYLOPHIDA |
|
Type |
Chemical tanker, Inland waterway |
|
ENI-number |
06105239 |
|
Call sign |
OT5039 |
|
Flag |
Belgium |
|
Port of registry |
Dilsen |
|
Tonnage |
1.709 t |
|
Length |
85,87 m overall 82,66 m between perpendiculars |
|
Breadth |
9,56 m moulded |
|
Draught |
3,20 m |
|
Depth |
4,68 m moulded |
|
Built |
2011 |
|
Keel laid |
03/08/2009 |
|
Date of completion |
17/03/2011 |
|
Builder casco |
Turnu Severin Shipyard Severnav Romania Yard number: 1052 |
|
Builder completion |
Marintec Shipyard N.V. Boom Belgium |
|
Hull material |
Steel |
|
Number of decks |
1 |
|
Main engine |
1x Mitsubishi S12 R-C2MPTK - Combustion engine 940 kW / 1.278 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine type MM W5200 - reduction: 4,962:1 |
|
Propellers |
1x Propeller 5 bladed - Diameter: 1.650 mm |
|
Generators |
1x Scania DI12-70M diesel engine connected with Stamford HCM 434C1 generator 258 kVA / 203 kW 1x SisuDiesel 49DTG diesel engine connected with Stamford UCM 274 D1 generators 81 kVA / 65 kW 1x SisuDiesel 49DTG diesel engine connected with Stamford UCM 224 E1 generator 44 kVA / 35 kW |
|
Bow thruster |
1x Scania DI12-56A - Veth-Jet type 4-K-1000 - 390 hp at 2.000 rpm |
|
Number of tanks |
5 |
|
Cargo capacity 97% |
1.804 m³ |
|
Pumps |
1x Kampers 2C232/102XHE cargo pump 600 m³/h 1x Kampers 2M82/36LHE slob pump 15 m³/h 1x Ballast pump 400 m³/h |
|
Owner |
Robani Rederij BVBA Rietlaan 10 3650 Dilsen-Stokkem Belgium |
|
Last data update |
22 April 2022 |
