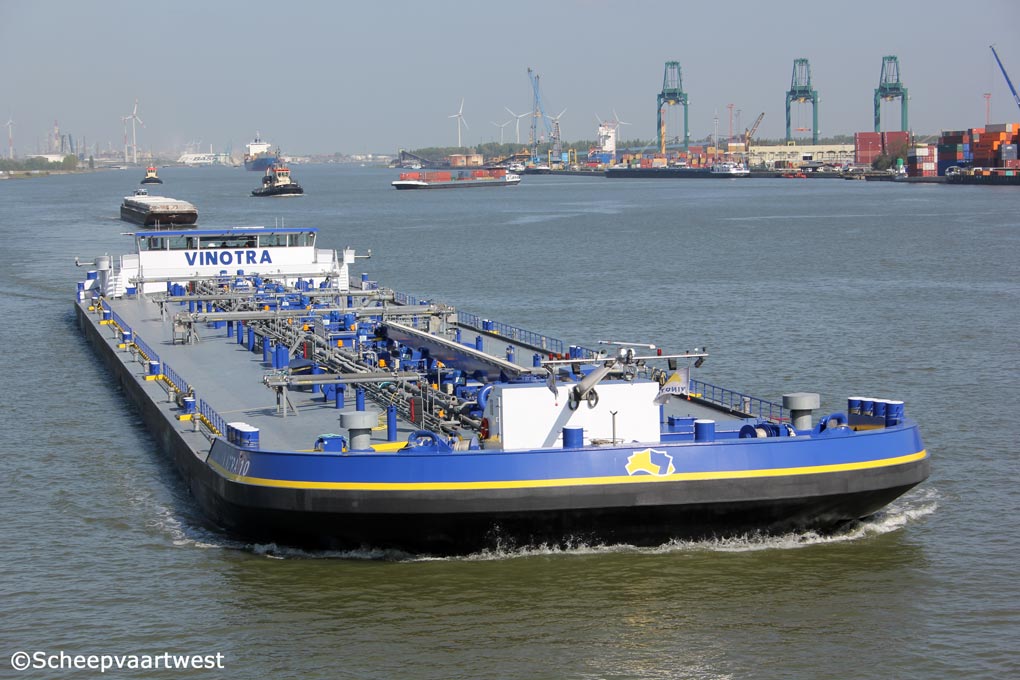

Vinotra 10 03

Antwerpen 16 April 2014

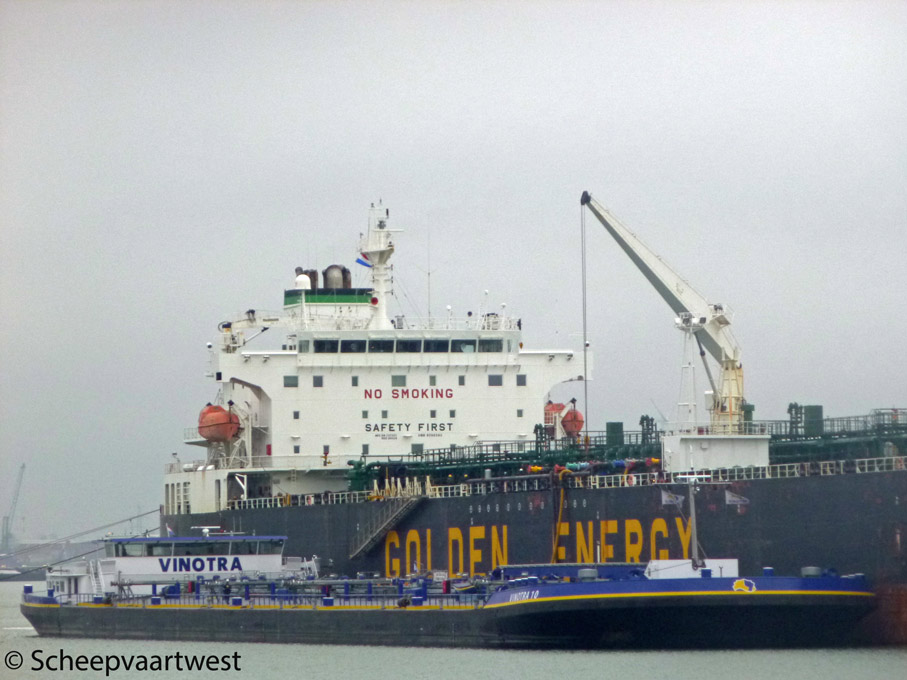

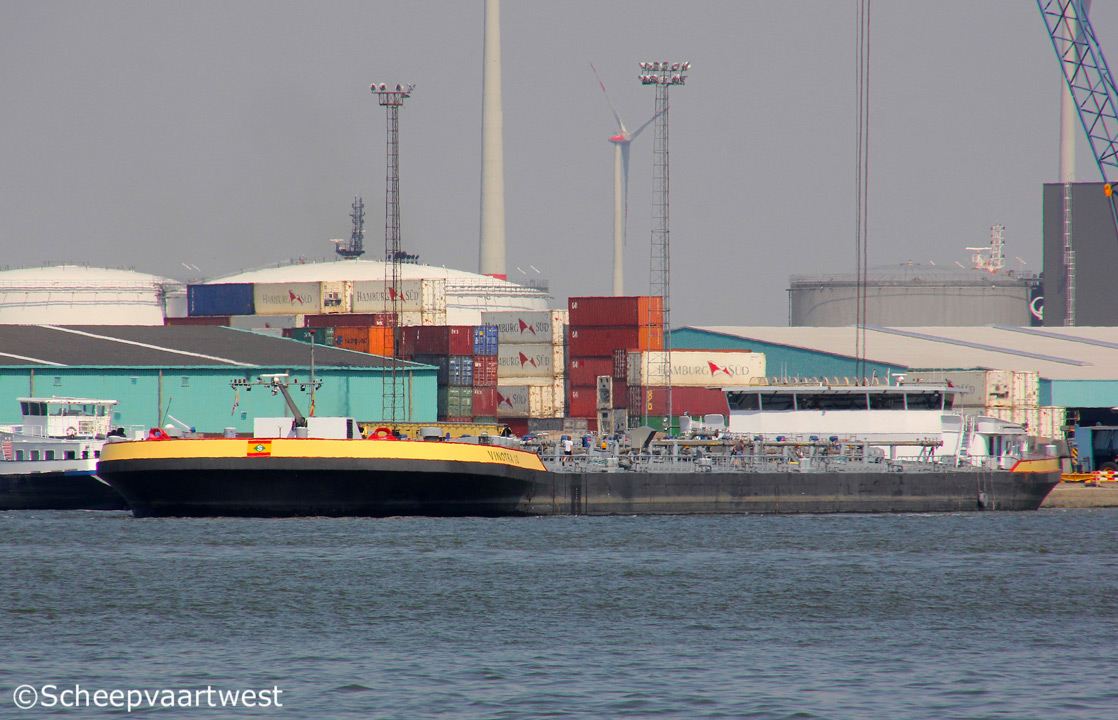

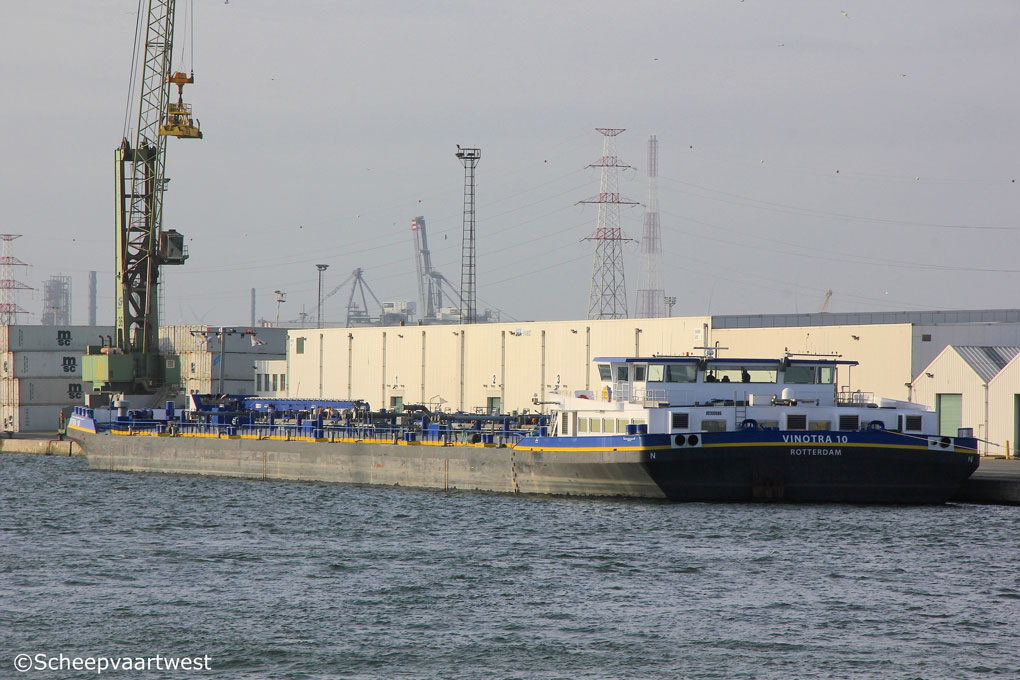

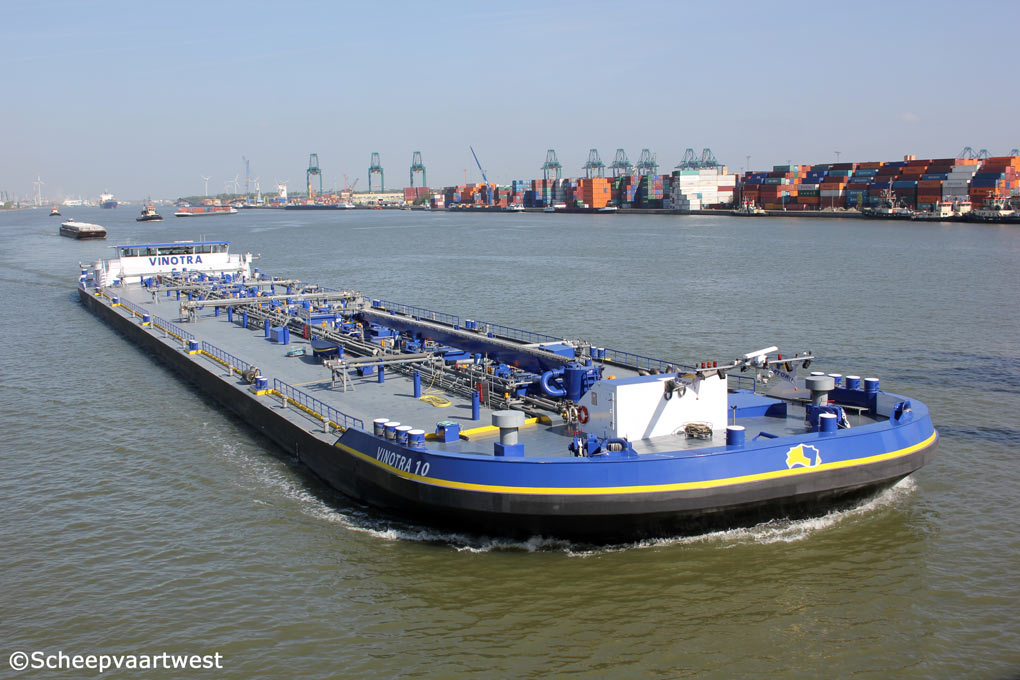

Vinotra 10 04    Vinotra 10 02   Vinotra 10 05   Vinotra 10 07
Antwerpen 16/04/14 Vlissingen 28/11/13 Antwerpen 27/12/15 Antwerpen 15/05/18

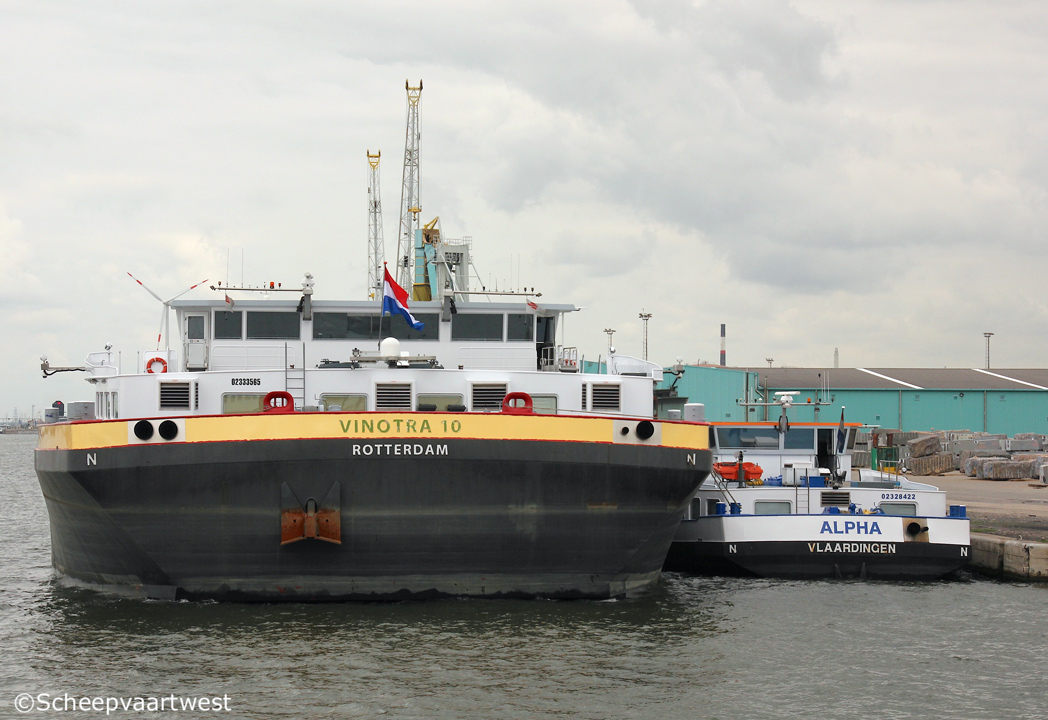

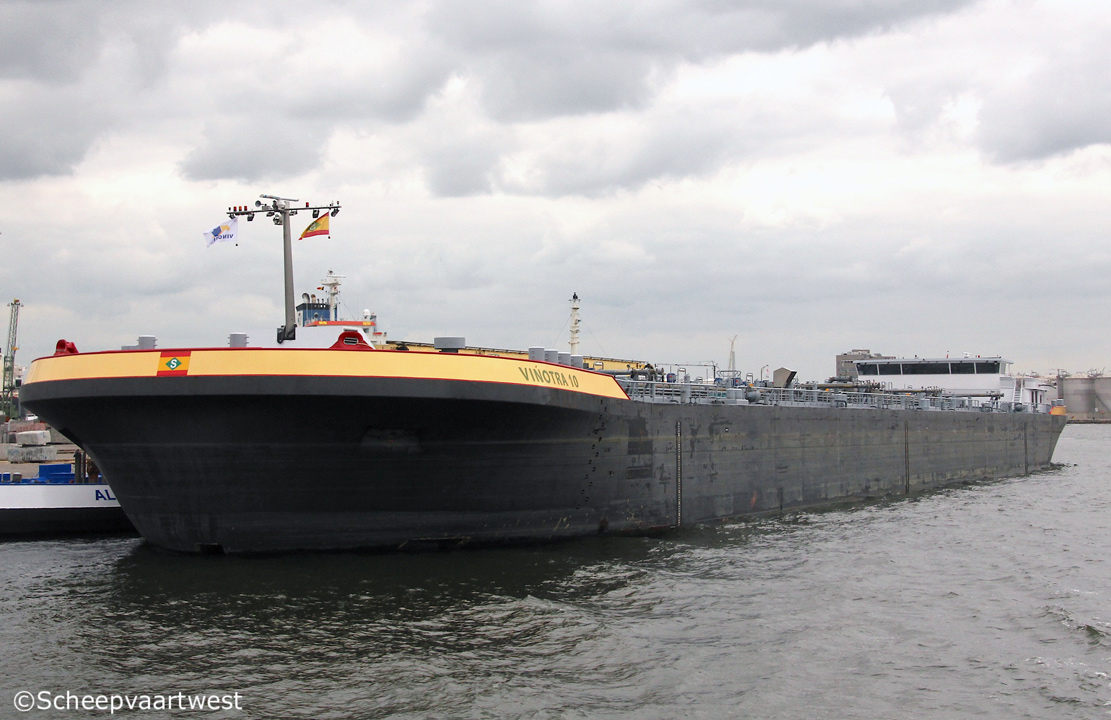

Vinotra 10 08   Vinotra 10 09
Antwerpen 28/08/18   Antwerpen 28/08/18



Name

VINOTRA 10

Type

Inland tanker

ENI-number

02333565

Call sign

PB9148

Flag

The Netherlands

Port of registry

Rotterdam

GT

5.657 t

Tonnage

11.571 t

Length

134,95 m overall

130,03 m between perpendiculars

Breadth

22,80 m

Draught

5,20 m

Depth

8,70 m

Built

2011

Date of completion

01.04.2011

Builder casco

Taizhou Kouan Shipbuilding
Taizhou
China

Builder completion

Smits Machinefabriek en Scheepsreparatie B.V
Capelle a/d IJssel
The netherlands

Yard number

GY301

Hull material

Steel

Hull type

Double hull

Watertight compartments

14

Main engine

3x ABC 6 MDZC - 4 stroke 6 cylinder diesel engines each 1.324 / 1.800 hp total 3.978 / 5.406 hp at 1.000 rpm

Built: 29.11.2010

Builder: Anglo Belgian Corporation N.V.

Wiedauwkaai 43
9000 Gent
Belgium

Gearbox

3x Masson Marine type MM W 18000, reduction: 3,407:1

Propellers

3x Solid propellers diameter: 1.800mm, 4-blades with 3 nuzzle type Van de Giessen Optima, diameter: 1.816 mm

Generators

3x Cummins QSK 19M engines each coupled with Marathon 573 RSL 4034 generator 660 kVA - 528 kW - 761 hp

2x Cummins QSB 7G engines each coupled with Marathon 431 PSL 6204 generator 140 kVA - 112 kW - 236 hp

Emergency generator

1x Diesel generatorset 35 kVA - 28 kW - 41 hp

Bow thruster

1x Cummins - Verhaar Omega-Jet31130S1400-4k - 441 kW / 600 hp at 1.780 rpm
1x Cummins - Verhaar Omega-Jet VBS1200SR- 441 kW / 600 hp at 1.780 rpm

Total tank capacity

12.880 m³

Pumps

16x MarFlex electrically driven Deepwell cargo pumps type MDPD-100 each 150 m³/h

2x MarFlex electrically driven Deepwell cargo pumps type MDPD-80 each 100 m³/h

2x MarFlex electrically driven Deepwell ballast pumps type MBDPC -200 each 300 m³/h

Fuel capacity

160 m³

Owner

European Barge Company
Rotterdam - Hoogvliet
The Netherlands

Latest data adjustment

07 December 2013
