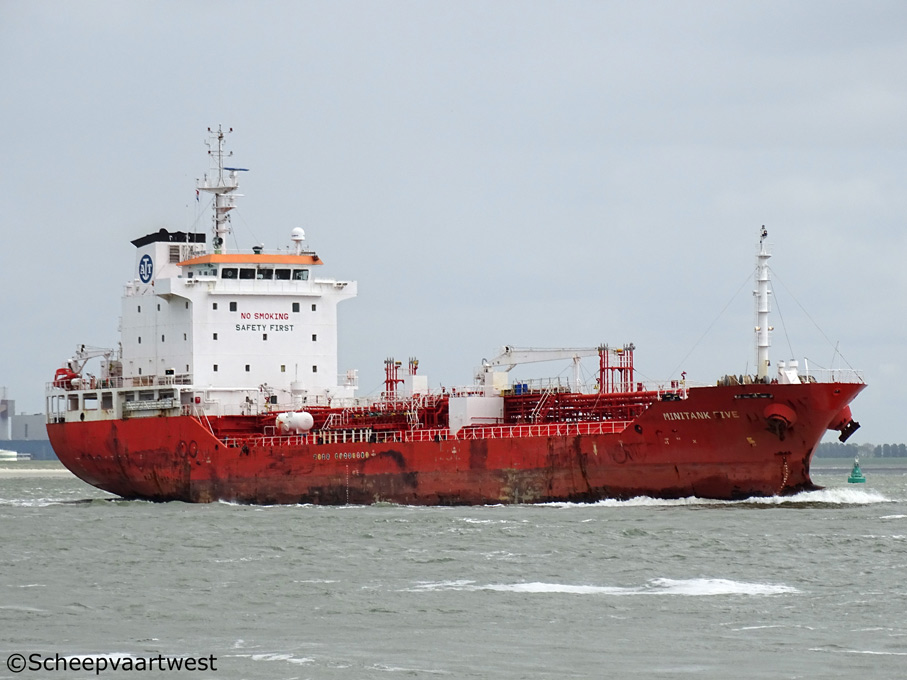

Minitank Five 10
Westerschelde 14 May 2016

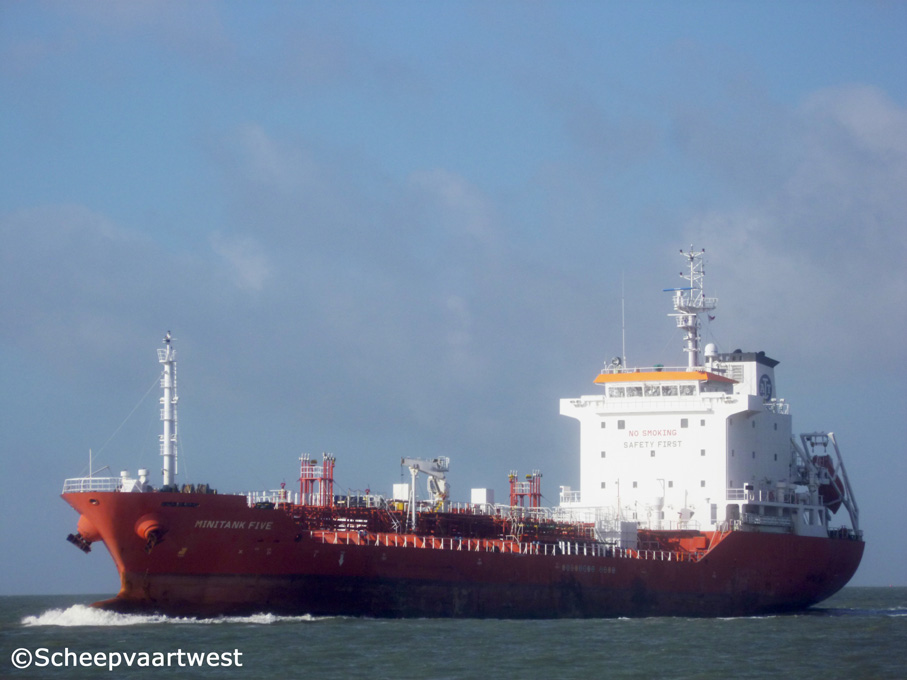

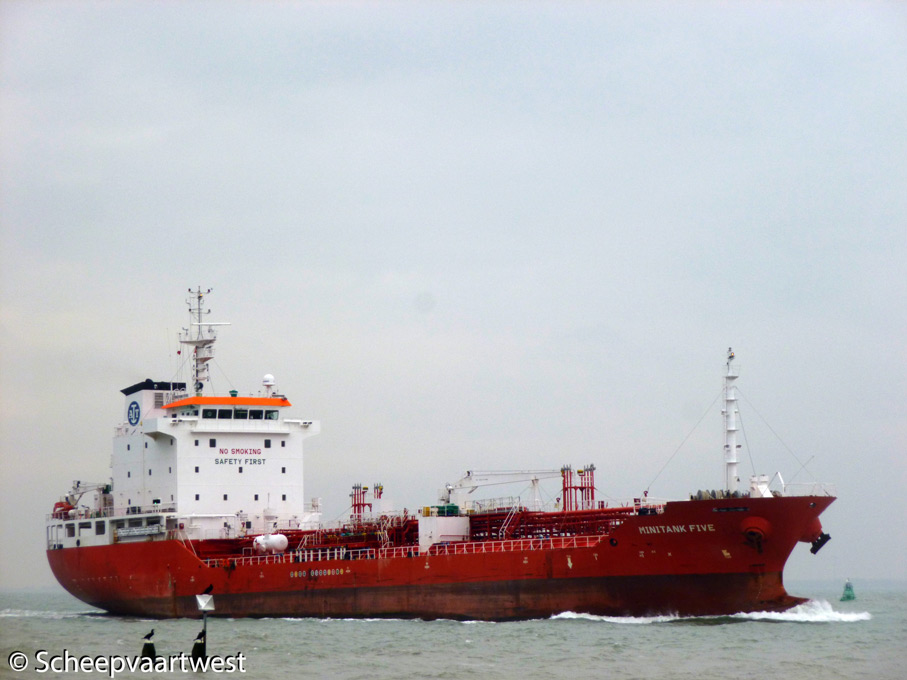

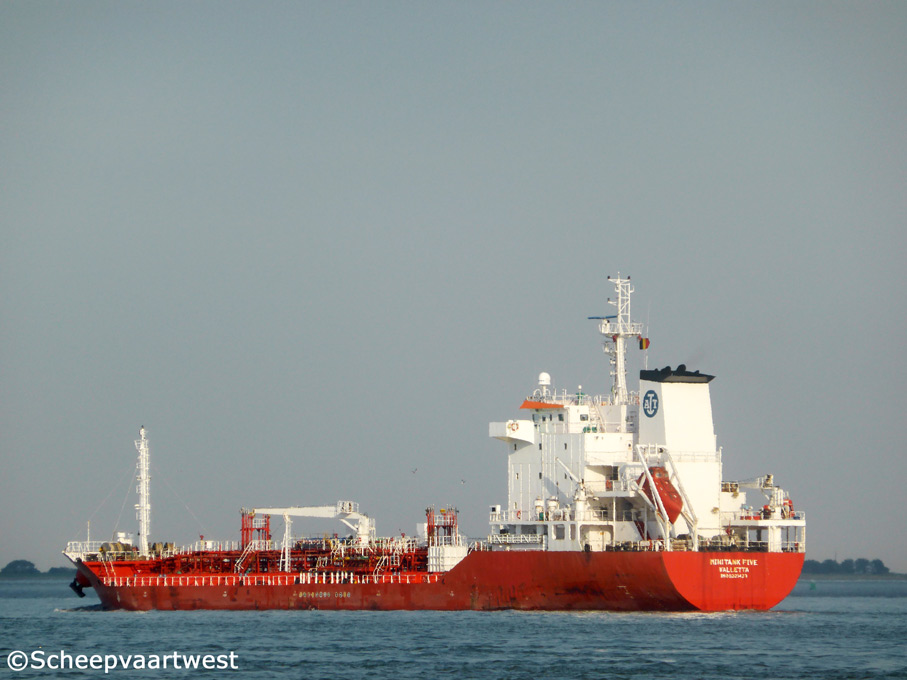

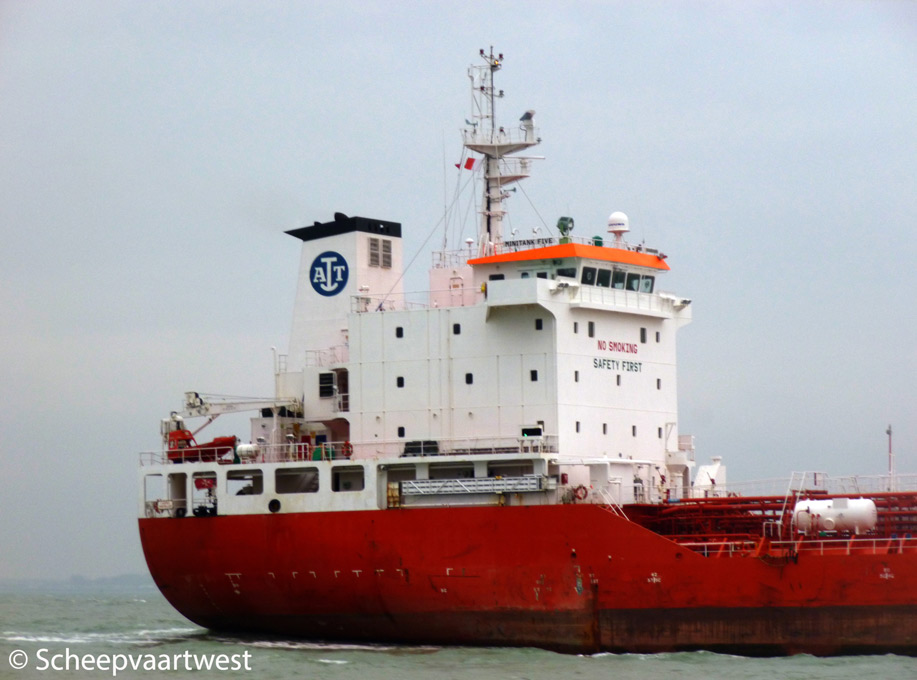

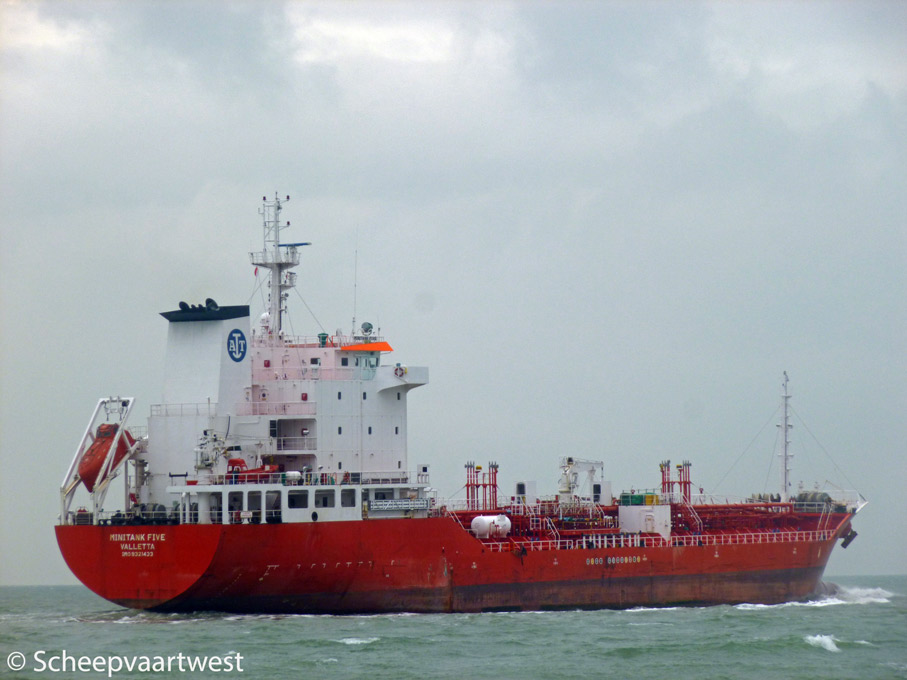

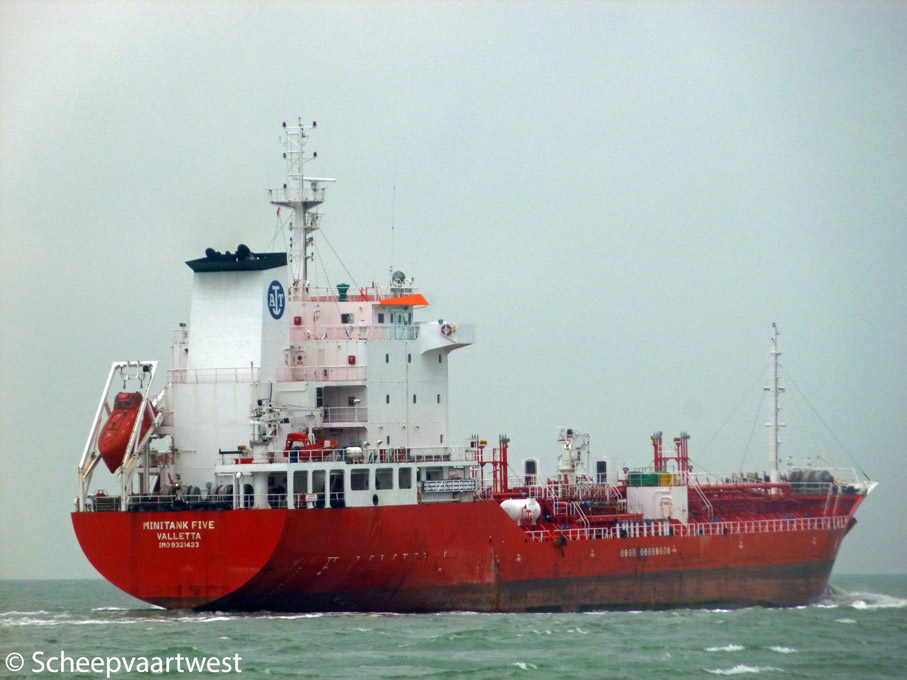

Minitank Five 01   Minitank Five 03   Minitank Five 04   Minitank Five 02   Minitank Five 06   Minitank Five 08
Westerschelde 29/11/13   Westerschelde 29/11/13   Westerschelde 29/11/13   Westerschelde 29/11/13   Westerschelde 18/07/14   Westerschelde 21/02/14


Name

MINITANK FIVE

Type

Oil and chemical carrier

IMO-number

9321433

Call sign

9HQB8

Flag

Republic of Malta

Port of registry

Valletta

GT

5.573 t registered

Suez: 6.005,78 t

DWT

Summer: 8.083,92 t

NT

2.511 t registered

Panama: 4.740 t

Suez: 4.409,97 t

Length

113,05 m overall

105,00 m between perpendiculars

Breadth

18,20 m moulded

Draught

Summer: 7,30 m

Freeboard

2.161 mm

Depth

9,60 m moulded

Speed

12,0 knots ballast

Built

2007

Keel laid

07.07.2006

Launch date

06.12.2006

Date of completion

16.03.2007

Builder

Nok Bong Shipbuilding Co., Ltd.
Geoje
South Korea

Yard number

NBS-0411

Hull material

Ordinary strength steel

Hull type

Double hull

Bulkheads

Non tight: 1

Water tight: 6

Oil tight: 12

Main engine

1x Wärtsilä 9R32LND - 9 cylinder 320 x 350 mm diesel engine - 3.375 kW / 4.590 hp at 750 rpm
Manufacturer: Wärtsilä Finland Oy.

Propellers

1

Manufacturer: Wartsila Propulsion Norway AS

Boilers

1x Auxiliary boiler Mission OM
1x Exhaust gas boiler Mission XW - 11,0 bar

Manufacturer: Aalborg Ind. A/S

Shaft generator

1x AVK DSU 74M1-4 - 900 kW

Manufacturer: Newage AVK Romania SA

Generators

3x Main generators Taiyo FE540L-6 each 600 kW
Manufacturer: Taiyo Electric Co.

Number of cargo tanks

10

Total cargo capacity

98%: 8.945,59 m³

100%: 8.566,55 m³ / 8.395,22 t

Cargo pumps

10x Pumps each 200 m³/h

2x Pumps each 100 m³/h

Number of tanks

Ballast: 11

Fuel oil: 8

Lubricating oil: 8

Fresh water: 5

Diesel oil: 4

Waste water: 3

Sludge: 2

Chain: 2

Slop: 2

Tank capacities 100%

Diesel Oil: 105 m³ / 890.31 t

Freshwater: 405,80 m³

Fuel Oil: 555,34 m³/ 544.23 t

Lube Oil: 56,09 / 50.48 t

Tank Ballast: 3.138,37 m³ / 3.216,83 t

Lifting equipment

1x Engine room overhead crane - SWL 2,0 t

Manufacturer: Daekyung Co., Ltd.

1x Hose handling crane SK-EH-HH-D0513 - SWL 5,0 t

1x Stern hose/Rescue boat/Life raft handling crane - Single Arm slewing Type - SWL 2,0 t

Manufacturer: Sekwang Marine Machineries Co., Ltd.

Manager

Ancora Investment
Athens
Greece

Operator

Ancora Investment Trust Incorporation
3A Artemisiou & Themidos Street
Glyfada
Athens, 166 75
Greece

Registered owner

Mini Tank Five Limited

Renamed

10.2006 Mary A

Italy, Catania - Call sign: IBPM

Owner: Marittima Etnea srl, Parma - italy

Last update

15 November 2017
