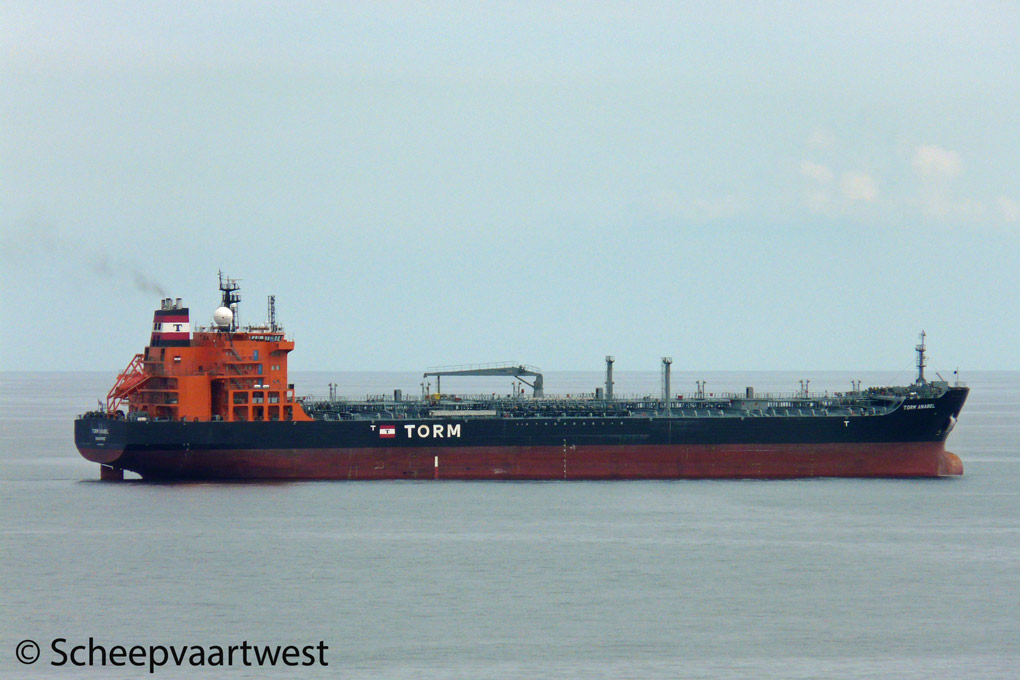

Torm Anabel 01
Cascais - Portugal 10 June 2013



Name

TORM ANABEL

Type

Tanker for oil and chemicals

IMO-number

9543550

Call sign

9V9637

Flag

Republic of Singapore

Previous flags

Denmark

Port of registry

Singapore City

GT

30.241 t

DWT

49.999 t

NT

14.585 t

Length

183,30 m overall

176,00 m between perpendiculars

Breadth

32,33 m extreme

Draught

12,55 m

Keel to masthead

46,70 m

Freeboard

Summer: 5.663 mm

Winter: 5.934 mm

Tropical: 5.350 mm

Depth

18,20 m moulded

Speed

13,8 knots

Built

2012

Keel laid

08.06.2011

Launch date

25.09.2011

Date of completion

09.03.2012

Builder

Guangzhou Shipyard International Co., Ltd.
No. 40 Fang Cun Road South
510382 Guangzhou
China

Yard number

08130006

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/Dalian 6S50MC-C - 6 cylinder diesel engine - 9.480 kW

Propellers

1

Boilers

Auxiliary boiler, vertical shell type - Mission OL

Auxiliary boiler, composite - Mission OC

Builder: Aalborg Industries, Aalborg - Denmark

Generators

3x MAN 6L23/30H main diesel generatorsets

Builder: MAN Diesel & Turbo SE

Emergency generator

1x Sisu 645 DSBAG

Builder: Agco Sisu Power Inc.

Cargo tank capacity

Seg#1: 6.988,721 m³ (1P,1S)
Seg#2: 9.804,813 m³ (2P.2S)
Seg#3: 8.673,376 m³ (3P,3S)
Seg#4: 8.673,376 m³ (4P,4S)
Seg#5: 8.673,376 m³ (5P,5S)
Seg#6: 8.658,727 m³ (6P,6S)
Seg#7: 5.171,470 m³ (Slop (P) & Slop (S))

Total tank capacity 98%

51.472,389 m³

Slop tank capacity 98%

5.171,469 m³

Maximum loading rate

4.156 m³/h

Pumps

Cargo:

8x Centrifugal deepwell each 550 m³/h

4x Centrifugal deepwell each 550 m³/h

2x Centrifugal deepwell each 300 m³/h

1x Centrifugal deepwell - 50 m³/h

Ballast:

2x Centrifugal each 1.000 m³/h

Manifolds

Bow to centre manifold: 90,00m

Stern to centre manifold: 93,20 m

Distance bridge front to centre of manifold: 60,20 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 760 mm

Distance main deck to centre of manifold: 2.100 mm

Water ballast

22.079,63 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Lifting equipment

1x Cranes: SWL 10,0 t - Outreach 5,90 m

Manager

Torm Shipping India Pvt., Ltd.
2nd Floor, Leela Bussiness Park Andheri-Kurla Road Andheri -East
Mumbai
India

Operator

Torm A/S
Tuborg Havnevej 18
DK-2900 Hellerup
Denmark

Registered owner

VesselCo 4 Pte. Ltd
c/o Torm Singapore Pte. Ltd.
6 Battery Road # 27-02
Singapore City
Republic of Singapore

Last update

23 June 2013
