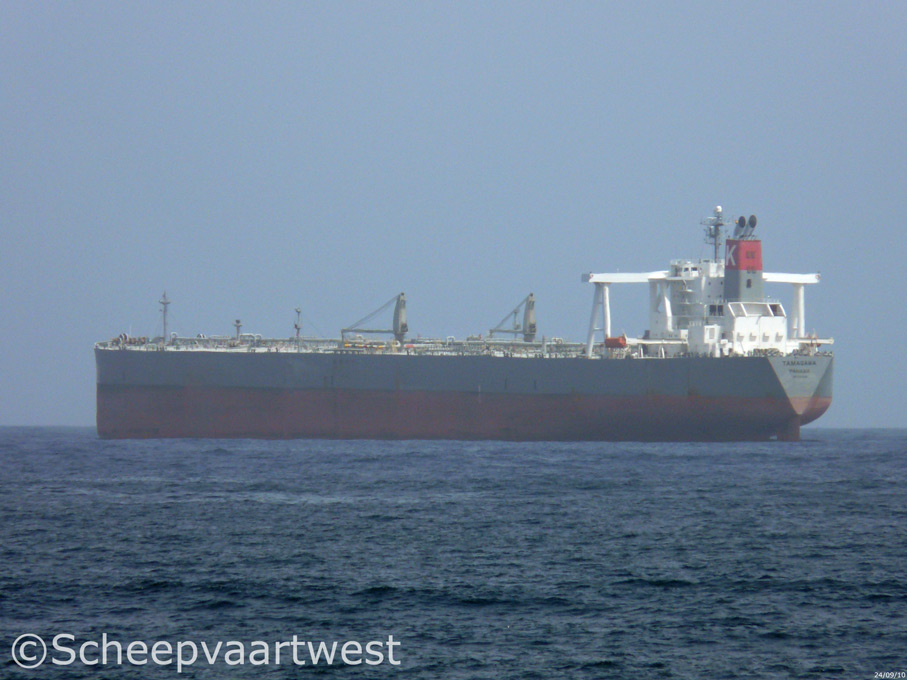

Tamagawa - IMO 9313149

Name

TAMAGAWA

Type

Oil Carrier

VLCC: Very Large Crude Carrier

ULCC: Ultra Large Crude Carrier

IMO-number

9313149

Call sign

3EKV8

Flag

Republic of Panama

Port of registry

Panama City

GT

160.231 t registered

Suez: 161.013,49 t

DWT

314.470 t

NT

103.096 t registered

Suez: 153.020,33 t

Length

333, 00 m overall

324,00 m between perpendiculars

Breadth

60,00 m moulded

Depth

29,0 m moulded

Built

2007

Keel laid

24.12.2004

Launch date

25.04.2007

Date of completion

29.06.2007

Builder

Kawasaki Heavy Industries (Kawasaki Shipbuilding Corporation)
Kobe
Japan

Yard number

1573

Hull material

High strength steel & Cast steel & Forged steel & Ordinary strength steel

Hull type

Double hull oil carrier

Bulkheads

Water tight: 10

Oil tight: 14

Main engine

1x Kawasaki-MAN B&W 7S80MC - 7 cylinder 800 x 3.200 mm diesel engine - 27.160 kW at 76 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller

1

Manufacturer: Nakashima Propeller Co., Ltd.

Steam piping system

2x Auxiliary boiler Mission TM OM

Heating surface: 410,60 mm²

Manufacturer: Aalborg Industries LTD.

Generators

3x Diesel generatorsets Taiyo FE 553A-8 each 1.325 kW

Manufacturer: Taiyo Electric Co., Ltd.

Number of tanks

Cargo oil: 17

Ballast: 13

Fuel oil: 9

Lubricating oil: 6

Fresh water: 4

Diesel oil: 3

Chain: 2

Sludge: 2

Waste water: 1

Tank capacities

Cargo oil: 351.633,30 m³ / 344.600,63 t

Diesel oil: 683,40 m³ / 615,06 t

Fresh water: 843,90 m³

Fuel oil: 7566,60 m³ / 7415,26 t

Lube oil: 535,80 m³ / 482,22 t

Ballast capacity: 104.845,20 m³ / 107.466,63 t

Lifting equipment

1x Traveling jib crane - SWL 8,0 t

Manufacture: Kawaju Marine Engineering Co., Ltd.

1x Engine room crane - SWL 10,0 t

2x Hose handling crane - SWL 20,0 t each (port size & stbd)

Manufacture: Kyoritsu Kikai Co., Ltd.

Operator

Kawasaki Kisen Kaisha , Ltd.
Hibiya Central BLDG.
2-9 Nishi-Shinbashi 1-Chome
Minato-KU
Tokyo
Japan

Owner

Kawasaki Kisen Kaisha , Ltd.
Hibiya Central BLDG.
2-9 Nishi-Shinbashi 1-Chome
Minato-KU
Tokyo
Japan

Registered owner

KAW 1573 Shipping S.A.

Republic of Panama
