| Westerschelde 09 November 2015 |
 |
 |
 |
 |
|||

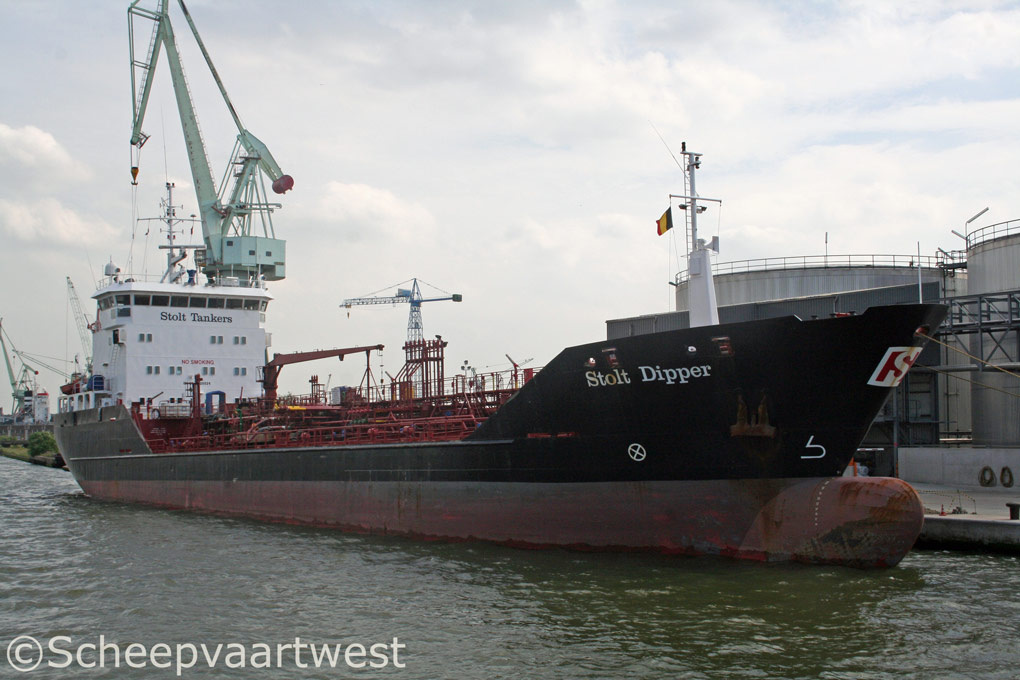

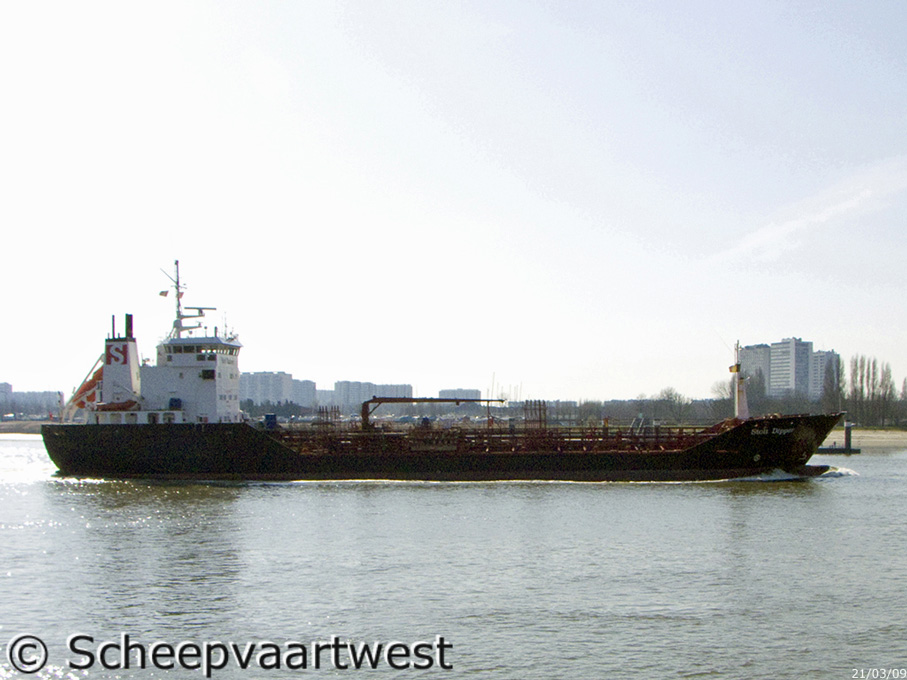

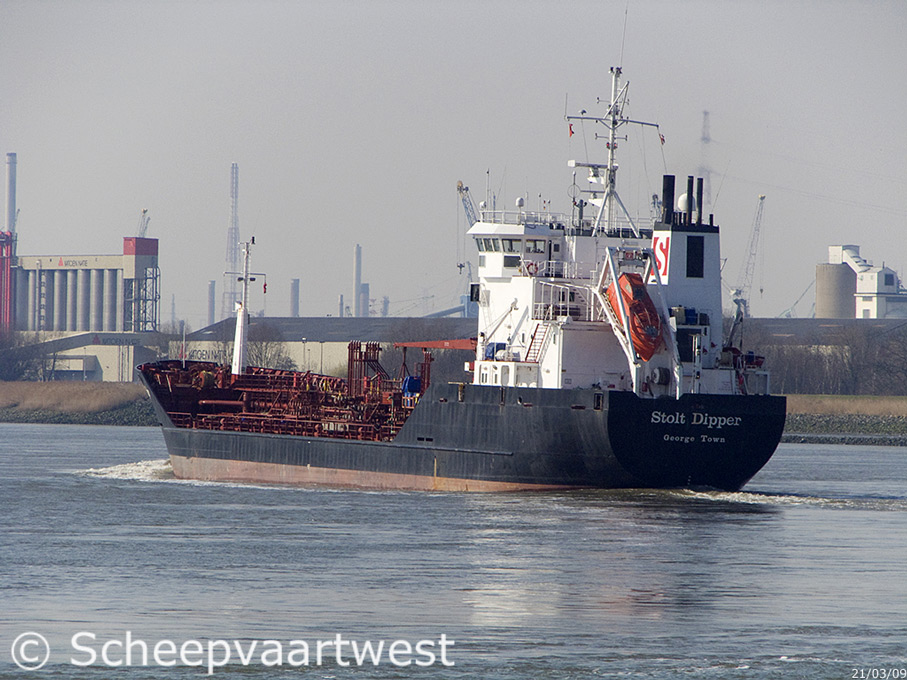

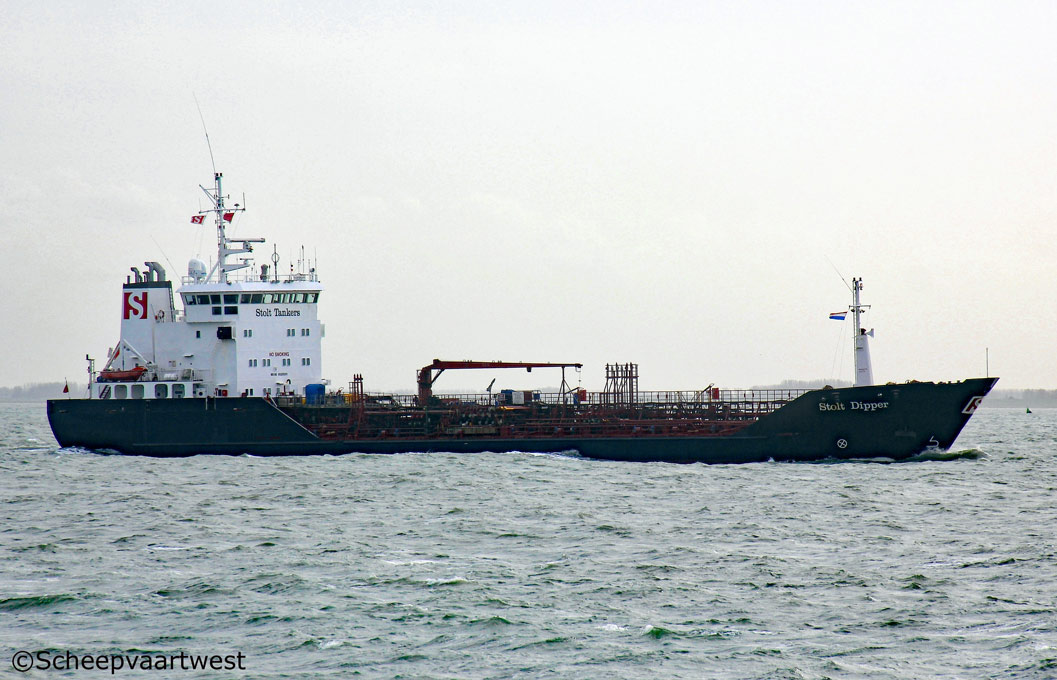

| Westerschelde 09/11/15 | Antwerpen 21/03/2009 | Antwerpen 21/03/09 | Antwerpen 20/05/11 | |||
|
Name |
STOLT DIPPER |
|
Previous names |
1992 - 04/1994 Stolt Margit Terkol 04/1994 - 02/1996 Margit Terkol 02/1996 - 2016 Stolt Dipper |
|
Type |
Oil products tanker - Chemical tanker |
|
IMO-number |
8920531 |
|
Call sign |
ZCMY3 |
|
Flag |
Cayman Islands |
|
Previous flags |
1992 - 02/1996 Denmark 02/1996 - 02/1998 Norway |
|
Port of registry |
George Town |
|
GT |
3.206 t |
|
DWT |
Summer: 4.794 t |
|
NT |
1.356 t |
|
Length |
96,35 m overall 88,25 m between perpendiculars |
|
Breadth |
15,10 m over all |
|
Draught |
Summer: 6,20 m |
|
Bow to bridge |
74,20 m |
|
Keel To Masthead |
31,40 m |
|
Freeboard |
Summer: 1.558 mm |
|
Depth |
8,05 m |
|
Speed |
Max: 13,2 knots Service: 13,3 knots |
|
Loadline |
Deadweight (normal ballast): 2.120 t Deadweight (tropical): 4.738 t Deadweight (winter): 4.738 t Displacement (lightship): 1.826 t Displacement (normal ballast): 3.946 t Displacement (summer): 6.564 t Displacement (tropical): 6.564 t Displacement (winter): 6.564 t Draft (lightship): 1,98 m Draft (normal ballast): 4,00 m Draft (summer): 6,20 m Draft (tropical): 6,20 m Draft (winter): 6,20 Draught aft (normal ballast): 5,00 m Draught fore (normal ballast): 3,00 m Freeboard (lightship): 5.785 mm Freeboard (normal ballast): 3.769 mm Freeboard (summer): 1.558 mm Freeboard (tropical): 1.558 mm Freeboard (winter): 1.558 mm FWA (summer draft): 133 mm TPC Immersion (summer draft): 12,35 t |
|
Built |
1992 |
|
Keel laid |
19/09/1991 |
|
Launch date |
01/03/1992 |
|
Date of completion |
10/04/1992 |
|
Builder |
Aarhus Flytedokk & Maskinkomp Shipyard |
|
Yard number |
199 |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x Krupp MaK 9M453C - 4 stroke single acting 9 cylinder 320 x 420 mm combustion engine 2.999 kW / 4.077 hp at 600 rpm Builder: Krupp MaK Maschinenbau GmbH, Kiel - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft at 143 rpm |
|
Shaft generator |
1x 633 kW / 380Volt 50 Hz |
|
Generators |
3x MTU diesel generatorsets each 365 kW / 380Volt 50 Hz |
|
Bow thruster |
1x Controllable pitch thruster 331 kW / 450 bhp, forward |
|
Cargo tank capacity 98% |
Liquid: 4.653 m³ |
|
Slop tank capacity 98% |
200 m³ |
|
Pumps |
13x Cargo pumps each 150m³/h |
|
Tank capacities |
Ballast: 1.790 m³ Bunker: 371 t |
|
Crew size |
14 |
|
Manager |
Stolt Nielsen Transportation group BV |
|
Operator |
Stolt-Nielsen Inter-Europe Service (SNIES) |
|
Owner |
Stolt Dipper B.V. |
|
Renamed |
2016 - Republic of Panama, Panama City - Call sign: HP6679 Manager: Leli Shipping Corp Ltd., Tersaneler Bolgesi 2, Tuzla, 29, Istanbul - Turkey Owner: Leli Shipping Corp Ltd. |
|
Latest data adjustment |
04 May 2019 |
