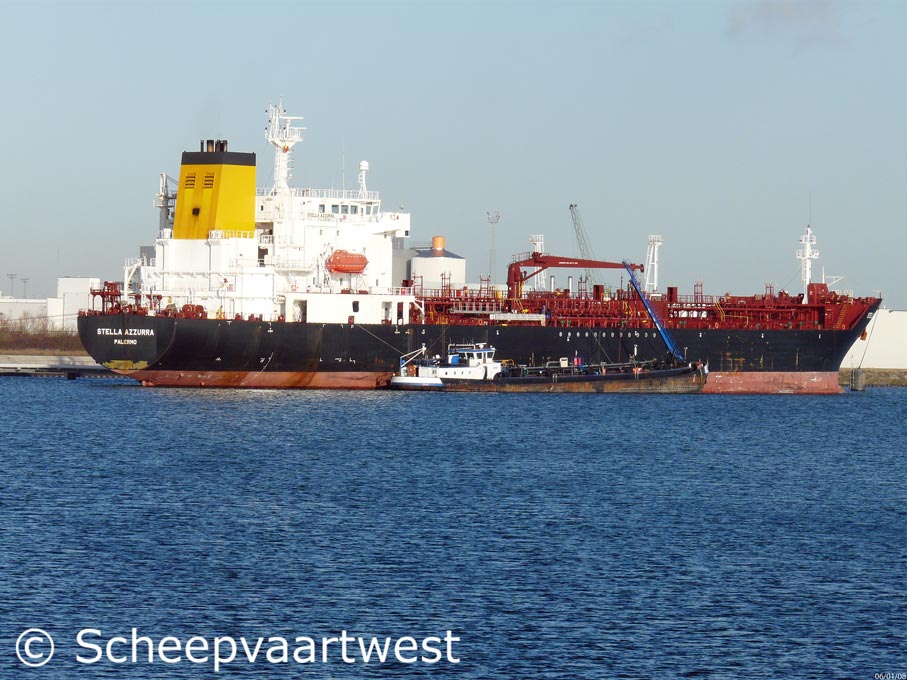

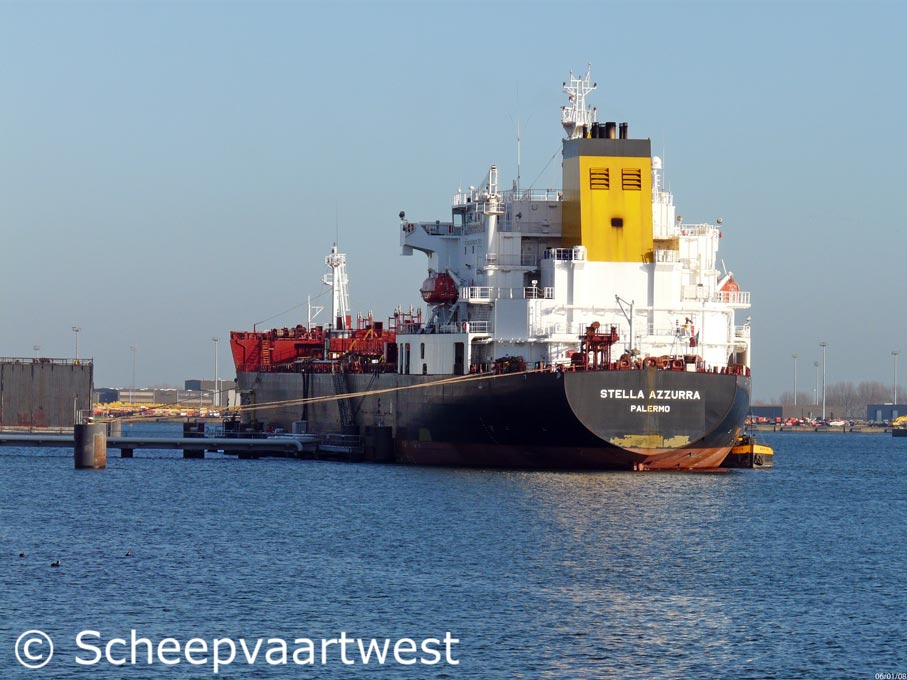

Stella Azzurra - IMO 9313424

Name

STELLA AZZURRA

Type

Tanker of oil and chemicals

Product carrier

Oil cargoes - Chemicals - Molasses - Vegetable oils - Caustic soda

IMO-number

9313424

Call sign

IBWC

Flag

Italy

Port of registry

Palermo

GT

19.549 t registered

Suez: 20.550 t

DWT

Summer: 29.006 t

NT

7.487 t registered

Suez: 17.500 t

Panama: 16.235 t

Length

164,50 m overall
156,00 m between perpendiculars

Breadth

27,60 m moulded

Draught

Summer: 10,52 m

Keel to top of mast

42,40 m

Freeboard

4.557 mm

Depth

15,90 m moulded

Speed

14,5 knots

Built

2005

Keel laid

21.02.2005

Launch date

26.05.2005

Date of completion

13.07.2005

Builder

STX Offshore & Shipbuilding Co., Ltd.
Chinhae
Pusan
Republic of Korea

Yard number

2001

Hull material

Steel

Hull type

Double hull

Bulkheads

1x Non tight

7x Water tight

10x Oil tight

Main engine

1x HSD MAN B&W 6S50MC-C X - 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW at 129 rpm

Manufacturer Name: STX Engine Co.,Ltd.

Number of screws

1

Manufacturer Name: Sil La Metal Co.

Steam piping system

1x Auxiliary boiler MB05S10 - 9,0 bar

Heating surface: 157,3 m²

1x Exhaust gas economizer EM11DD12A1 - 12,0 bar

Manufacturer name: Kang Rim Ind. Co.

Generators

3x Hyundai HFC6 506-14K diesel generatorsets each 740 kW

Manufacturer name: Hyundai Heavy Ind.

Tank capacity

Total capacity excl slops: 31.475,30 m³
Total capacity: 32.372,30 m³

Pumps

14x Each 450 m³/h at 130 m submerged centrifugal type
2x Each 200 m³/h at 130 m submerged centrifugal type
1x 70 m³/h at 70 m submerged centrifugal type
Portable emergency pump

Cargo handling

Coating: Phenolic Epoxy

Number of tanks

Cargo oil: 17

Ballast: 16

Lubricating oil: 9

Fuel oil: 8

Diesel oil: 5

Fresh water: 5

Chain: 2

Sludge: 2

Kerosene: 2

Waste water: 1

Potable water: 1

Hydraulic oil: 1

Tank capacities

Cargo Oil Capacity: 33.078,90 m³ / 32.417,322 t

Diesel Oil Capacity: 82,90 m³ / 74,61 t

Freshwater Capacity: 479,20 m³

Fuel Oil Capacity: 899,00 m³ / 881,02 t

Lube Oil Capacity: 108,00 m³ / 97,2 t

Tank Ballast Capacity: 16.697,60 m³ / 17.115,04 t

Slop tanks: 897,00 m³

Segregation

8 double valve

Derrick

Hydraulic crane - SWL 10,0 t

Charter

Motia Compagnia di Navigazione SpA
via Vespucci, 1
30174 Mestre Venezia
Italy

Owner

Motia Compagnia Di Navigazione S.P.A.
Palermo
Italy

Renamed

04.06.2009

Anwaar Aj Khalij
