| Merksem 27 April 2012 |
 |
| Antwerpen 16/04/14 |
|
Name |

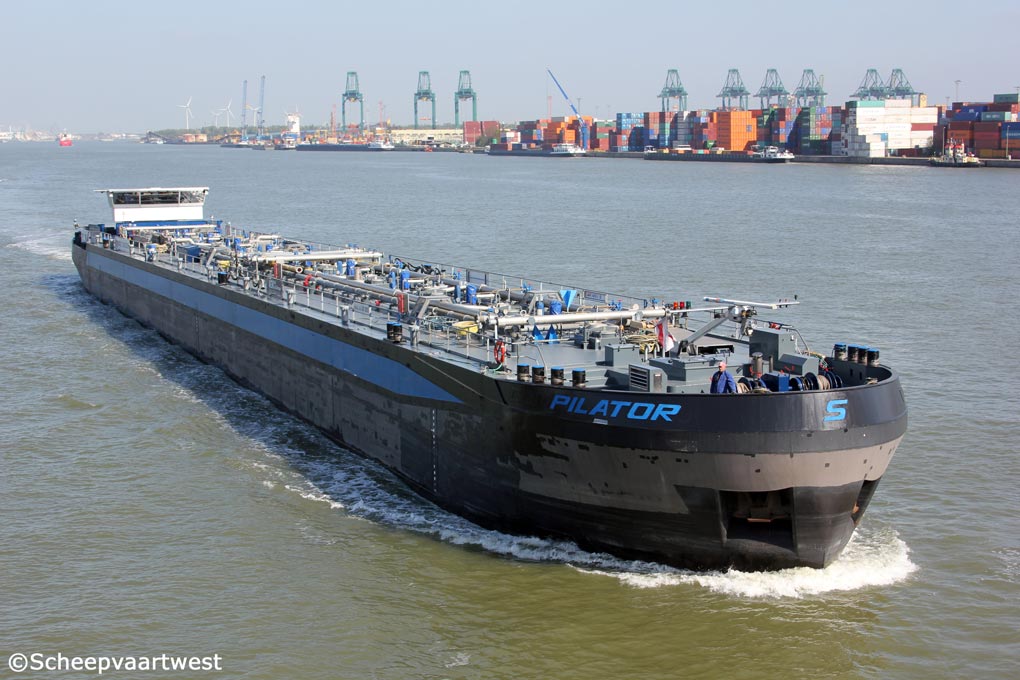

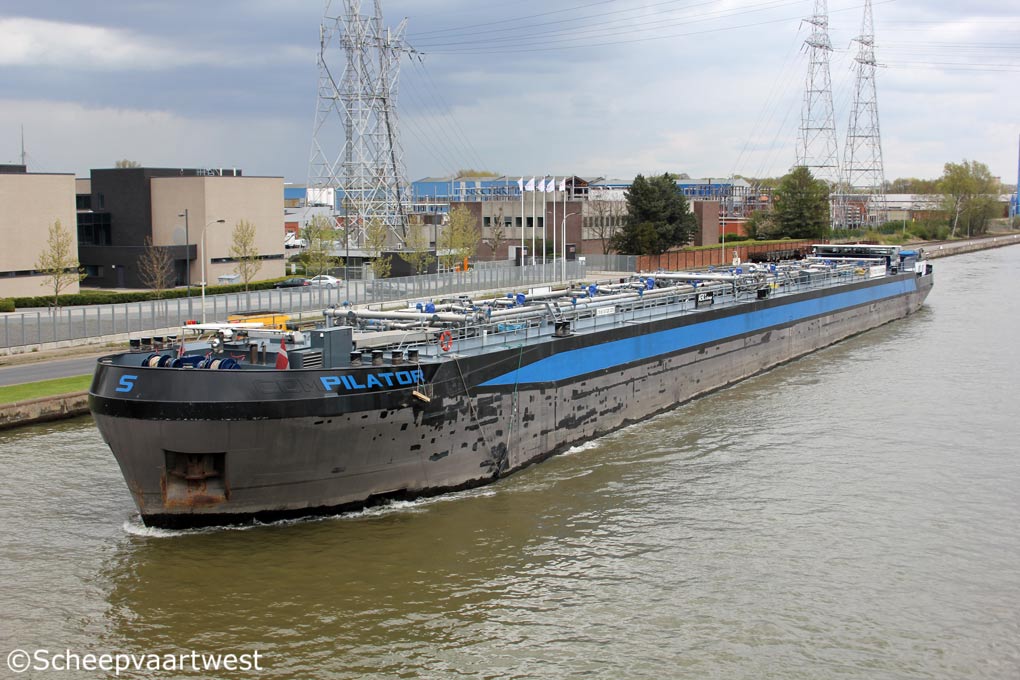

PILATOR |
|
Previous names |
2006 - 2010 Compilator |
|
Type |
Inland tanker |
|
ENI-number |
02327515 |
|
Flag |
The Netherlands |
|
Tonnage |
3.228 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,62 m |
|
Depth |
5,40 m |
|
Built |
2006 |
|
Builder casco |
Centromost Stocznia Rzeczna |
|
Builder completion |
Veka Scheepsbouw B.V. |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (B) DI-TA electronic - 1.305 kW / 1.775 hp at 1.600 rpm |
|
Gearbox |
1x Reintjes type WAF 763 L |
|
Propeller |
1x Propeller diameter 1.750 mm - 5 blads with nozzle type Van de Giessen Optima diameter 1.762 mm |
|
Generators |
1x Caterpillar DI-TA engine type 3412 coupled with Marathon 572 RSL 4030 generator 570 kVA 1x John Deere 6068 TF 258 engine coupled with Marathon 431 PSL 6202 generator 148 kVA 1x John Deere 4045 TF 158 engine coupled with Marathon 362 PSL 1604 generator 71 kVA |
|
Bow thruster |
1x Caterpillar type 3412E - Verhaar Omega 31130-4k - 510 hp / 375 kW at 1.780 rpm |
|
Cargo capacity |
3.800 m³ |
|
Cargo pumps |
10x MDPD-80 deepwell pumps |
|
Owner |
2010 Leegwater Shipping |
|
Previous names & owners |
2006 Compilator - Compagnon Tankvaart BV (Gebr. Sijbesma), Nigtevecht - The Netherlands |
