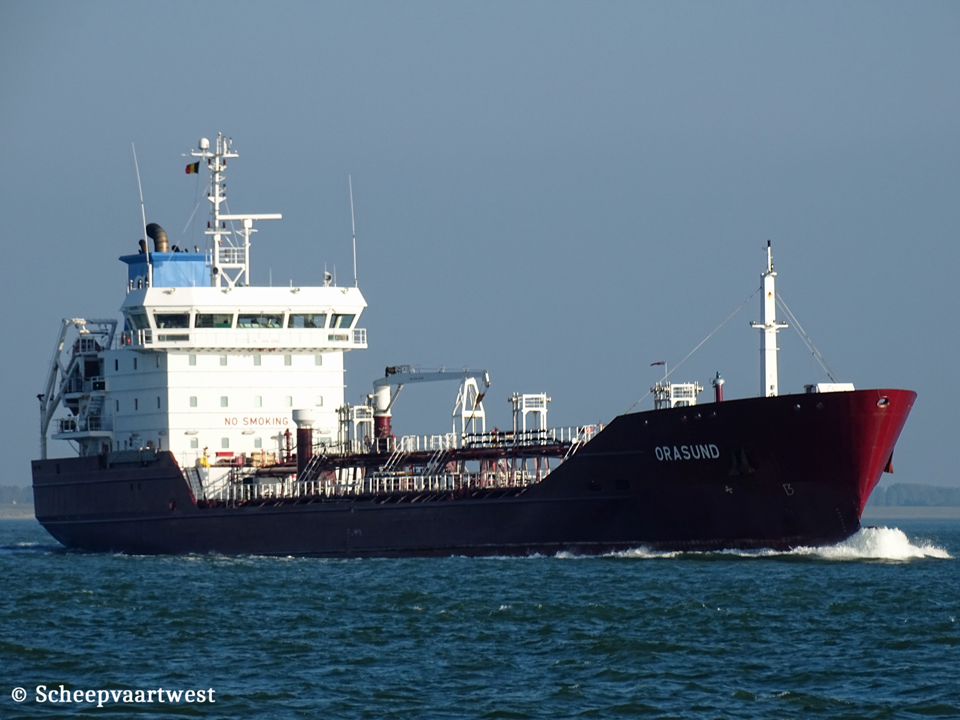

| Westerschelde 15 October 2016 |
 |
 |
 |
 |
 |
||||

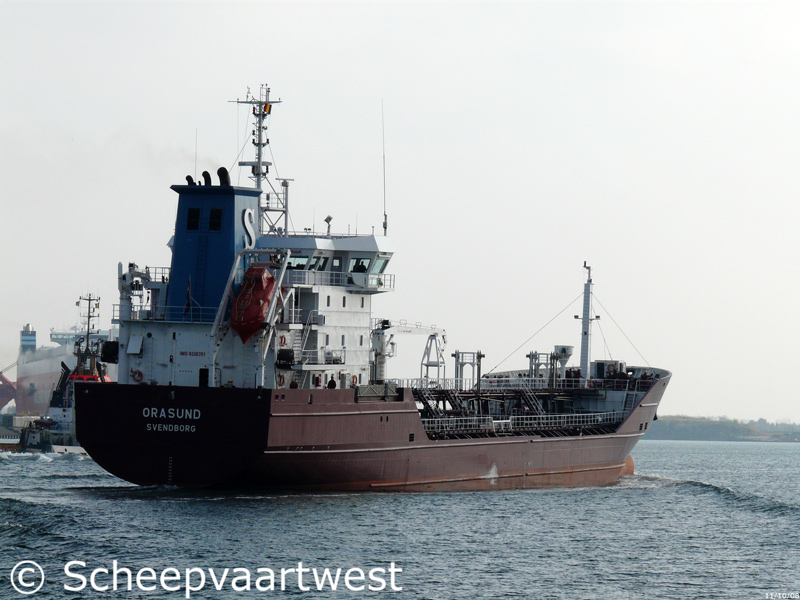

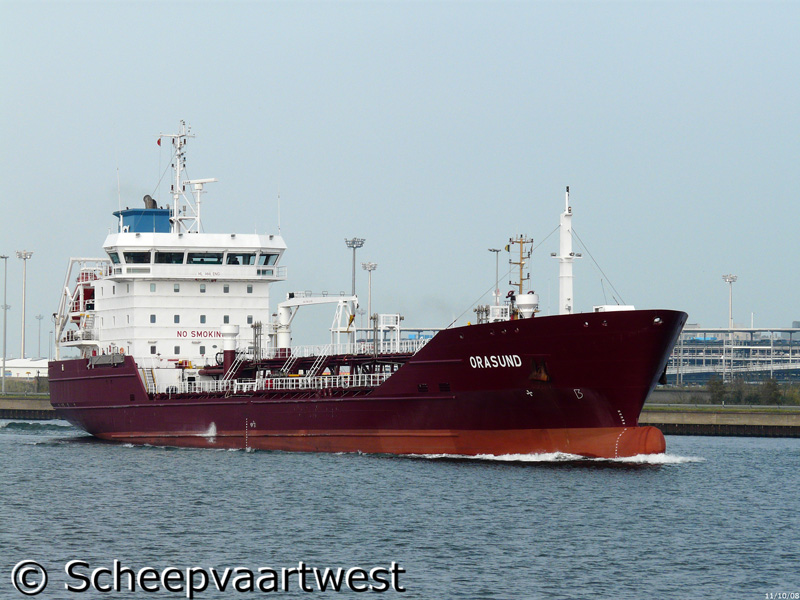

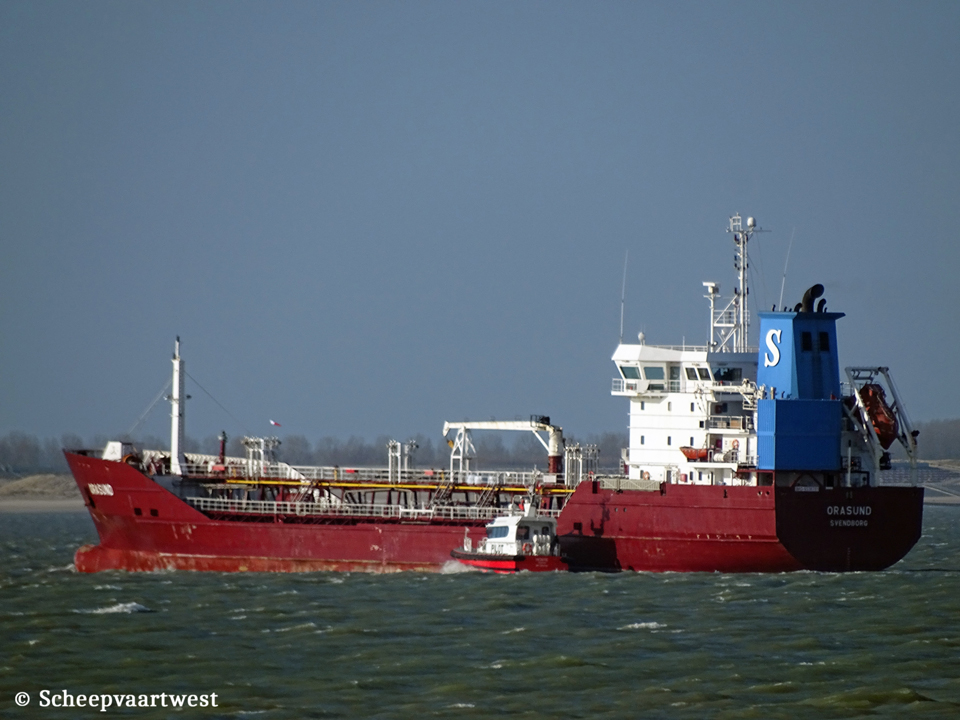

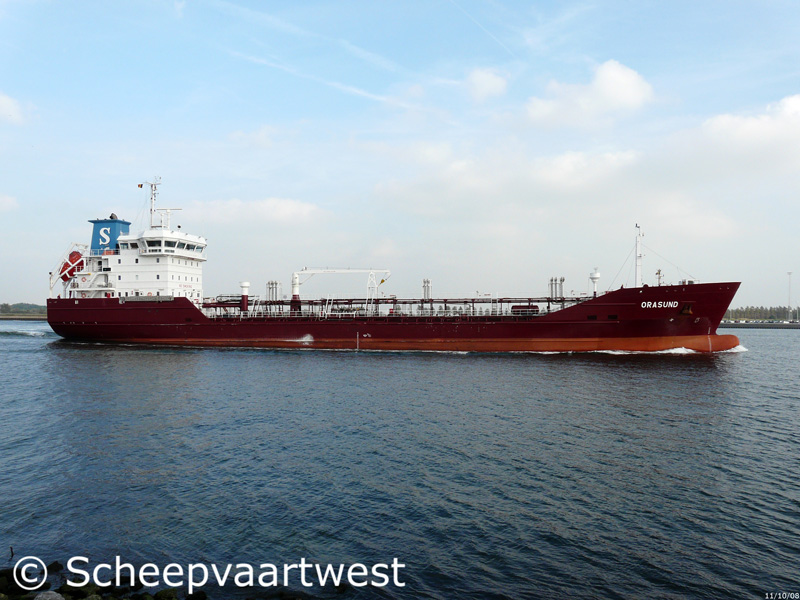

| Zeebrugge 11/10/08 | Zeebrugge 11/10/08 | Zeebrugge 11/10/08 | Westerschelde 05/03/17 | Westerschelde 05/03/17 | ||||
|
Name |
ORASUND |
|
Previous name |
2004 Keel laid as: Necati Sagbas 1 |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9336701 |
|
Call sign |
OXBU2 |
|
Flag |
Denmark |
|
Port of registry |
Svendborg |
|
GT |
3.691 |
|
DWT |
Summer: 4.598 t Winter: 4.300 t |
|
NT |
1.495 |
|
Length |
106,20 overall 100,70 m between perpendiculars |
|
Breadth |
15,60 m overall |
|
Draught |
Summer: 6,20 m |
|
Keel to mast end |
31,50 m |
|
Freeboard |
1.514 mm |
|
Depth |
7,80 m moulded |
|
Speed |
15,5 knots |
|
Built |
2008 |
|
Keel laid |
05/10/2004 |
|
Launch date |
07/03/2007 |
|
Date of completion |
14/03/2008 |
|
Builder |
Desan Tersanesi Shipyard Tuzla Istanbul Turkey |
|
Yard number |
14 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 5L35MC - 2 stroke 5 cylinder 350 x 1.050 mm combustion engine 3.250 KW / 4.418 hp at 210 rpm Builder: MAN B&W Diesel A/S, Frederikshavn - Denmark Build: 2004 |
|
Number of screws |
1x Controllable pitch propeller |
|
Shaft generator |
1x 416kW - 380 Volt |
|
Generators |
3x Main diesel generatorsets each 341 kVA - 273 kW - 516 hp |
|
Emergency generators |
1x Diesel generatorset 166 kVA - 133 kW - 204 hp |
|
Boilers |
1x CHM 188,10 m² - 9,0 bar 1x CHS 54,80 m² - 13,0 bar Builder: Aalborg Industries |
|
Number of Tanks |
14 |
|
Total capacity of tanks 98% |
1p 153,36 m³(possible slop tank) 1s 153,36 m³ 2p/s: 2x 319,05 m³ - Total: 638,10 m³ 3p/s: 2x 592,38 m³ - Total: 1.284,76 m³ 4p/s: 2x 373,10 m³ - Total: 746,20 m³ 5p/s: 2x 590,65 m³ - Total: 1.181,30 m³ 6p/s: 2x 307,75 m³ - Total: 615,50 m³ 7p/s: 2x 331,90 m³ - Total: 663,80 m³ Total: 5.129,66 m³ |
|
Number of pumps |
3x Cargo pumps each 250 m³/h |
|
Cargo handling |
Loading rate: 900 m³/h Discharge rate: 750 m³/h |
|
Manifolds |
Manifold to deck: 1,61 m Manifold to stern: 42,00 m Manifold to rail: 3,65 m Distance between manifolds: 1,20 m |
|
Tank capacities |
Fuel: 227,24 m³ Gas oil: 76,00 m³ Water ballast: 5/336,00 m³ (98%) Fresh water: 153,36 m³ (98%) |
|
Lifting equipment |
1x Deck cranes - SWL 5,0 t outreach 12,00 m |
|
Crew |
10 |
|
Manager |
Rederiet M.H. Simonsen ApS Christiansmindevej 76 DK-5700 Svendborg Denmark |
|
Registered owner |
Rederiet M.H. Simonsen APS (Partrederiet Orasund) Copenhagen Denmark |
|
Latest data adjustment |
03 November 2023 |
