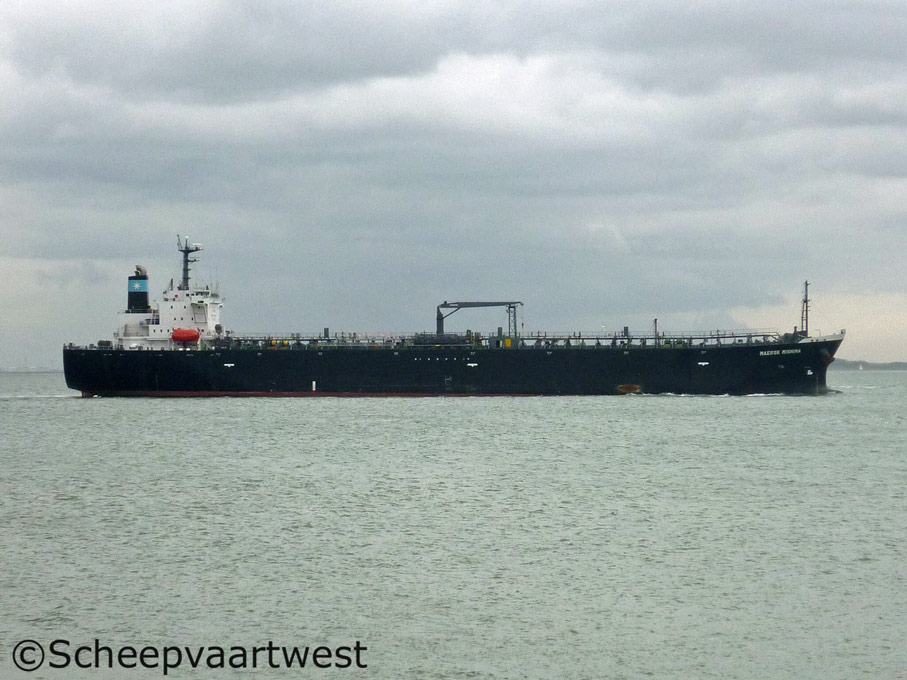

| Westerschelde 08 October 2011 |
|
Name |
MAERSK MISHIMA |
|
Type |
Oil products tanker |
|
IMO-number |
9450789 |
|
Call sign |
3EXN2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
28.049 t registered |
|
DWT |
Summer: 45.971 t |
|
NT |
11.740 t registered |
|
Length |
179,88 m |
|
Breadth |
32,00 m |
|
Draught |
12,072 m |
|
Moulded L x B x D |
172,00 x 32,20 x 18,70 m |
|
Registered L x B x D |
173,10 x 32,20 x 18,70 m |
|
Freeboard |
Summer: 6.664 mm |
|
Depth |
18,70 m moulded |
|
Speed |
13,4 knots |
|
Origin |
Gibraltar |
|
Built |
2010 |
|
Keel laid |
22.12.2009 |
|
Launch date |
01.04.2010 |
|
Date of completion |
20.07.2010 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5601 |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi Type 6UEC60LS - 2 Stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 16,54 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel generatorsets - 2.895 kVA |
|
Cargo capacity |
53.584 m³ |
|
Tank capacities |
Fuel oil: 2.012 m³ Fresh water: 332 m³ Ware ballast: 19.329 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 1x Crane - SWL 4,0 t 1x Crane - SWL 10,0 t |
|
Manager |
MMS Co., Ltd. |
|
Registered owner |
Cassiopeia Marine S.A. |
