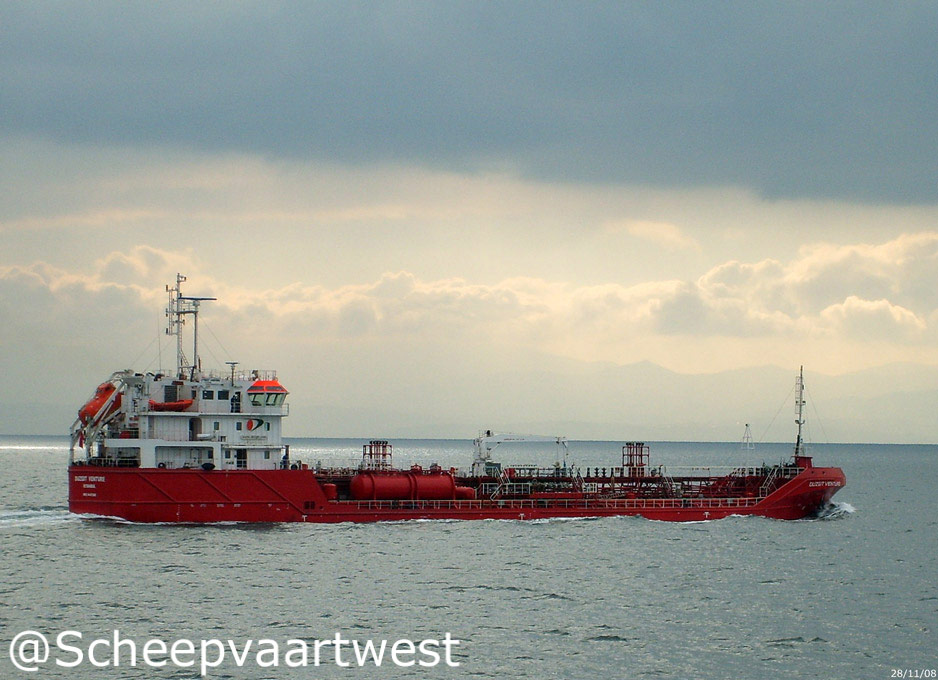

Duzgit Venture 01
Westerschelde 28 November 2008

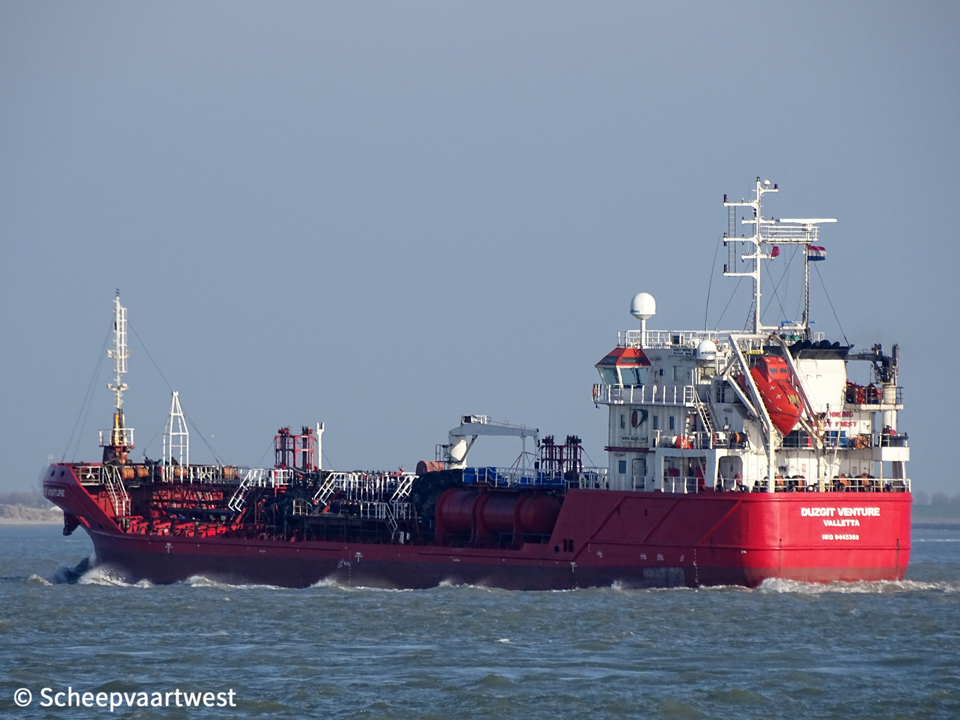

Duzgit Venture 02
Westerschelde 26/03/17













Name

DÜZGIT VENTURE

Type

Tanker for oil & chemicals

IMO-number

9445368

Call sign

9HA2020

Flag

Malta

Port of registry

Valletta

Previous flag

06/2009 - 11/2010 Turkey, Istanbul - Call sign: TCTE9

GT

2.166 t

DWT

Summer: 3.165 t

Winter: 3.049 t

NT

949 t

Lightweight

1.429 t

Length

89,74 m overall

83,33 m between perpendiculars

Breadth

12,50 m moulded

Draught

Summer: 5,13 m

Winter: 5,02 m

Keel to Masthead

28,43 m

In collapsed condition: 18,75 m

Air draft

15,00 m laden-mast folded

Freeboard

981 mm

Depth

6,10 moulded

Speed

12,5 knots

Economic: 11,00 knots

Built

2009

Date of completion

02/12/2009

Builder

Astas Aslan Tersanecilik Denizcilik San. Tic. A.S.

Tuzla

Turkey

Yard number

11

Hull Material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

2x ABC 6(M)DZC-900-150 - 4 stroke 8 cylinder 256 x 310 mm combustion engine each 1.000 kW total 2.000 kW / 2.718 hp at 900 rpm

Licence: Anglo Belgian

Builder:Anglo Belgian Corporation N.V.

Antwerpen

Belgium

Propelling system

2x Screw propeller solid

Boilers

2x CHO HTI-Gesab Ellerau-D 800 kW - 35,00 m² - 10,0 bar

1x CHR HTI-Gesab Ellerau-D 500 KW - 45,00 m² - 10,0 bar (economiser)

Generators

3x Main diesel generatorsets Lindenberg each 406 kVA - 325 kW - 530 hp at 1.800 rpm

Emergency generator

1x Diesel generatorset Lindenberg 99 KW at 1.800 rpm

Bow thruster

1x Schöttel STT 170 FD - 300 kW electrical driven

Number of tanks

12

Integrated cargo tanks: 10

Deck cargo tanks: 2x slop

Cargo capacity 98%

CT1P: 292 m³

CT1S: 294 m³

CT2P: 333 m³

CT2S: 331 m³

CT3P: 332 m³

CT3S: 334 m³

CT4P: 334 m³

CT4S: 334 m³

CT5P: 376 m³

CT5S: 380 m³

CSLP: 51 m³

CSLS: 36 m³

Include slops: 3.428 m³

Cargo pumps

10x Deepwell cargo pumps each 200 m³/h - electrical driven

2x Deepwell cargo pumps each 50 m³/h - electrical driven

1x Portable cargo pump 70 m³/h

2x Elec. driven centrifugal pumps each 200 m³/h

Total loading capacity

1.100 m³/h

Discharging capacity

800 m³/h

Stream generator

1x 500 kg/h

Manifold

Distance bow centre manifold: 41,00 m

Distance stern centre manifold: 48,60 m

Inboard from ships side: 2,90 m

Height above deck: 2,45 m

Height above waterline (loaded): 3,60 m

Height above waterline (in ballast): 5,25 m

Highest allowable pressure: 16,0 bar

Manifold flanges: 3”-6”-10” ANSI

Segregation for Cargo Lines: 5 (CT) + 1 (SLP)

Lifting equipment

1x Hose crane - SWL 5,0 t at 13,00 m

Tank capacities

Ballast: 1.358 m³

Fuel capacity

153,6 m³

Technical manager

DSM Ship Management

Commercial manager

DSM Management

Owner

DS Venture Limited

171, Old Bakery Street

Valletta VLT 1455

Malta

Group

Düzgit group

Eski Büyükdere Caddesi, Park Plaza

No: 14, Kat-11, 34467-Maslak

Sarıyer - İstanbul

Turkey

Latest data adjustment

26 July 2020
