| Antwerpen 31 August 2011 |
|
Name |

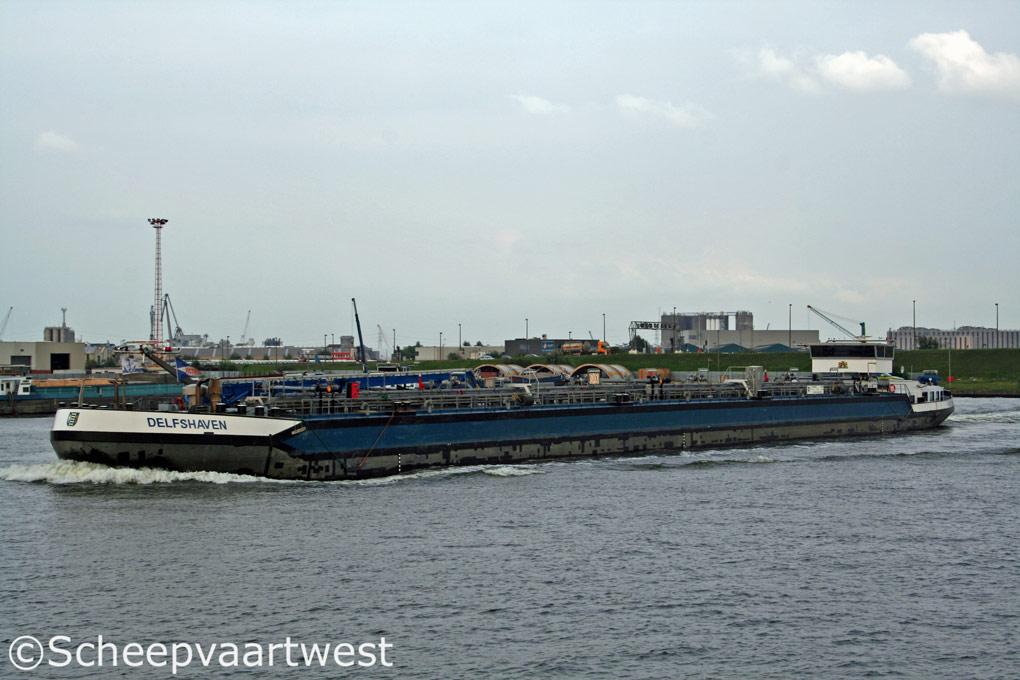

DELFSHAVEN |
|
Type |
Inland tanker |
|
ENI-number |
02327505 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.211 |
|
DWT |
2.967 t |
|
Length |
109,98 m |
|
Breadth |
11,45 m |
|
Draught |
3,60 m |
|
Depth |
5,32 m |
|
Built |
2006 |
|
Date of completion |
12.05.2006 |
|
Builder casco |
Stocznia (Malbo Shipyard) |
|
Builder completion |
Dolderman |
|
Yard number |
59 |
|
Hull material |
Steel |
|
Watertight compartments |
15 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (B) - 4 stroke 12 cylinder 170 x 190 mm diesel engine - 1.249 kW / 1.697 hp at 1.600 rpm Built: 2005 Builder: Caterpillar Inc., Lafayette, IN (USA) |
|
Propelling system |
1x Screw propeller solid 5 blades - Diameter: 1.750 mm |
|
Gearbox |
1x Reintjes gearbox type WAF 763L/5, 136:1 |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
1x 50 kVA - 40 kW - 60 hp |
|
Pumps |
5x Bornemann cargo pumps type W7.2zki-67/2 with 86 kW electro engine each pump 1.250 m³/h 1x Bornemann slob pump type W2.1 K-46 with 7,5 kW electro engine |
|
Number of tanks |
10 |
|
Total capacity of tanks |
3.752 m³ |
|
Bunker crane |
25,00 m 10 inch |
|
Owner |
Heeren Jansen (H.M. Roth) BV |
|
Registered owner |
Heeren Jansen B.V. |
|
Previous names & owners |
2006 Delfshaven - Maatschap Delfshaven, Zwijndrecht - The Netherlands 2008 Delfshaven - Heeren Jansen (H.M. Roth) BV, Rossum - The Netherlands |
