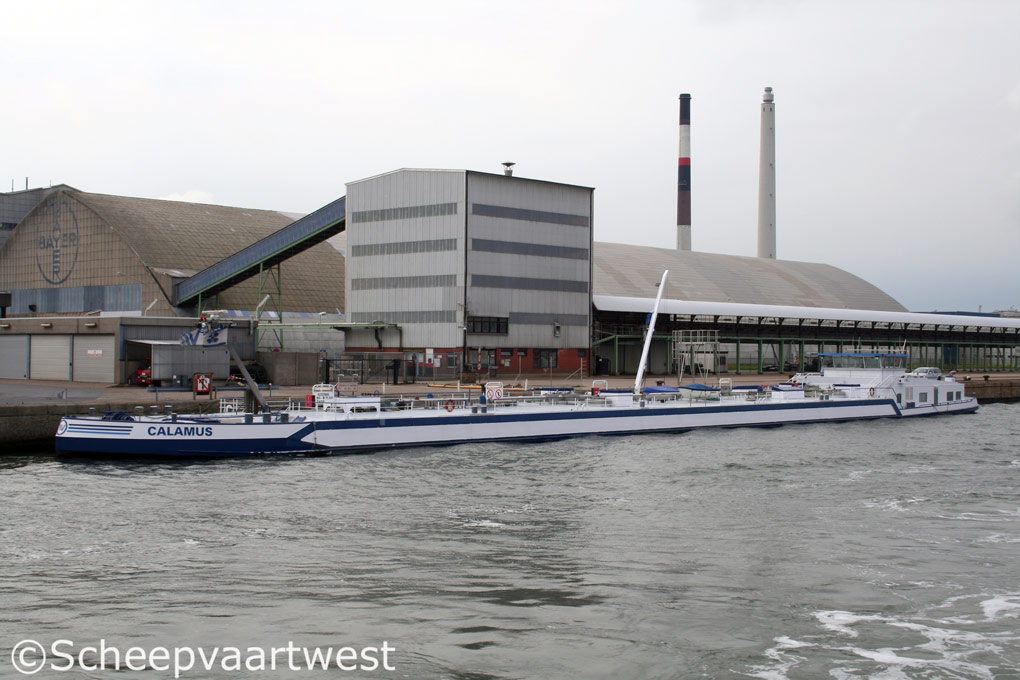

Calamus 01
Antwerpen 31 August 2011

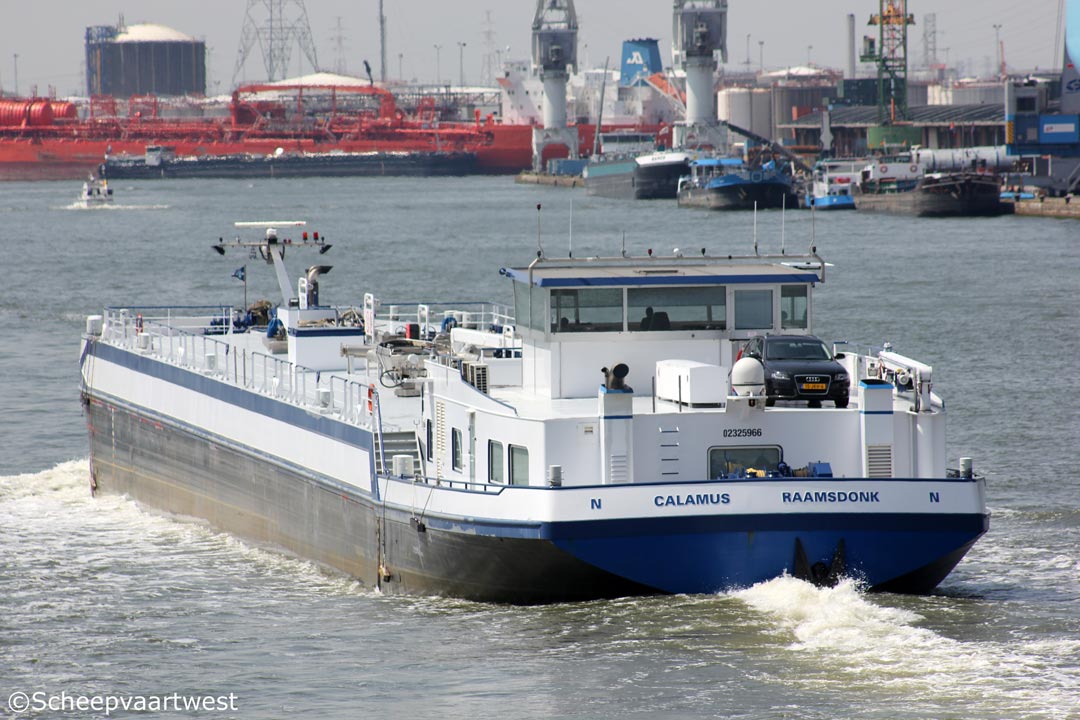

Calamus 02
Antwerpen 22/07/14


Name

CALAMUS

Type

Inland tanker

ENI-number

02325966

Flag

The Netherlands

Port of registry

Raamsdonk

GT

1.311

Tonnage

2.408 t

Length

89,95 m overall

88,34 m between perpendiculars

Breadth

11,50 m

Draught

3,42 m

Air draft

5,50 m

Depth

5,15 m

Built

2004

Date of completion

19.01.2004

Builder

Grave BV
Grave
The Netherlands

Yard number

0145

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Caterpillar 3512 B DI-TA diesel engine - 1.379 hp / 1.015 kW at 1.600 rpm

Built: 19.01.2004

Builder: Caterpillar Tracktor Corp. Inc., Mossville (Illinois) (USA)

Propelling system

1x Screw propeller solid

Generators

1x 97 kVA - 78 kW - 143 hp
1x 97 kVA - 78 kW - 679 hp
1x 485 kVA - 388 kW - 143 hp

Number of tanks

4

Tank capacities

1.383 m³

Pump capacity

400 m³/h

Operator

Zwaans van den Heuvel Tankvaart BV
Nijmegenstraat 1
Havennummer 2181a
3087 CD Rotterdam
The Netherlands

Owner

Verschuren Shipping BV
Raamsdonk
The Netherlands

Latest data adjustment

14 December 2014
