| Vlissingen, The Netherlands 10 November 2011 |
|
Name |

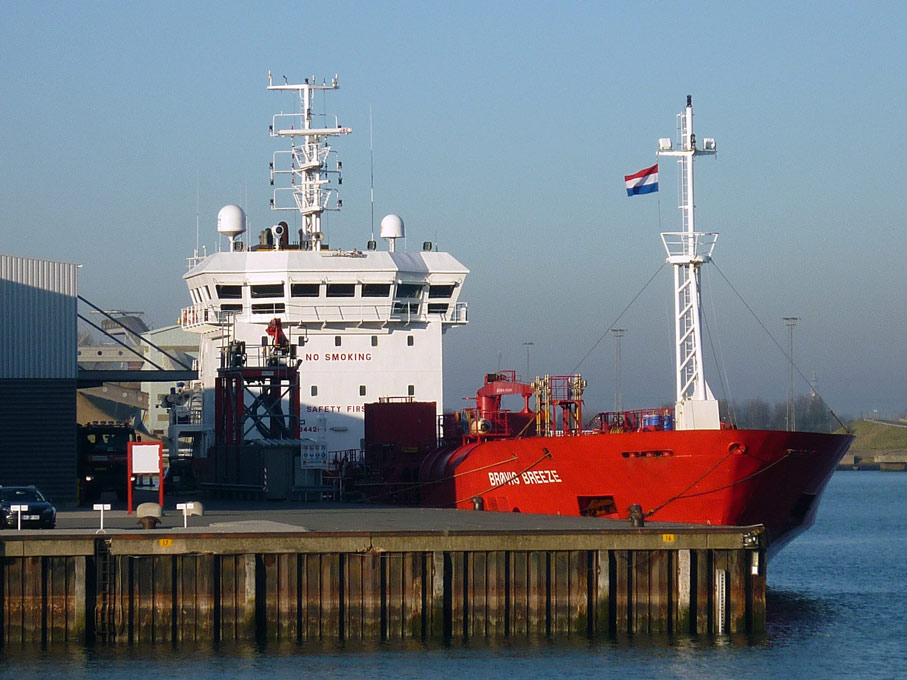

BROVIG BREEZE |
|
Previous names |
2006 - 31.07.2006 Ocean Breeze |
|
Type |
Tanker for Chemicals & Oil Products |
|
IMO-number |
9344265 |
|
Call sign |
LAJJ6 |
|
Flag |
Norway |
|
Port of registry |
Farsund |
|
GT |
2.885 t |
|
DWT |
Summer: 4.296 t Winter: 4.148 t |
|
NT |
1.348 t |
|
Length |
96,00 m overall 88,04 m between perpendiculars |
|
Breadth |
14,20 m moulded |
|
Draught |
6,20 m |
|
Freeboard |
1.460 mm |
|
Depth |
7,65 m |
|
Speed |
Service: 12,0 knots Max.: 15,0 knots |
|
Built |
2006 |
|
Keel laid |
07.01.2005 |
|
Date of completion |
02.08.2006 |
|
Builder |
Selah Makina Sanayi ve Ticaret A.S |
|
Yard number |
47 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x Caterpillar MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.980 kW / 2.690 hp at 750 rpm Built: 2005 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Electrical propulsion gen. |
1x 346 kW - 440 Volt |
|
Propelling system |
1x Screw propeller controllable pitch - at 151 rpm |
|
Boilers |
2x CHO Garioni Naval S.R.L. 31,00 m² - 9,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x Wärtsilä shaft generator 560 kW |
|
Generators |
3x Volvo Penta diesel generatorsets each 433 kVA - 346 kW - 503 HP |
|
Emergency generator |
1x Diesel generatorset 134 kVA - 107 kW - 166 HP |
|
Bow thruster |
1x Fixed pitch 350 kW |
|
Number of tanks |
12 |
|
Cargo capacity 98% |
4.724,93 m³ excl. Slop tanks |
|
Slop tanks |
101,518 m³ |
|
Cargo tank coating |
Epoxy |
|
Max. loading rate |
1.200 m³/h |
|
Max. discharging rate |
600 m³/h |
|
Max. heating capacity |
80°C |
|
Cargo pumps |
10x Marflex Deepwell - 150 m³/h each 1x Marflex Deepwell slop tanks - 35 m³/h |
|
Total bunker capacity |
Fuel oil: 186,03 m³ Gas oil: 47 m³ |
|
Ballast capacity |
1.772,667 m³ |
|
Lifting equipment |
1x Cranes - SWL 5,0 t |
|
Accommodation |
14 persons |
|
Manager |
Brøvigtank AS |
|
Previous managers |
2006 - 2006 ISB Shipping Invest AS Havnegaten 29 2006 - 2007 OSM Ship Management AS Havnegaten 29 |
|
Operator |
Brovigtank AS |
|
Owner |
Brøvigtank AS |
