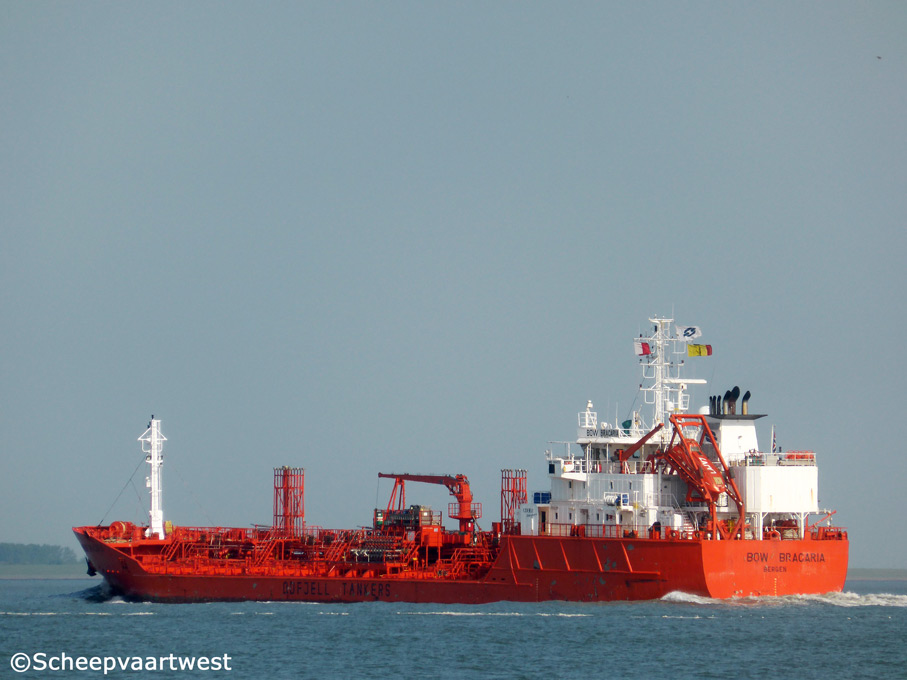

Westerschelde 17 May 2014 |
 |
 |
|

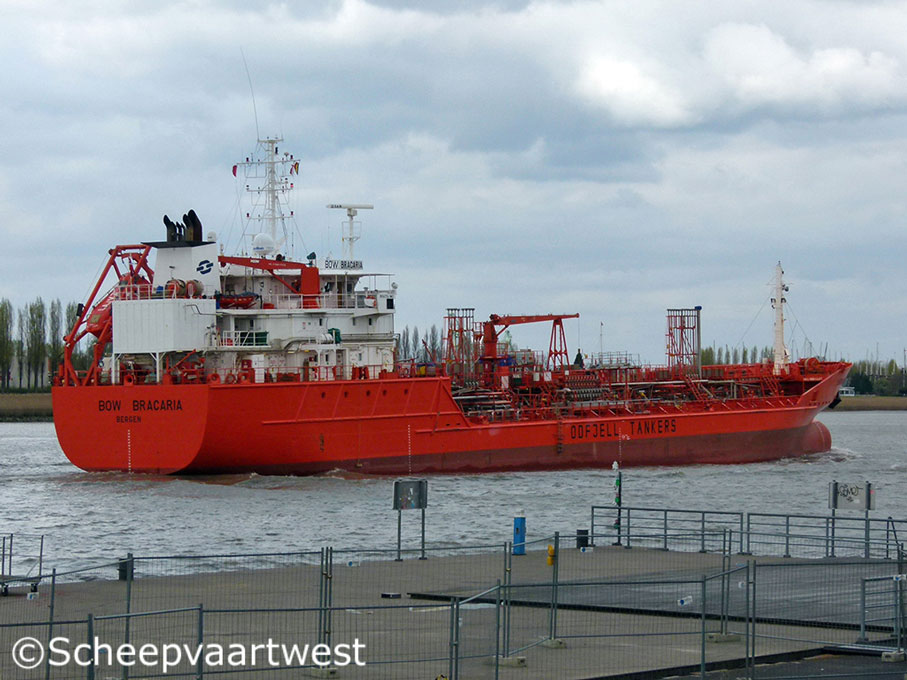

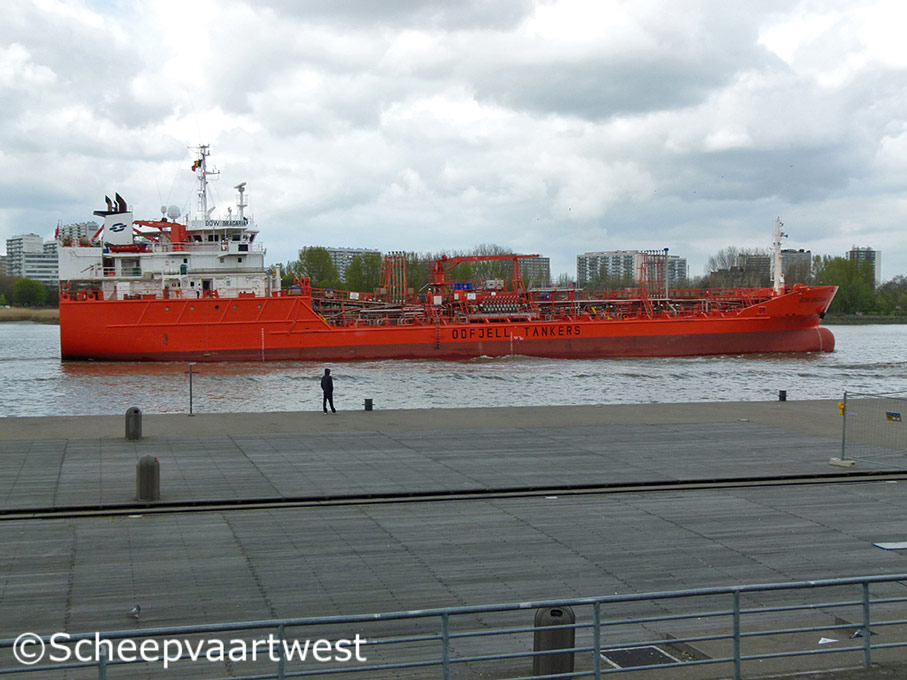

| Antwerpen 07/04/12 | Antwerpen 07/04/12 | |
|
Name |
BOW BRACARIA |
|
Previous names |
1997 - 2005 Multitank Bracaria |
|
Type |
Tanker for Chemicals & Oil Products |
|
IMO-number |
9114775 |
|
Call sign |
LAJV7 |
|
Previous call sign |
1997 - 2010 ELWN9 |
|
Flag |
Norway |
|
Previous flag |
1997 - 2010 Liberia |
|
Port of registry |
Bergen |
|
GT |
3.726 t |
|
DWT |
5.846 t |
|
NT |
1.668 t |
|
Light ship |
2.489 t |
|
Length |
99,99 m over all 95,33 m registered |
|
Breadth |
16,50 m registered |
|
Draught |
6,788 m |
|
Keel to mast |
35,60 m |
|
Forecastle |
7,80 m |
|
Poop |
24,05 m |
|
Depth |
8,30 m moulded |
|
Speed |
15,0 knots |
|
Built |
1997 |
|
Launch date |
31.08.1996 |
|
Date of completion |
21.02.1997 |
|
Builder |
ENVC - Estaleiros Navais de Viana do Castelo, S.A. |
|
Yard number |
186 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 7 S 35 MC - 2 stroke 7 cylinder diesel engine - 4.165 kW at 145 rpm 7 Cylinder, diameter / stroke: 350 mm / 1.400 mm Year of manufacture: 1996 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller - aft at 145 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 82,0 m² 2x Thermal oil heater, oil fired - 10,0 bar Heating surface: 61,62 m² Year of manufacture: 1995 Manufacturer: Keu Energie- und Umwelt- Technik GmbH Niederlassung Wiesloch |
|
Electric installations |
2x Plant each 380/220 V - 790 kVA 1x Plant 380 V - 688 kVA 1x Plant 380 V - 103 kVA |
|
Shaft generator |
1x 688 kVA |
|
Generators |
2x Main generators each 790 kVA |
|
Emergency generator |
1x 103 kVA |
|
Compressed air receivers |
1x Receiver 500 litres - 40,0 bar 2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 80 litres - 30,0 bar 2x Receivers each 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Fixed pitch propeller 'Schottel' - 300 kW, forward |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 98% |
1CS 162 m³ 1CP 187 m³ 2CS 304 m³ 2CP 337 m³ 3CS 379 m³ 3CP 406 m³ 4CS 103 m³ 4CP 109 m³ 5CS 385 m³ 5CP 412 m³ 6CS 538 m³ 6CP 575 m³ 7CS 361 m³ 7CP 387 m³ 8CS 153 m³ 8CP 159 m³ 9CS 230 m³ 9CP 247 m³ 10CS 248 m³ 10CP 264 m³ Total: 5.948 m³ |
|
Tank capacities |
Fuel oil: 363 m³ Ballast water: 2.439 m³ |
|
Anchor Equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m |
|
Manager |
Odfjell Management AS |
|
Operator |
Odfjell Tankers |
|
Registered owner |
Odfjell Chemical Tankers AS |
|
Renamed |
08.2015 Stolt Jaeger - United Kingdom - call sign: 2IUV5 |
