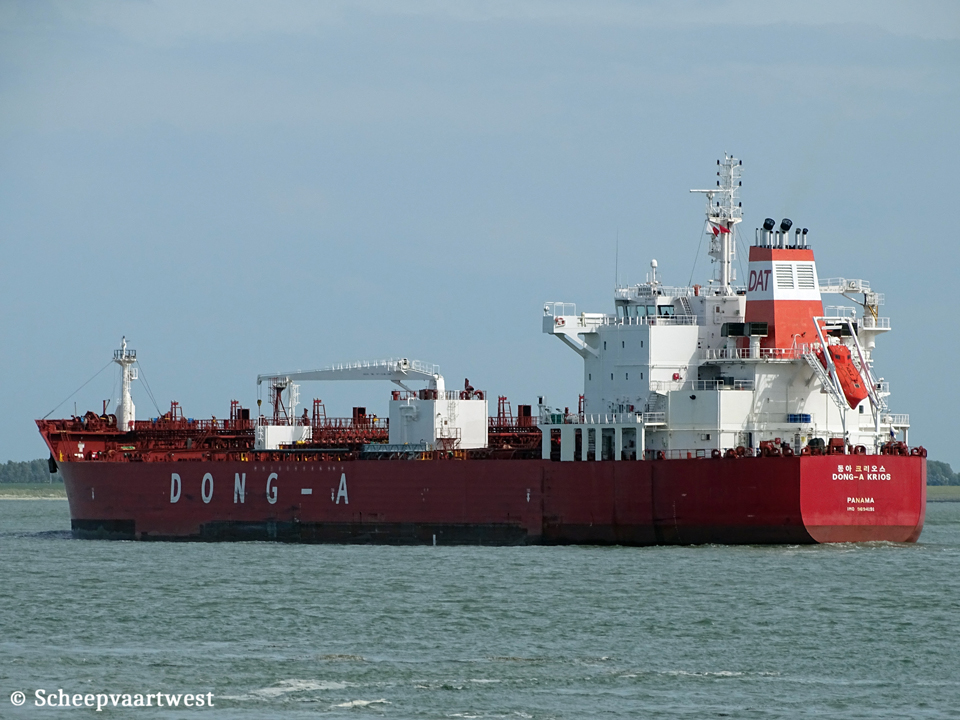

| Westerschelde 24 August 2017 |
|
Name |
DONG-A KRIOS |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9694191 |
|
Call sign |
H3LE |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
28.160 t |
|
DWT |
49.997 t |
|
NT |
13.450 t |
|
Light ship |
10.493 t |
|
Length |
183,06 m overall |
|
Breadth |
32,24 m |
|
Draught |
Summer: 13,32 m |
|
Reg. dimensions L x B x D |
175, 27 x 32,20 x 19,10 m |
|
Rule dimensions L x B x D |
172,70 x 32,20 x 19,10 m |
|
Keel to mast end |
48,84 m |
|
Freeboard |
Summer: 5.813 |
|
Depth |
19,10 m |
|
Speed |
Max: 14,6 knots Service: 12,5 knots |
|
Built |
2015 |
|
Keel laid |
05/12/2014 |
|
Launch date |
17/01/2015 |
|
Date of completion |
24/04/2015 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2448 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6G50ME-B9 - 2 stroke 6 cylinder 500 x 2.500 mm combustion engine 7.180 kW / 9.762 hp at 86,9 rpm Build: 14/11/2014 Builder: HD Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Boiler WTB - 8,8 kg/cm² Heating surface: 233 m² 1x Auxiliary Boiler CPB - 8,8 kg/cm² Heating surface: 294,6 m² Build: 10/12/2014 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 1.063 kVA / 450 Volt |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 53.820 m³ |
|
Number of pumps |
12x Cargo pumps each 600 m³/h |
|
Tank capacities |
Fuel oil: 1.417,4 m³ Fresh water: 253,8 m³ |
|
Commercial manager |
Products Tankers Management Co., Inc. - PTMC 20 piso, Avenida El Bosque Norte 500 7550092 Las Condes Chile |
|
ISM manager |
Fleet Management Ltd. 27th Floor, South Island Place 8, Wong Chuk Hang Road, Southern Hong Kong - China. |
|
Registered owner |
DAT Atlantic Innovation SA Care of Products Tankers Management Co., Inc. - (PTMC) 20 piso, Avenida El Bosque Norte 500 7550092 Las Condes Chile |
|
Renamed |
04/2022 Emma Grace Marshall Islands, Majuro - Call sign: V7A5317 Owner: Exceptional Ltd.,Douglas - Isle Of Man ISM manager: Zeaborn Ship Management Tanker GmbH & Cie. KG Manager: Tufton Management Ltd.,Douglas - Isle Of Man |
|
Latest data adjustment |
13 June 2024 |
