| Westerschelde 03 Setember 2016 |
|
Name |

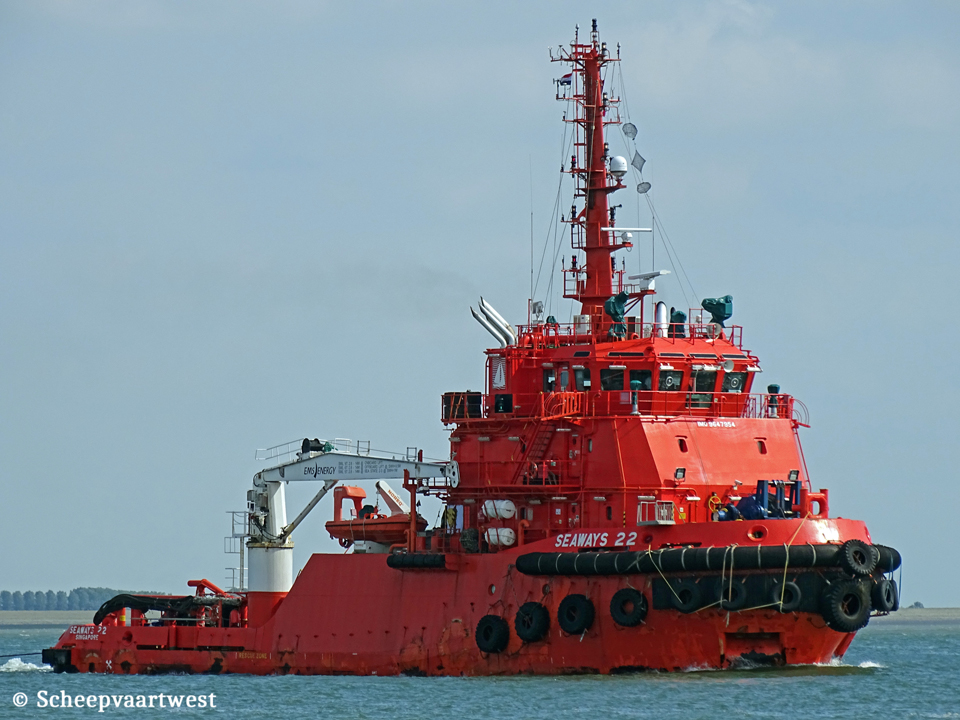

SEAWAYS 22 |
|
Type |
Tug/Supply ship - Fire fighting AHT - Anchor handling tug |
|
IMO-number |
9647954 |
|
Call sign |
9V9961 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
1.213 t |
|
DWT |
616,77 t |
|
NT |
363 t |
|
Displacement |
2.039,75 t |
|
Length |
44,55 m overall 42,80 m between perpendiculars |
|
Breadth |
13,53 m |
|
Draught |
5,20 m |
|
Freeboard |
1.131 mm |
|
Depth |
6,50 m moulded |
|
Speed |
12,0 knots |
|
Built |
2013 |
|
Keel laid |
07/06/2012 |
|
Launch date |
18/12/2012 |
|
Date of completion |
12/09/2013 |
|
Builder |
Keppel Singmarine Pte. Ltd. 15 Benoi Road Singapore City 629888 Republic of Singapore |
|
Yard number |
H369 |
|
Hull material |
Steel |
|
Main engine |
2x MaK 6M25C – 4 stroke 6 cylinder 255 x 400 mm combustion engines each Mcr 2.000 kW at 750 rpm Manufacturer: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
2x Azimuthal thruster propulsion system |
|
Generators |
2x Leroy Somer ARCB 592 generatorsets each 350 kW |
|
Bollard pull |
82 t |
|
Tank capacities |
Fuel oil: 487,50 m³ Fresh water: 152,60 m³ Lub oil: 10,80 m³ Ballast: 248,00 m³ Hydraulic oil: 7,10 m³ |
|
Lifting equipment |
1x Cargo handling crane – SWL 9,0 t |
|
Commercial manager |
Seaways International Pte Ltd. 10-03A, ABI Plaza, 11, Keppel Road Singapore 089057 Republic of Singapore |
|
ISM manager |
Seaways International DMCC Unit 2601, Jumeirah Bay 2, JLT-PH2-X2A, Jumeirah Lakes Towers Dubai United Arab Emirates |
|
Registered owner |
Seaways International Pte Ltd. 10-03A, ABI Plaza, 11, Keppel Road Singapore 089057 Republic of Singapore |
|
Latest data adjustment |
04 May 2024 |
