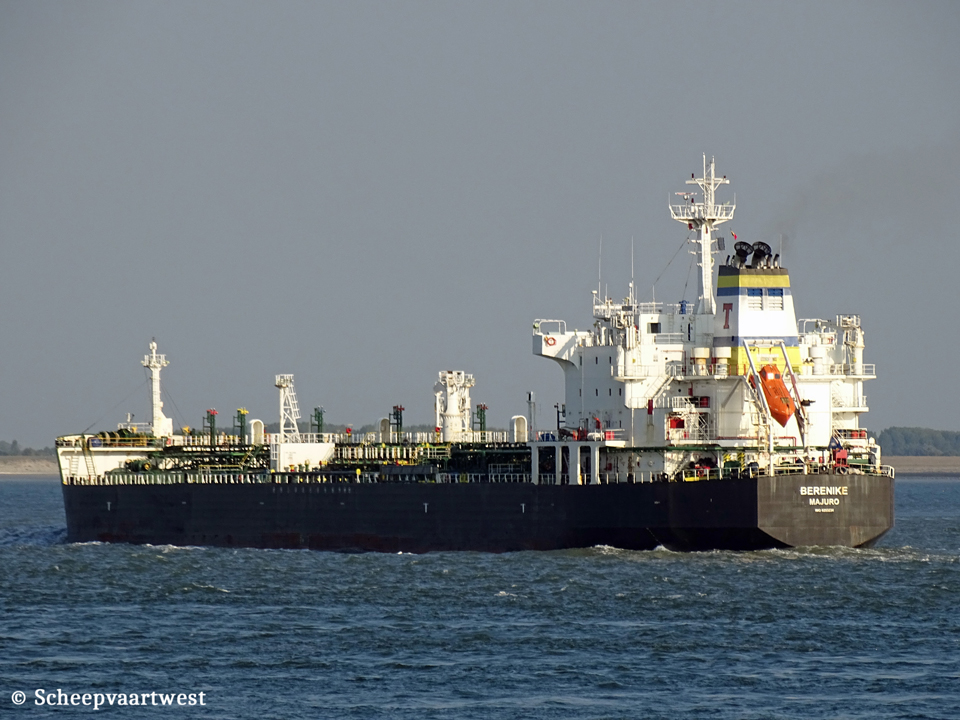

| Westerschelde 14 September 2016 |
|
Name |
BERENIKE |
|
Previous names |
2003 - 2004 Pink Styar 2004 - 2013 Kaltene |
|
Type |
Combined chemical and oil tanker |
|
IMO-number |
9253234 |
|
Call sign |
V7GC7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2003 - 2004 Norway |
|
GT |
23.2017 t |
|
DWT |
39.575 t |
|
NT |
11.037 t |
|
Light displacement |
8.713 t |
|
Length |
182,55 m overall 175,00 m between perpendiculars |
|
Breadth |
27,38 m |
|
Draught |
Summer: 11,72 m |
|
Keel to mast end |
46,10 m |
|
Freeboard |
Summer: 5.010 mm Winter: 5.750 mm |
|
Depth |
16,70 m |
|
Speed |
Service: 13,5 knots Max: 15,7 knots |
|
Built |
2003 |
|
Keel laid |
04/11/2002 |
|
Launch date |
03/02/2003 |
|
Delivery date |
17/04/2003 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
118 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Transverse: 8 Longitudinal: 1 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.463 kW / 12.870 hp at 127,0 rpm Builder: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Mono-block solid fixed pitch propeller Builder: Hyundai Heavy Ind. Co. Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Builder: KangRim Industries. Co., Ltd. |
|
Electric installations |
3x Plant 450 V - 925 kVA 1x Plant 450 V - 180 kVA |
|
Generators |
3x MAN-B&W 6L23/30 main diesel generatorsets each 925 kVA |
|
Emergency generator |
1x Cummins type: LTA-10-G1 diesel generatorset 180 kVA |
|
Bow thruster |
1x Wärtsilä type FT 200-H - 900 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 41.319 m³ |
|
Slop tank capacity |
865 m³ |
|
Number of pumps |
10x Cargo pumps each 500 m³/h 2x Cargo pumps each 300 m³/h 2x Cargo pumps each 150 m³/h |
|
Tank capacities |
Ballast: 18.965 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain Length: 605,00 m |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
25 |
|
ISM & commercial manager |
Tsakos Columbia Shipmanagement (TCM) S.A. Megaron Macedonia, 367, Andrea Syngrou Avenue, Palaio Faliro 175 64 Athens Greece |
|
Owner |
Avanti Shipping Co. Care of Tsakos Columbia Shipmanagement ('TCM') SA, Megaron Macedonia, 367, Andrea Syngrou Avenue, Palaio Faliro 175 64 Athens Greece |
|
Renamed |
2023 Glyfada Gabon - Call sign: TRAQ9 Owner: Glyfada Shipping & Marine Inc. |
|
Latest data adjustment |
22 February 2024 |
