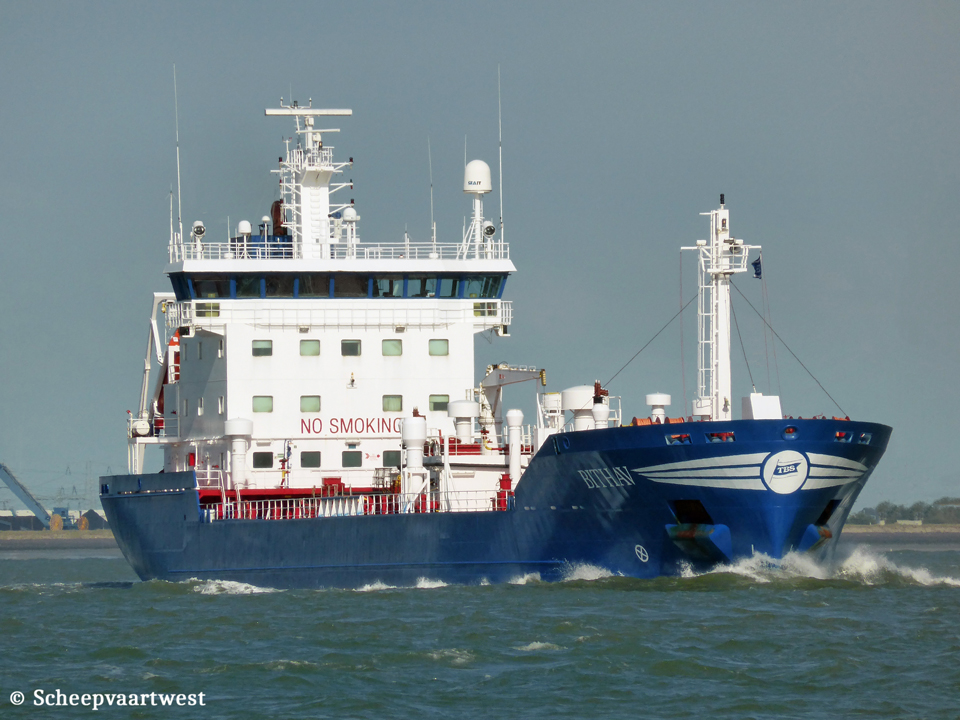

| Westerschelde 30 May 2015 |
 |
|
| Westerschelde 30/05/15 | |
|
Name |
BITHAV |
|
Type |
Oil tanker - Asphalt carrier - Chemical tanker |
|
IMO-number |
9211535 |
|
Call sign |
PCAQ |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
Previous flags |
06/2000 - 03/2010 Sweden, Skärhamn - Call sign: SLBN |
|
GT |
4.980 t |
|
DWT |
6.384 t |
|
NT |
1.194 t |
|
Length |
114,60 m overall 108,90 m between perpendiculars |
|
Breadth |
16,45 m |
|
Draught |
Summer: 6,70 m |
|
Keel to mast end |
32,60 m |
|
Freeboard |
3.160 mm |
|
Depth |
9,85 m moulded |
|
Speed |
Service: 15,0 knots |
|
Built |
2000 |
|
Delivery date |
09/06/2000 |
|
Builder casco |
Frisian Shipyard C.V. Harlingen The Netherlands Yard number: 516 |
|
Builder completion |
N.V. Scheepswerf en Machinefabriek 'De Biesbosch Dordrecht The Netherlands Yard number: 895 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6R38 - 4 stroke single acting 6 cylinder 380 x 475 mm combustion engine 4.197 kW / 5.706 hp at 600 rpm Build: 1999 Builder: Wärtsilä NSD Nederland B.V., Zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 153 rpm |
|
Boilers |
2x CHO Bertrams Konus 42,50 m² - 10,0 bar 1x CHR Bertrams Konus 40,00 m² - 10,0 bar |
|
Shaft generator |
1x 463 kW |
|
Generators |
3x Volvo Penta TAMD 163A main diesel generatorset each 416 kW at 1,800 rpm |
|
Emergency generator |
1x Diesel generatorset 40 kVA - 32 kW - 209 hp |
|
Bow thruster |
1x Retractable thruster 400 kW / 544 bhp |
|
Number of tanks |
8 4x 2 wing tanks |
|
Caro tank capacity 98% |
Liquid: 5.590 m³ |
|
Number of pumps |
2x Bornemann cargo pumps each 500 m³/h |
|
Manifolds |
Bow to centre manifold: 51,00 m |
|
Tank capacities |
Fuel: 378,2 m³ |
|
Lifting equipment |
1x Crane (tank deck) - SWL 1,5 t 1x Crane (aft poop deck) - SWL 1,0 t |
|
Manager |
Tarbit Tankers Services BV Wolwevershaven 30 3311 AW Dordrecht The Netherlands |
|
Previous managers |
06/2000 - 03/2010 Tarbit Shipping AB, Skärhamn - Sweden |
|
Registered owner |
Cassiopeia B.V. Care of Tarbit Tankers BV Wolwevershaven 30 3311 AW Dordrecht The Netherlands |
|
Previous names & owners |
06/2000 - 03/2010 Bithav - Tarbit Shipping AB, Skärhamn - Sweden |
|
Latest data adjustment |
03 October 2023 |
