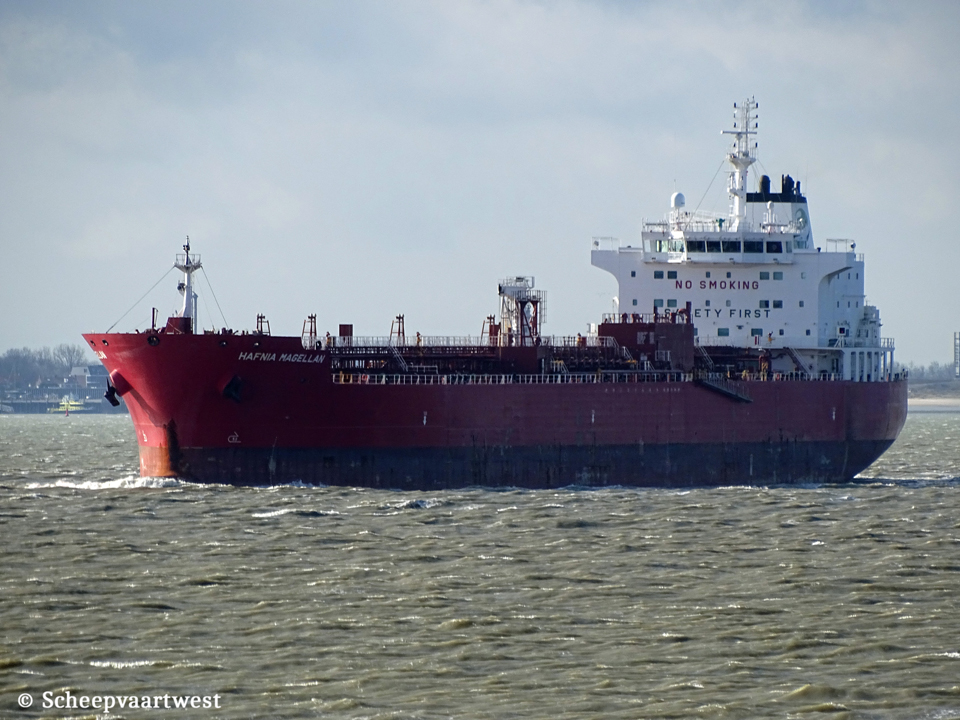

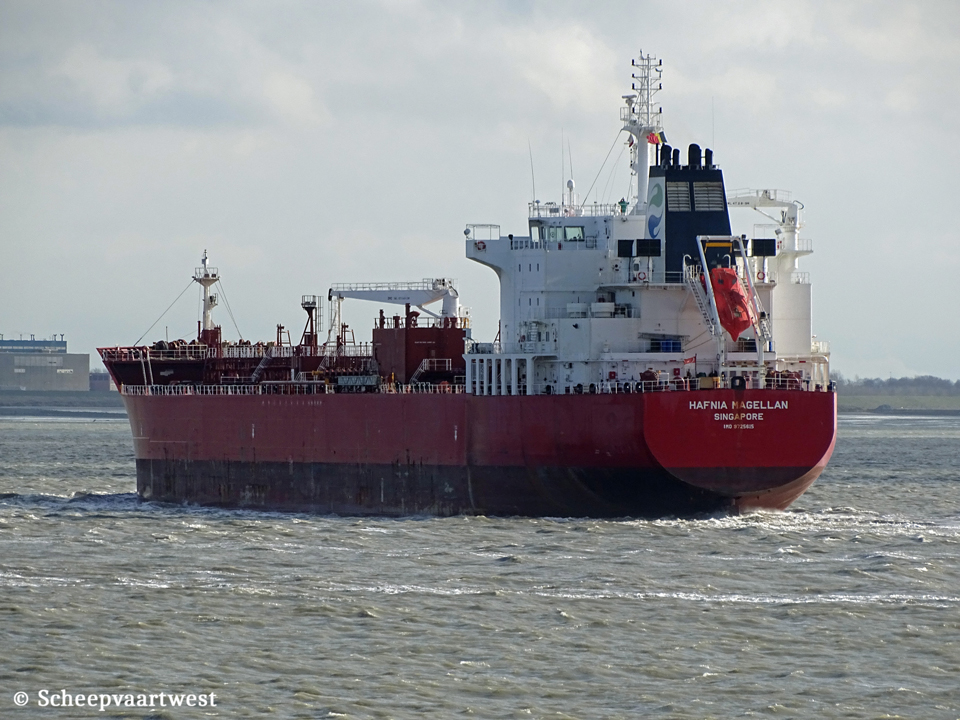

| Westerschelde 13 February 2020 |
 |
 |
|

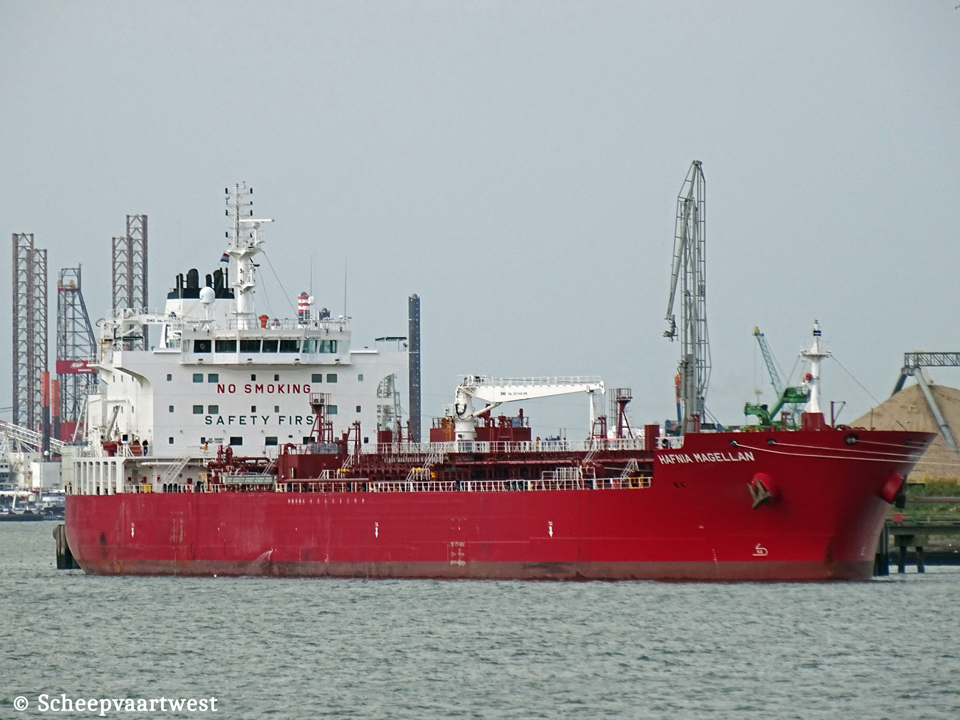

| Westerschelde 13/02/20 | Vlissingen 28/07/16 | |
|
Name |
HAFNIA MAGELLAN |
|
Type |
Chemical / Products tanker |
|
IMO-number |
9725615 |
|
Call sign |
9V3279 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
24.120 t Suez: 25.484,72 t |
|
DWT |
Summer: 38.067 t Winter: 37.936 t |
|
NT |
10.359 t Panama: 20.116 t Suez: 21.671,99 t |
|
Length |
184,26 m overall 176,00 m between perpendiculars |
|
Breadth |
27,44 m extreme |
|
Draught |
Summer: 11;91 m Winter: 11,66 m |
|
Keel to masthead |
46,40 m |
|
Air draft |
Summer deadweight: 34,68 m full mast Normal ballast: 39,24 m |
|
Depth |
17,60 m moulded |
|
Speed |
Ballast: 16,9 knots - Economic: 13,40 knots Laden: 16,20 knots - Economic: 12,8 knots |
|
Built |
2015 |
|
Keel laid |
12/01/2015 |
|
Date of completion |
26/05/2015 |
|
Builder |
Hyundai Mipo Dockyard Ulsan South Korea |
|
Yard number |
2528 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN B&W 6550ME-B9.3 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 7.290 kW / 9.911 hp at 99,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Hyundai 6H21/32 main diesel generatorsets each 1.070 kW |
|
Number of cargo tanks |
12 Capacity 98%: 42.479,5 m³ |
|
Tank capacity 98% |
CC1P: 2.577,99 m³ CC1S: 2.563,87 m³ CC2P: 3.648,73 m³ CC2S: 3.645,60 m³ CC3P: 3.712,14 m³ CC3S: 3.717,53 m³ CC4P: 3.712,14 m³ CC4S: 3.717,53 m³ CC5P: 3.712,14 m³ CC5S: 3.717,53 m³ CC6P: 3.452,63 m³ CC6S: 3.457,14 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
871,60 m³ |
|
Number of pumps |
10x Framo cargo pumps each 500 m³/h 2x Framo cargo pumps each 300 m³/h 2x Framo cargo pumps each 200 m³/h 2x SB-300 submerged ballast pumps capacity 750 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 57,63 m Bow to centre manifold: 92,58 m Stern to centre manifold: 91,68 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.500 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 700 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Commercial manager |
Hafnia Handy Pool Management ApS Tuborg Boulevard 5 DK-2900 Hellerup Denmark |
|
ISM manager |
Thome Ship Management Pte Ltd. 43-01, Hong Leong Building, 16, Raffles Quay Singapore 048581 Republic of Singapore |
|
Registered owner |
Hafnia Tankers Shipholding Singapore Pte Ltd. 159, Telok Ayer Street Singapore 068614 Republic of Singapore |
|
Latest data adjustment |
25 May 2023 |
