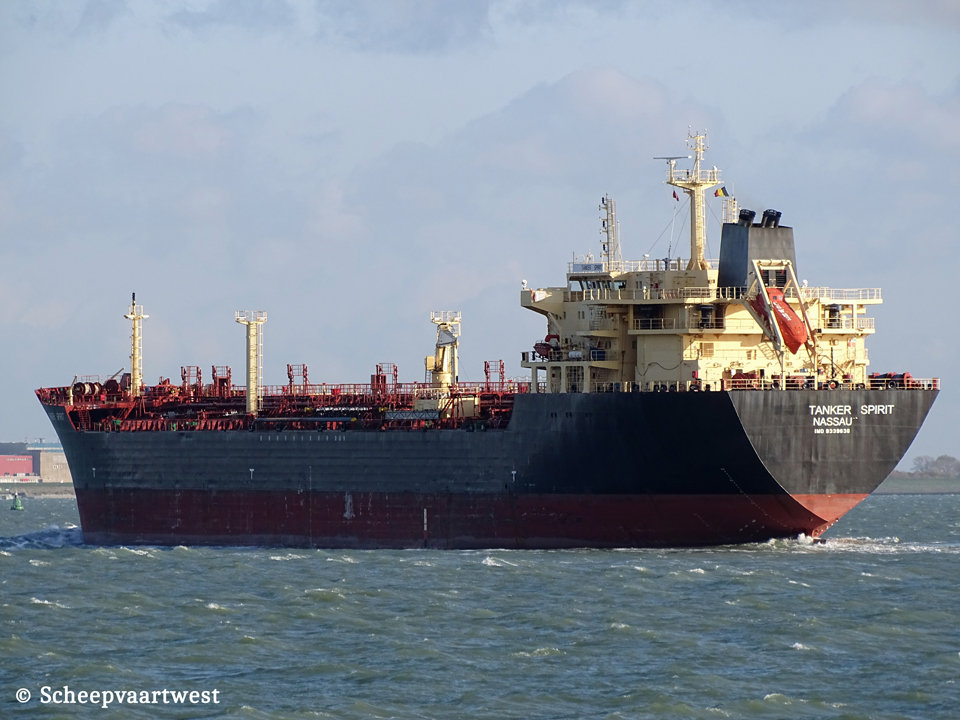

| Westerschelde 12 November 2019 |
|
Name |
TANKER SPIRIT |
|
Previous names |
2007 Launch as: Handytankers Spirit 2007 - 08/2007 Alam Cepat 08/2007 - 05/2018 Handytankers Spirit |
|
Type |
Oil/Chemical tanker |
|
IMO-number |
9339636 |
|
Call sign |
C6WH3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
22.184 t Suez: 23.621,64 t |
|
DWT |
Summer: 34.971 t Winter: 33.602 t |
|
NT |
9.429 t Suez: 20.492 t Panama: 18.492 t |
|
Length |
171,20 m overall 162,00 m between perpendiculars |
|
Breadth |
27,44 m extreme |
|
Draught |
Summer: 11,82 m Winter: 11,57 m |
|
Keel to masthead |
44,70 m |
|
Air draft |
Summer deadweight: 32,88 m Normal ballast: 37,47 m Lightship: 41,74 m |
|
Freeboard |
Summer: 5.415 mm Winter: 5.670 mm |
|
Depth |
17,31 m moulded |
|
Speed |
Ballast 14,5 knots / Eco 12,0 knots Laden: 14,0 knots / Eco 11,0 knots |
|
Built |
2007 |
|
Keel laid |
07/09/2006 |
|
Date of completion |
05/05/2007 |
|
Builder |
Dalian Shipbuilding Industry Co. Ltd. China |
|
Yard number |
PC350-12 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Zhenglang DMD/MAN-B&W 5S50MC - 5 cylinder combustion engine 7.150 kW / 9.721 bhp |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Zhenglang JMD/MAN B&W7LZ23/30H diesel generatorsets each 967 kW |
|
Number of cargo tanks |
12 |
|
Total tank capacity 98% |
36.879,3 m³ |
|
Segregation with double valve 98% |
Seg#1: 4.404,8 m³ (P+SB) Seg#2: 6.275,9 m³ (P+SB) Seg#3: 7.548,9 m³ (P+SB) Seg#4: 8.516,6 m³ (P+SB) Seg#5: 7.089,2 m³ (P+SB) Seg#6: 2.901,1 m³ (P+SB) |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.315,60 m³ |
|
Number of pumps |
2x Framo 300-3 ballast pumps each 1.000 m³ 10 x Framo SD200 cargo pumps each 500 m³/h 4x Framo SD150 cargo pumps each 300 m³/h 1x Framo TKA 150 cargo pump 250 m³/h 1x Framo MA 150 cargo pump 115 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 51,70 m Bow to centre manifold: 83,30 m Stern to centre manifold: 87,90 m Distance between cargo manifold centres: 2.000 m Distance ships rail to manifold: 4.500 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 600 m Distance main deck to centre of manifold: 1.950 mm Spill tank grating to centre of manifold: 9.000 mm |
|
Tank capacities |
Fuel oil: 1.117,6 m³ Diesel oil: 516,71 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t midship |
|
Manager |
Hafnia Management AS Kopenhageh Denmark |
|
Registered owner |
Majorna Mobiliengesellschaft mbH and Co. Toelzerstrasse 15 82031 Gruenwald Germany |
|
Renamed |
2020 VS Spirit Isle of Man, Douglas - United Kingdom - Call sign: MGYF2 Owner: Valloeby Spirit Ltd. - Isle of Man, Douglas Operator: V Ships Germany, Hamburg - Germany |
|
Latest data adjustment |
03 April 2023 |
