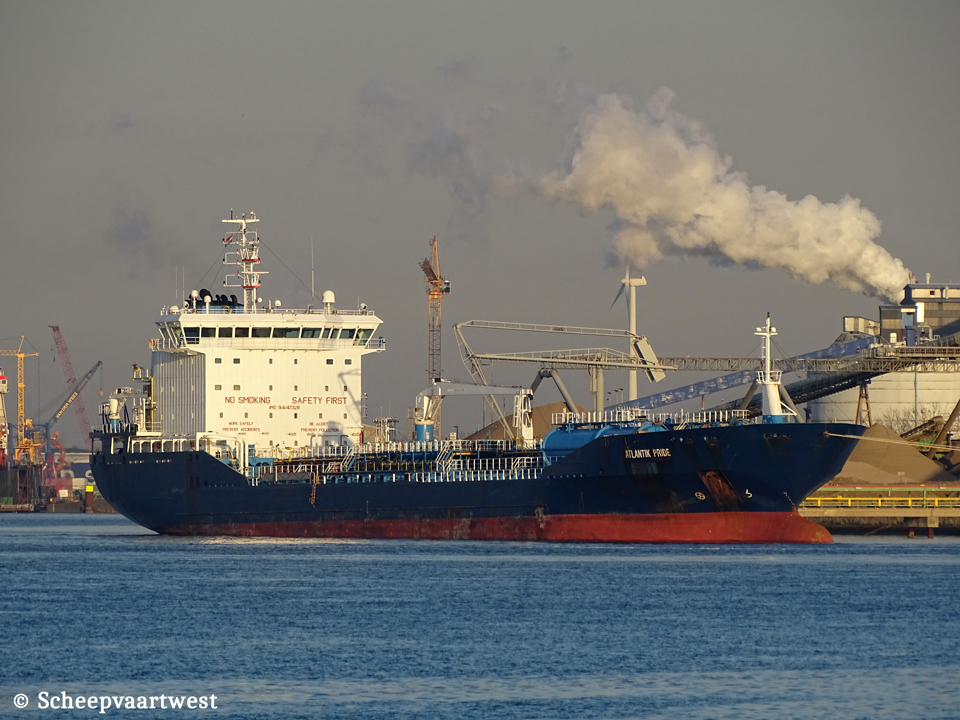

| Vlissingen (NL) 32 November 2019 |
|
Name |
ATLANTIK PRIDE |
|
Previous names |
2008 - 2010 Stromboli M 2010 - 2011 FT Stromboli 2011 - 2016 Lido |
|
Type |
Chemical tanker |
|
IMO-number |
9447328 |
|
Call sign |
9HA2480 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
11.393 t Suez: 12.250,33 t |
|
DWT |
Summer: 17.999 t Winter: 17.456 t |
|
NT |
5.891 t Suez: 10.024,41 t Panama: 9.589 t |
|
Displacement |
Summer: 22.979 t Winter: 22.435 t |
|
Length |
149,61 m overall 140,60 m between perpendiculars |
|
Breadth |
22,40 m |
|
Draught |
Summer: 9,34 m Winter: 9.14 m |
|
Keel to mast end |
40,00 m |
|
Air draft |
Summer deadweight: 30,65 m Normal ballast: 33,86 m Lightship: 35,70 m |
|
Freeboard |
Summer: 3.273 mm Winter: 3.468 mm |
|
Depth |
12,60 m moulded |
|
Speed |
Ballast 12,5 knots Laden: 12,0 knots Max: 15,0 knots |
|
Built |
2010 |
|
Date of completion |
26/01/2010 |
|
Builder |
Anadolu Deniz Insaat Kizaklari San. Ve Tic. Ltd.Sti Istanbul Turkey |
|
Yard number |
219 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S35MC - 2 stroke 8 cylinder 350 x 1400 mm combustion engine 5.920 kW / 8.044 hp at 173,0 rpm Builder: MAN Diesel A/S, Frederikshavn - Denmark |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO S-MAN AB 86,00 m² - 10,0 bar 1x CHR S-MAN AB 102,00 m² - 10,0 bar |
|
Generators |
3x Yanmar/ 6N21(A)L-V main diesel generatorsets each 1.213 kVA - 970 kW - 1.318 hp |
|
Bow thruster |
1x 745 kW / 1.000 bhp |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 20.200,86 m³ excluding slops tanks |
|
Slop tank capacity |
430,02 m³ |
|
Number of pumps |
12x Cargo pumps each 380 m³/h 2x Cargo pumps each 100 m³/h 2x Framo ballast pumps each 500 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 44,00 m Bow to centre manifold: 76,00 m Stern to centre manifold: 73,00 m Distance between cargo manifold centres: 1.500 mm Distance ships rail to manifold: 4.440 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 500 mm Distance main deck to centre of manifold: 1.775 mm Spill tank grating to centre of manifold: 1.270 mm |
|
Tank capacities |
Fuel oil: 673 m³ Diesel oil: 149 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t 1x Crane - SWL 3,0 t |
|
Crew size |
20 |
|
ISM & commercial manager |
Atlantik Denizcilik Ticaret Kat 11, Selenium Plaza, Hakki Yeten Caddesi 10C, Dikilitas Mah, Besiktas 34349 Istanbul Turkey |
|
Registered owner |
Atlantik Chemicals Ltd., Valletta - Malta Care of Atlantik Denizcilik Ticaret ve Sanayi AS, Kat 11, Selenium Plaza, Hakki Yeten Caddesi 10C, Dikilitas Mah, Besiktas 34349 Istanbul Turkey |
|
Renamed |
2023 Songa Atlantic Malta, Valletta - Call sign: 9HA2480 Owner: Songa Dream AS, Paisley - United Kingdom Manager: Songa Shipmanagement Ltd., Paisley - United Kingdom |
|
Latest data adjustment |
09 February 2023 |
