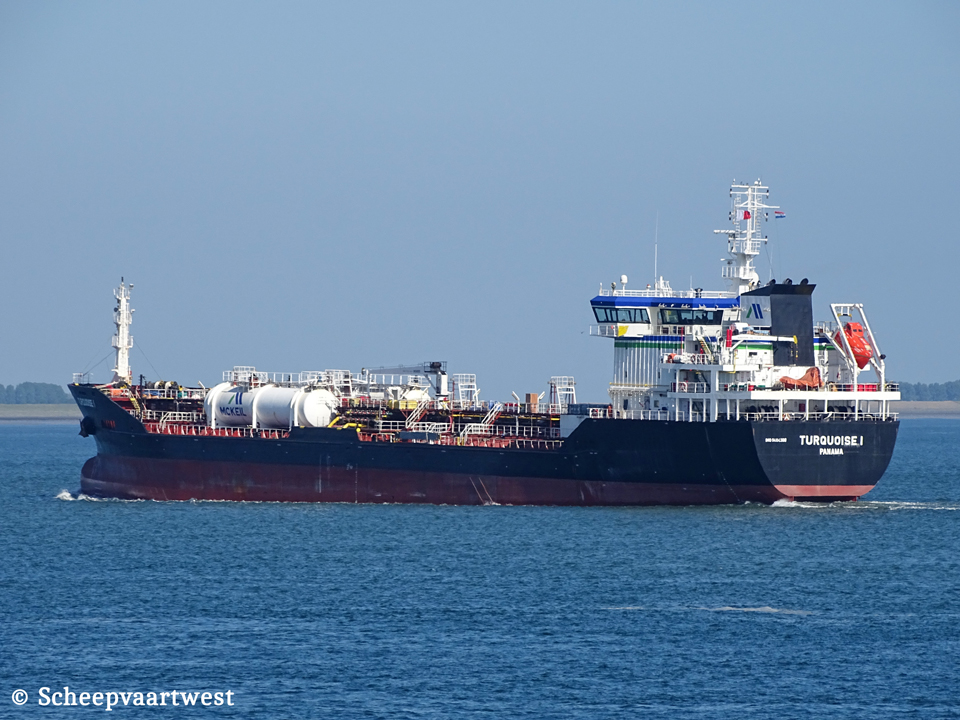

| Westerschelde 28 June 2019 |
|
Name |
TURQUOISE I |
|
Previous names |
Turquoise-T |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9404388 |
|
Call sign |
3ETB7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
8.638 t |
|
DWT |
13.944,98 t |
|
NT |
4.498 t |
|
Length |
136,77 m overall 130,40 m between perpendiculars |
|
Breadth |
20,00 m moulded |
|
Draught |
Summer: 8,46 m |
|
Keel to mast end |
36,42 m |
|
Freeboard |
2.451 mm |
|
Depth |
10,90 m moulded |
|
Speed |
Max: 15,5 knots Service: 14,0 knots |
|
Built |
2008 |
|
Keel laid |
14/06/2007 |
|
Delivery date |
25/10/2008 |
|
Builder |
Gisan Tuzla Shipyard (Gisan Gemi Insa San. Ve Tic. A.S.) Evliya Celebi Mah. Billur Sok. No:11 Istanbul, 34944 Turkey |
|
Yard number |
42 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Yanmar 6N330-EN - 4 stroke 6 cylinder 330 x 400 mm combustion engine Mcr 2.574 kW Total: 5.148 kW / 6,903 hp at 620 rpm |
|
Propellers |
2x Controllable pitch propeller |
|
Boilers |
2 x Aalborg Thermal Oil Heater Economizer 1x Aalborg Thermal Oil Heater V5-O-TFO-025 |
|
Shaft generator |
1x AVK DSU 99 K1-6 generator |
|
Generators |
3x AVK DSG 74 L1-8W main diesel generatorsets each 640 kW |
|
Emergency generator |
1x Sisu 635DSBIG diesel generatorsets 165 kW |
|
Bow thruster |
1x 441 kW |
|
Number of cargo tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 15.523,88 m³ |
|
Number of pumps |
14x Cargo pumps each 250 m³/h |
|
Crew size |
19 |
|
Manager |
ABC Maritime AG rue Perdtemps, 1 1260 Nyon Switzerland |
|
Renamed |
2019 Wicky Spirit Canada, Toronto - call sign: VBAJ Owner: Mckeil Tankers Ltd., Burlington - Canada ISM manager: ABC Maritime AG |
|
Latest data adjustment |
30 December 2022 |
