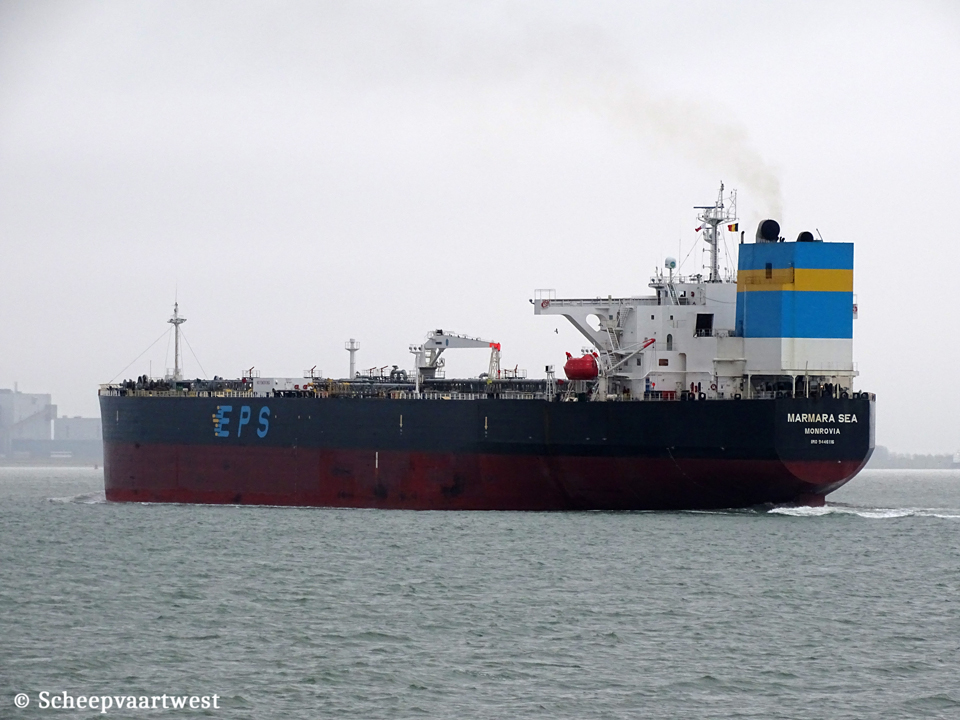

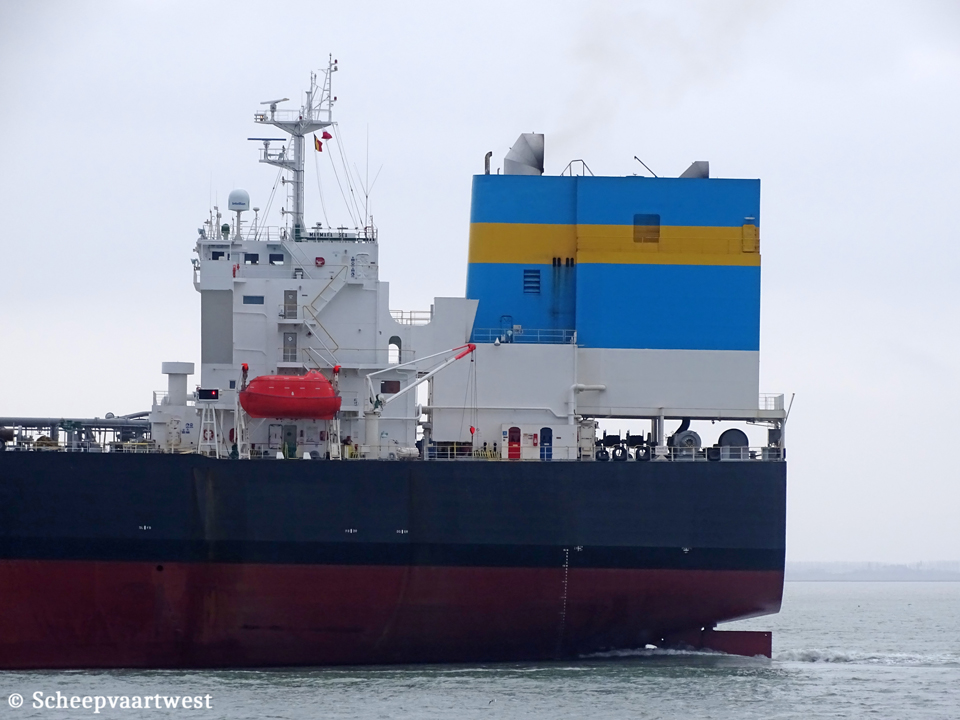

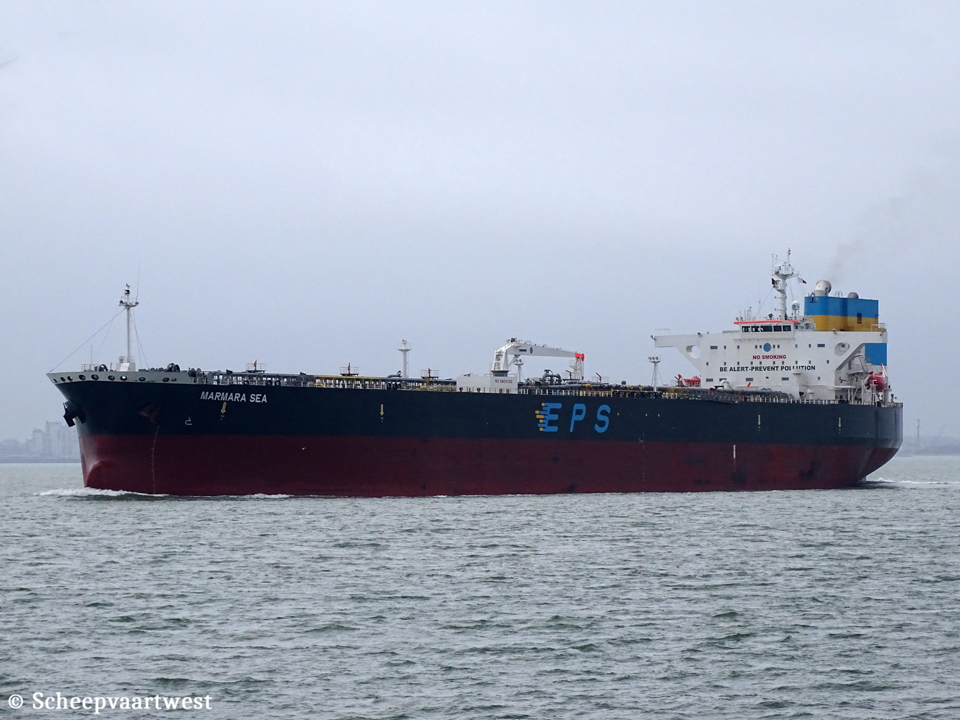

| Westerschelde 22 December 2019 |
 |
 |
|
| Westerschelde 22/12/19 | Westerschelde 22/12/19 | |
|
Name |
MARMARA SEA |
|
Previous names |
2009 - 2011 Blue Sapphire 2011 - 2015 Asian Sapphire |
|
Type |
Crude Oil Tanker - Aframax |
|
IMO-number |
9446116 |
|
Call sign |
D5IQ7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2011 Republic of Singapore - Call sign: S6BX7 2011 - 2015 Republic of Panama - Call sign: 3FTF4 |
|
GT |
56.355 t |
|
DWT |
105.860 t |
|
NT |
32.524 t Panama: 46.750 t |
|
Displacement |
121.852 t |
|
Length |
241,03 m overall 232,00 m between perpendiculars |
|
Breadth |
42,04 m moulded |
|
Draught |
Summer: 14,92 m |
|
Keel to mast end |
48,24 m |
|
Freeboard |
6.318 mm |
|
Depth |
21,20 m moulded |
|
Speed |
15,0 knots |
|
Built |
2009 |
|
Keel laid |
24/12/2004 |
|
Launch date |
13/12/2008 |
|
Date of completion |
26/02/2009 |
|
Builder |
Namura Shipbuilding Co., Ltd. Imari Works 5-1, Shioya Kurogawa-Cho, Imari City, 848-0121 Japan |
|
Yard number |
306 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 11.770 kW / 16.002 hp at 101,0 rpm Manufacturer: Hitachi Zosen Diesel & Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler - 17,7 MPa Manufacturer: Mitstubishi Heavy Ind. Mfg. Ltd. 1x Exhaust gas boiler - 21,6 MPa Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 500 kW |
|
Number of tanks |
14 |
|
Cargo tank capacity |
122.110,40 m³ |
|
Number of pumps |
3x Cargo pumps each 2.500 m³/h |
|
Tank capacities |
Fresh water: 463,00 m³ Lub oil: 122,40 m³ Ballast: 38.756,40 m³ Diesel oil: 239,00 m³ Fuel oil: 2.979,20 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t 1x Engine room overhead travelling crane - 3,5 t 1x Provision crane - SWL 3,0 t |
|
Crew |
30 |
|
ISM & commercial manager |
Eastern Pacific Shipping Pte 38-01, Millenia Tower, 1, Temasek Avenue Singapore 039192 Republic of Singapore |
|
Registered owner |
Braze Shipping Ltd. Care of Eastern Pacific Shipping Pte Ltd , 38-01 Millenia Tower, 1, Temasek Avenue Singapore 039192 Republic of Singapore |
|
Previous names & owners |
2009 - 2011 Blue Sapphire - Korea Line (Singapore) Pte Ltd. 2011 - 2015 Asian Sapphire - Hyundai Merchant Marine Co., Ltd. 2015 - 2016 Marmara Sea - Yable Shipping Inc., Liberia |
|
Renamed |
2021 TMN Plenitude Thailand, Bangkok - Call sign: HSB7631 Owner: TMN Co., Ltd. Operator: Bernhard Schulte Shipmanagement (Singapore) Pte. Ltd. |
|
Latest data adjustment |
07 December 2022 |
