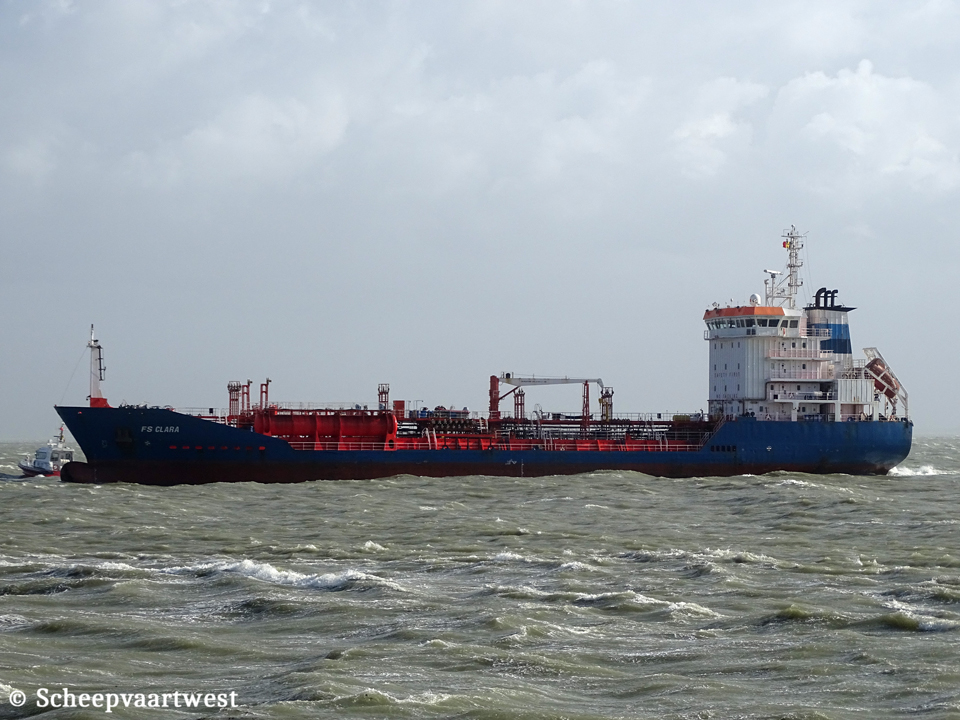

FS Clara IMO 9291602 01
Westerschelde 09 March 2019

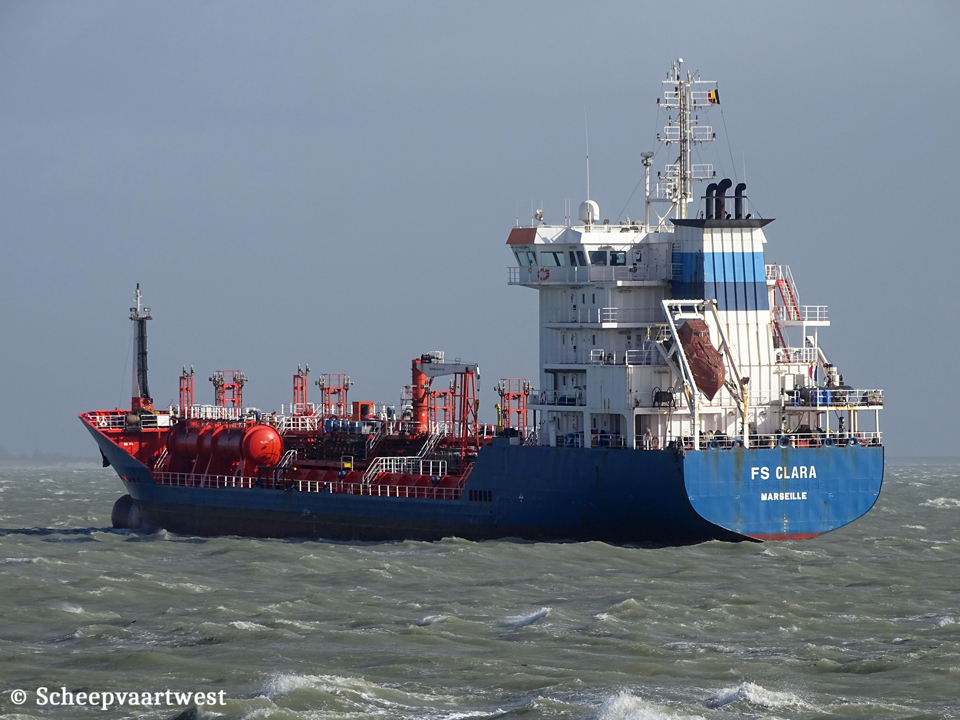

FS Clara IMO 9291602 02
Westerschelde 09/03/19









Name

FS CLARA

Type

Chemical/Products tanker

IMO-number

9291602

Call sign

MLOA2

Flag

Isle Of Man - United Kingdom

Port of registry

Douglas

Previous flags

France, Marseille - Call sign: FMBZ

GT

4.077 t

DWT

Summer: 5.717 t

Winter: 5.707 t

NT

1.812 t

Light weight

2.365 t

Length

105,50 m overall

99,35 m between perpendiculars

Breadth

16,80 m moulded

Draught

Summer: 6,29 m

Winter: 6,16 m

Keel to mast end

35,00 m

Freeboard

1.120 mm

Depth

7,40 m moulded

Speed

13,5 knots

Built

2004

Date of completion

10/08/2004

Builder

Yardimci Shipyard

Tuzla, Istanbul

Turkey

Yard number

032

Hull material

Steel

Hull type

Double hull

Watertight compartments

11

Continuous decks

1

Main engine

1x MAN-B&W 8L27/38 - 4 stroke single acting 8 cylinder 270 x 380 mm combustion engine 2.720 kW / 3.696 hp at 800 rpm

Builder: MAN-B&W Diesel A/S Alpha Diesel, Fredericia - Denmark

Propellers

1x Controllable pitch propeller - aft at 166,0 rpm

Diameter: 3.600 mm

Boilers

1x CHR Garioni Naval 56,20 m² - 10,0 bar

1x CHO Garioni Naval 47,30 m² - 6,9 bar

Shaft generator

1x 800 kW

Generators

3x Main diesel generatorsets each 500 kVA - 400 kW - 602 hp at 1.500 rpm

Emergency generator

1x Diesel generatorset 187 kVA - 150 kW - 241 hp

Thruster

1x Variable pitch 300 kW, forward

2x 350 kW water jet, stern

Number of cargo tanks

10 + 2 slop tanks

Cargo tank capacity 98%

6.298 m³

Slop tank capacity 98%

156 m³

General total 98%

6.414 m³

Number of pumps

10x Marflex deepwell electric cargo pumps each 200 m³/h

2x Cargo pumps each 70 m³/h

Tank capacities

HFO: 279,98 m³

MDO: 100,70 m³

Water ballast: 2.390,5 m³

Fresh water: 77,00 m³

Anchor equipment

1x Crane - SWL 5,0 t

Accommodation

15x Single berth cabins with separate private facilities are provided

Registered owner

Moon Star Shipping Co., Ltd.

Latest data adjustment

07 September 2022
