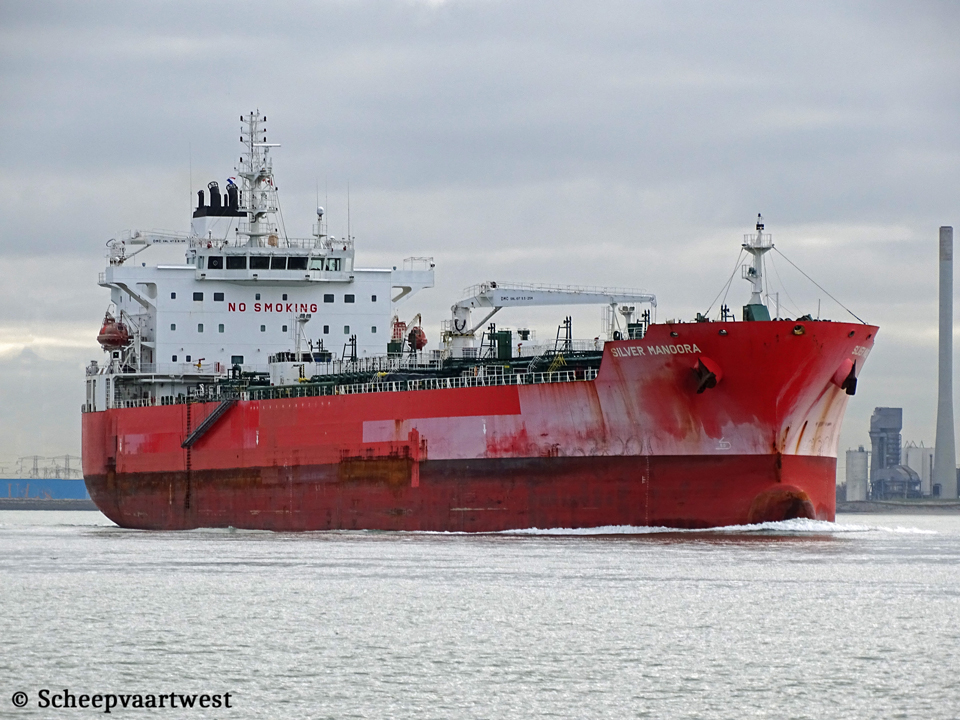

Silver Manoora IMO 9718844 01
Westerschelde 05 February 2020

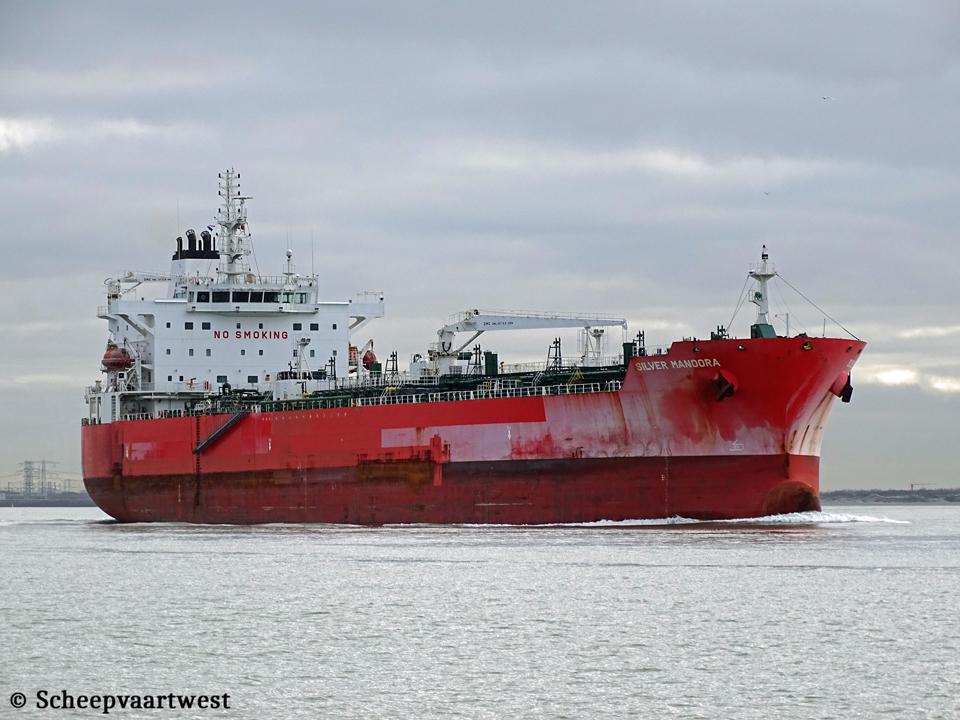

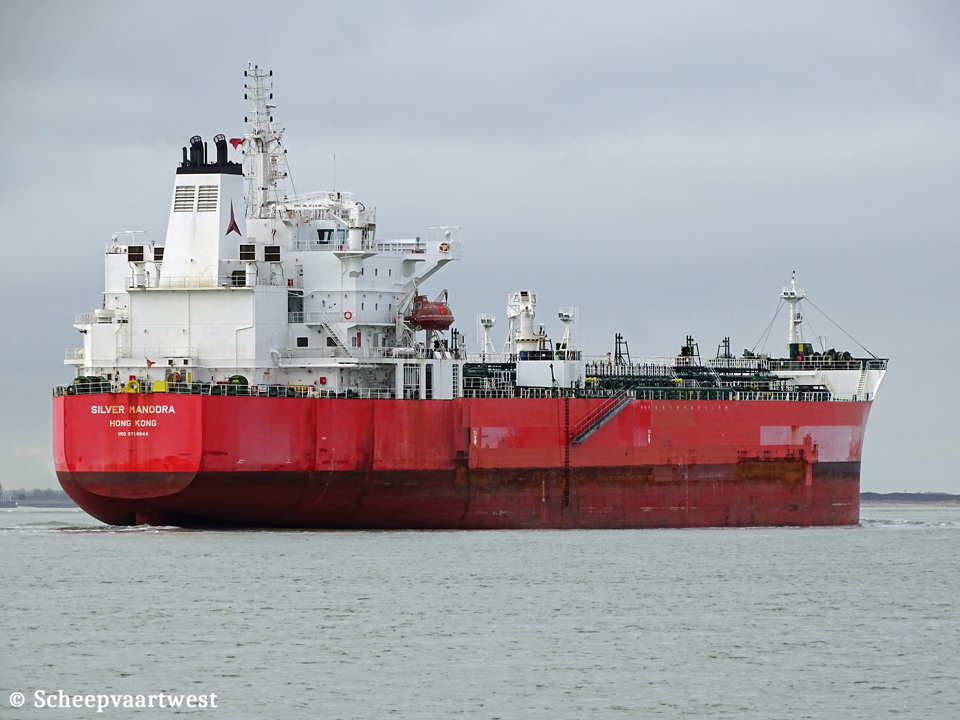

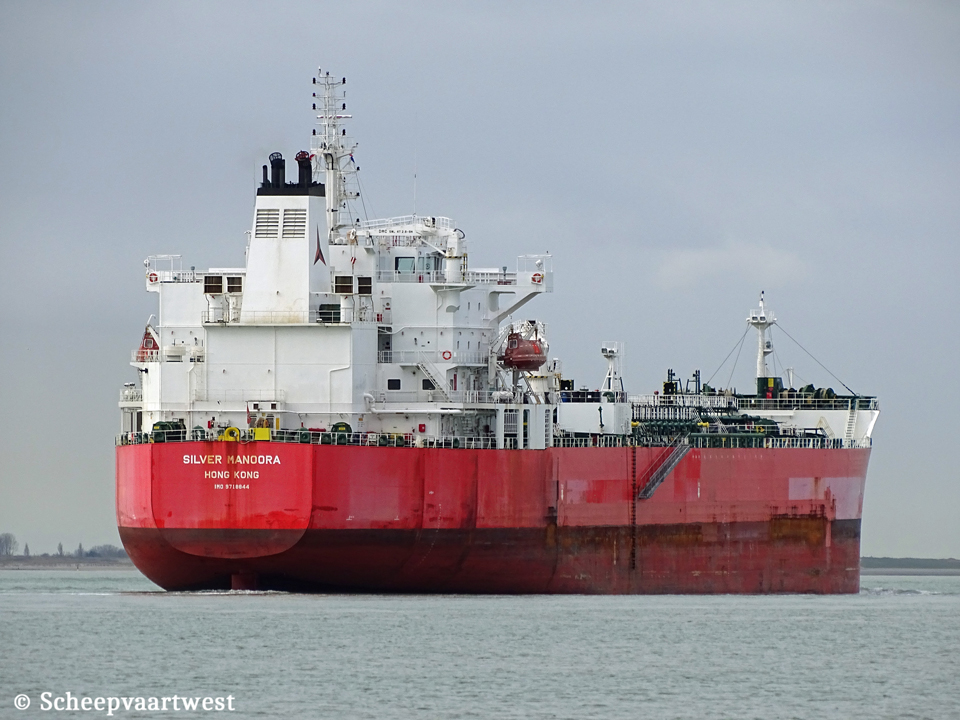

Silver Manoora IMO 9718844 02   Silver Manoora IMO 9718844 03   Silver Manoora IMO 9718844 04
Westerschelde 05/02/20   Westerschelde 05/02/20   Westerschelde 05/02/20









Name

SILVER MANOORA

Type

Chemical tanker / Oil product tanker

IMO-number

9718844

Call sign

VRPR4

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

29.375 t

Suez: 31.144,52 t

DWT

Summer: 49.897 t

Winter: 48.457 t

NT

13.768 t

Suez: 27.366,88 t

Panama: 24.389,08 t

Displacement

Summer: 60.245 t

Winter: 58.805 t

Length

183,06 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Summer: 13,24 m

Winter: 12,96 m

Keel to mast end

48,83 m

Air draft

Summer deadweight: 35,59 m

Normal ballast: 41,29 m

Light ship: 46,01 m

Freeboard

Summer: 5.862 mm

Winter: 6.138 mm

Depth

19,10 m moulded

Speed

Laden: 14,9 m - Economic: 12,8 knots

Ballast: 15,1 knots - Economic: 13,5 knots

Built

2016

Keel laid

29/12//2015

Launch date

07/03/2016

Delivery date

19/05/2016

Builder

Hyundai Mipo Dockyard Co., Ltd.

100 Bangeojinsunhwan-Doro Dong-Gu

Ulsan

South Korea

Yard number

2435

Hull material

Steel

Hull type

Double hull

Main engine

1x Hyundai/MAN-B&W 6G50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.500 mm combustion Mcr 7.700 kW / 10.469 hp at 93,4 rpm

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Auxiliary boiler - 9,0 MPa

1x Composite boiler - 9,0 MPa

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

3x Hyundai/Himsen 6H21/32 main diesel generatorsets each 900 kW

Manufacturer: HHI Electro Electric System

Number of tanks

12 + 2 slop tanks

Cargo tank capacity 98%

52.717,10 m³

Number of slop tanks

2

Slop tank capacity 98%

1.137,10 m³

Number of pumps

12x Centrifugal cargo pumps each 600 m³/h

2x Centrifugal cargo pumps each 300 m³/h

1x Centrifugal cargo pump 75 m³/h

2x Submerged ballast pumps each 800 m³/h

Manifolds

Distance bridge front to centre manifold: 58,21 m

Bow to centre Manifolds: 89,81 m

Stern to centre Manifolds: 93,25 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre manifold: 700 mm

Distance main deck to centre oa manifold: 2.100 mm

Tank capacities

Ballast: 21.876,70 m³

Fresh water: 259,80 m³

Hydraulic oil: 18,20 m³

Diesel oil: 245,10 m³

Lub oil: 110,20 m³

Fuel oil: 1.421,50 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane - 4,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Crew size

26

Commercial manager

Shell Trading US

1000 Main St.

Houston, TX 77002

United States

ISM manager

Fleet Management Limited

27th Floor, South Island Place, 8, Wong Chuk Hang Road, Southern

Hong Kong - China

Registered owner

Roc Shipping One Designated Activity Company - Hong Kong

Care of Tristar Transport LLC

Unit 599-2143, Jebel Ali Industrial Area 2

Dubai

United Arab Emirates

Disponent owner

Atria Shipping LLC

The Trust Company Complexe

Ajeltake Road, Ajeltake Island

Majuro

Marshall Islands

Latest data adjustment

06 September 2022
