| Westerschelde 13 November 2018 |
|
Name |

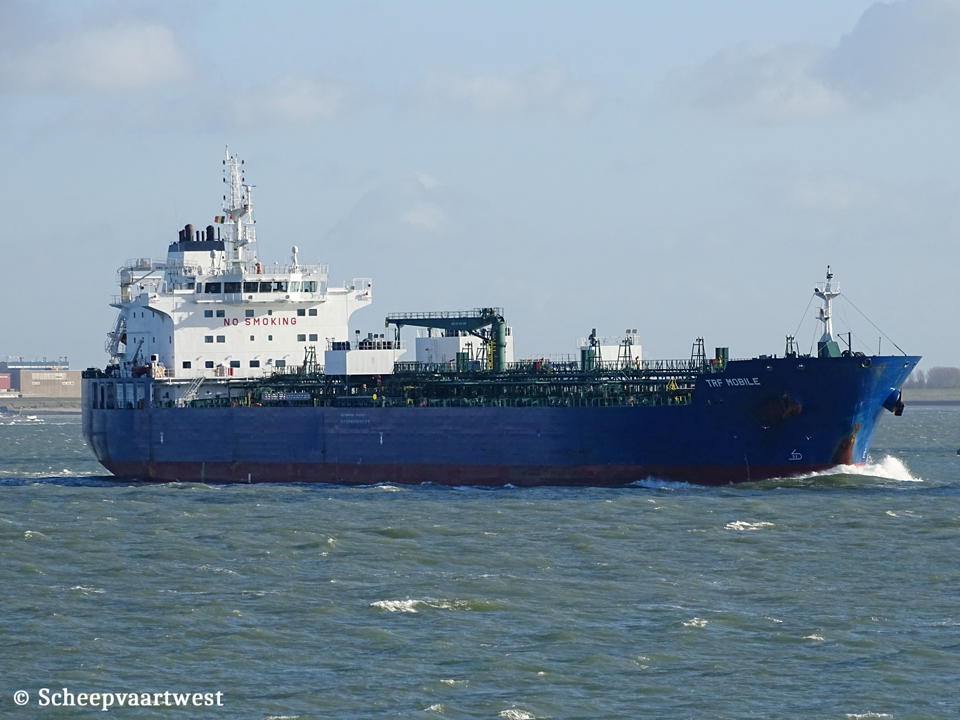

TRF MOBILE |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9732802 |
|
Call sign |
V7OF7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.676 t Suez: 24.999 t |
|
DWT |
37.596 t |
|
NT |
9.905 t Suez: 21.523 t Panama: 19.769 t |
|
Light ship |
9.000 t |
|
Length |
184,06 m overall 176,00 m between perpendiculars |
|
Breadth |
27,43 m extreme |
|
Draught |
Summer: 11,52 m |
|
Keel to mast end |
47,20 m |
|
Depth |
17,20 m |
|
Speed |
Service: 14,5 knots Max: 16,7 knots |
|
Built |
2016 |
|
Keel laid |
25/11/2015 |
|
Launch date |
23/01/2016 |
|
Date of completion |
08/04/2016 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2550 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50MEB9 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 7.290 kW / 9.911 hp at 99,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
Auxiliary boiler, composite Auxiliary boiler, oil/gas fired |
|
Generators |
2x Hyundai/Himsen 6H21/32 main diesel generatorsets each 1.200 kW Builder: Heavy Industries Co., Ltd |
|
Emergency generator |
1x Doosan diesel generatorset |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 40.600 m³ |
|
Number of pumps |
14x Cargo pumps each 500 m³/h |
|
Manifolds |
Bow to center of manifold: 93,34 m Rail to manifold: 4,40 m Normal ballast waterline to manifold: 12,53 m Summer waterline to manifold: 7,81 m |
|
Tank capacities |
Ballast: 17.874,3 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 68 mm |
|
Manager |
Fleet Management Limited |
|
Operator |
TRF Ship Management AS Dronning Eufemias gate 8 0191 Oslo Norway |
|
Registered owner |
WLR/TRF HMN8 Holdings IV LLC c/o Navig8 Chemicals Asia Pte, 25-01 Centennial Tower, 3, Temasek Avenue Singapore 039190 Republic of Singapore |
|
Latest data adjustment |
26 August 2022 |
