| Westerschelde 07 May 2017 |
|
Name |

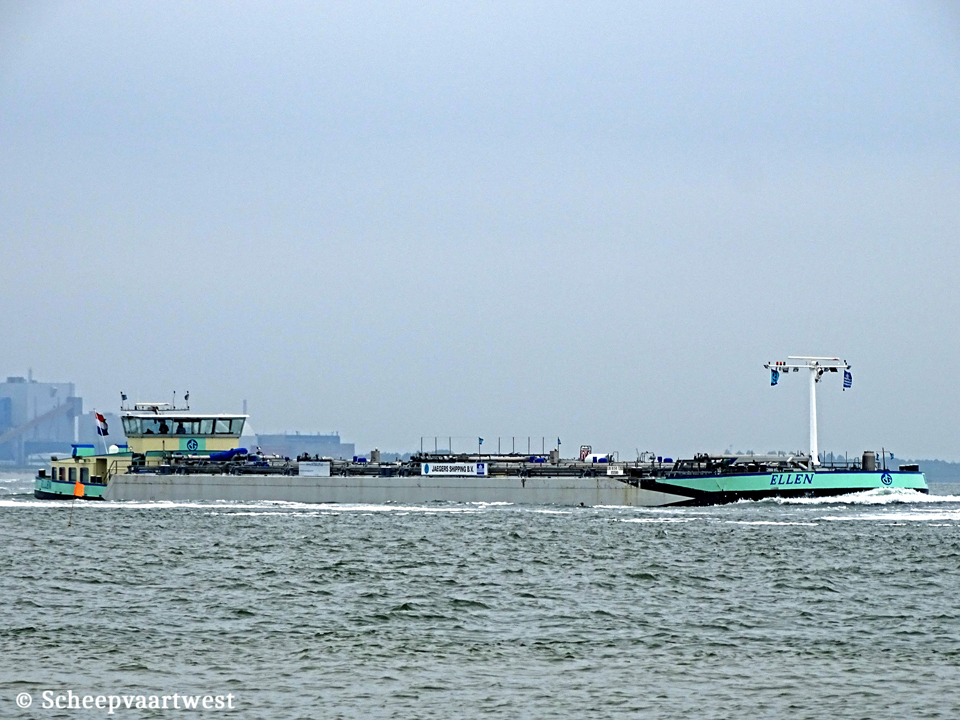

ELLEN |
|
Type |
Chemical Tanker, Inland Waterways |
|
ENI-number |
02325869 |
|
Call sign |
PD9690 |
|
Flag |
The Netherlands |
|
Port of registry |
Gorinchem |
|
GT |
2.900 t |
|
DWT |
3.153 t |
|
Length |
110,00 m overall 106,22 m between perpendiculars |
|
Breadth |
11,45 m extreme |
|
Draught |
Max: 3,76 m |
|
Depth |
5,40 m moulded |
|
Built |
2002 |
|
Keel laid |
28/05/2002 |
|
Date of completion |
08/05/2003 |
|
Builder casco |
Centromost Stocznia Rzeczna Plock Poland Yard number: B2/017 |
|
Builder completion |
Veka Werkendam The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 8 cylinder combustion engine 1.213 kW / 1.650 hp |
|
Propellers |
1 |
|
Bow thruster |
1x Caterpillar Veth-Jet 612 hp with electro motor 450 kW |
|
Number of tanks 100% |
10 x Cargo tanks each 380 m³ |
|
Cargo tank capacity 97% |
3.678 m³ |
|
Number of slop tanks |
2x Each 7,50 m³ These are used for wash water and residual charge |
|
Number of pumps |
10x Deepwell cargo pumps each 160,0 m³/h 10x Air stripping pumps to pump the residual charge out of the tanks 1x Ballast pump 350 m³/h |
|
Lifting equipment |
1x Car crane - SWL 1.500 kg at 15,00 m |
|
Owner |
Groth Beheer BV Arkelse Onderweg 81 4206 AG Gorinchem The Netherlands |
|
Latest data adjustment |
21 August 2022 |
