| Vlissingen 18 February 2020 |
|
Name |

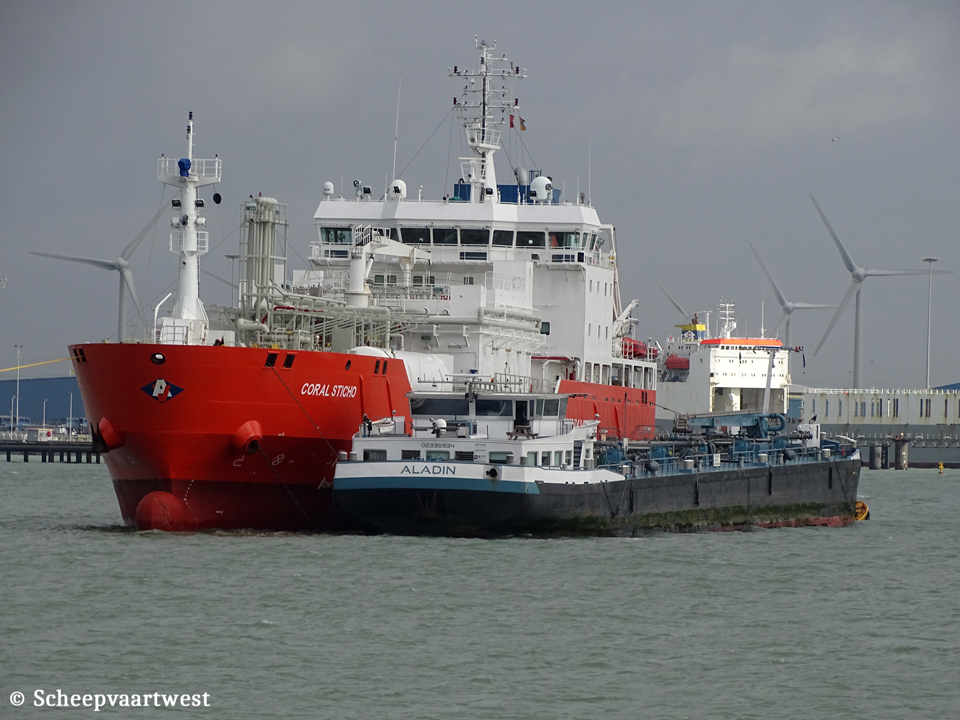

ALADIN |
|
Type |
Inland tanker - Chemical / Products tanker |
|
IMO-number |
9733179 |
|
ENI-number |
02335934 |
|
Call sign |
PB 7389 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
4.250 t |
|
Length |
110,00 m overall 107,96 m between perpendiculars |
|
Breadth |
13,50 m |
|
Draught |
4,32 m |
|
Depth |
5,32 m |
|
Built |
2014 |
|
Keel laid |
22/01/2009 |
|
Date of completion |
14/11/2014 |
|
Builder casco |
Nantong Mingde Heavy Industry China Yard number : D114-903D-02 |
|
Builder completion |
Veka Werkendam The Netherlands |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S 16 R-C2MPTK combustion engine 1.250 kW / 1.700 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine W7350 - reduction 5,031:1 |
|
Propellers |
1x 5-blades propeller Diameter: 1.900 mm |
|
Generators |
1x Caterpillar C18 Acert diesel engine connected with Marathon 572 RSL 4030 generator 525 kVA for bow thruster & cargo pumps 1x John Deere 6068 HFG82A diesel engine connected with Marathon 431 PSL 6202 generator 145 kVA 1x John Deere 4045 HFG82 diesel engine connected with Marathon 362 CSL 1606 generator 85 kVA |
|
Bow thruster |
Verhaar Omega type VBS 1200 SR electro motor 393 KW at 1.870 rpm |
|
Number of tanks |
12 |
|
Cargo tank capacity |
4.560 m³ |
|
Pumps |
2x Bornemann cargo pumps type HC232-85/2 each 500 m³/h connected with ABB electro-motors each 230 kW |
|
Registered owner |
Votus Shipping International 25B, Stokerijstraat Wijnegem 2110 Belgium |
|
Previous names & owners |
2014 - 2017 Aladin - Scheldt Bunkering & Trading BV, Rotterdam - The Netherlands |
|
Latest data adjustment |
26 February 2022 |
