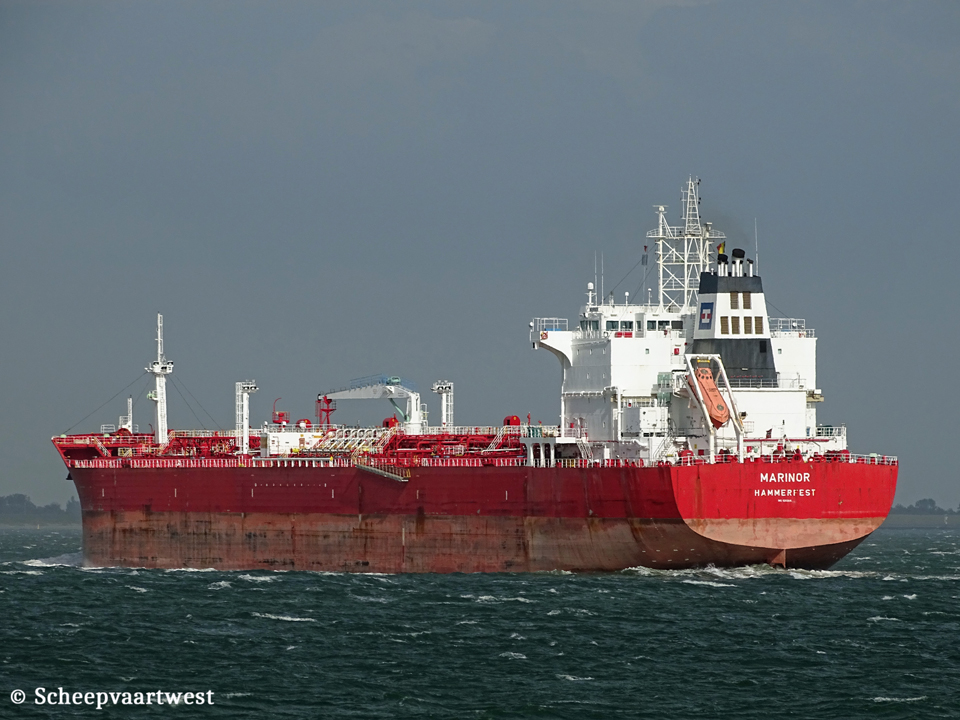

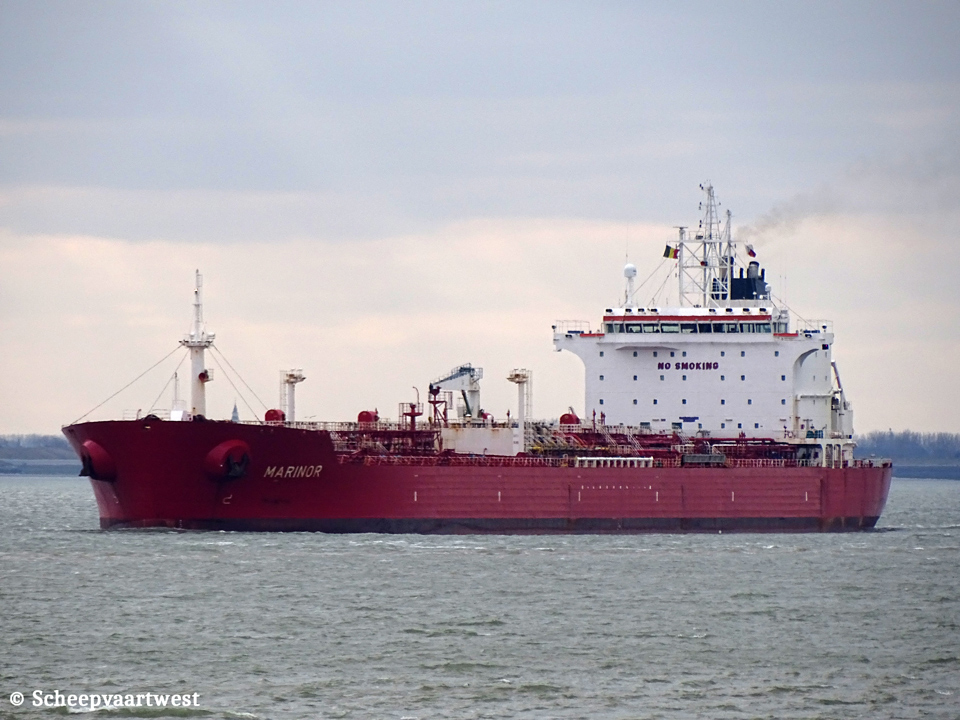

Marinor IMO 9332626 01

Westerschelde 14 February 2020

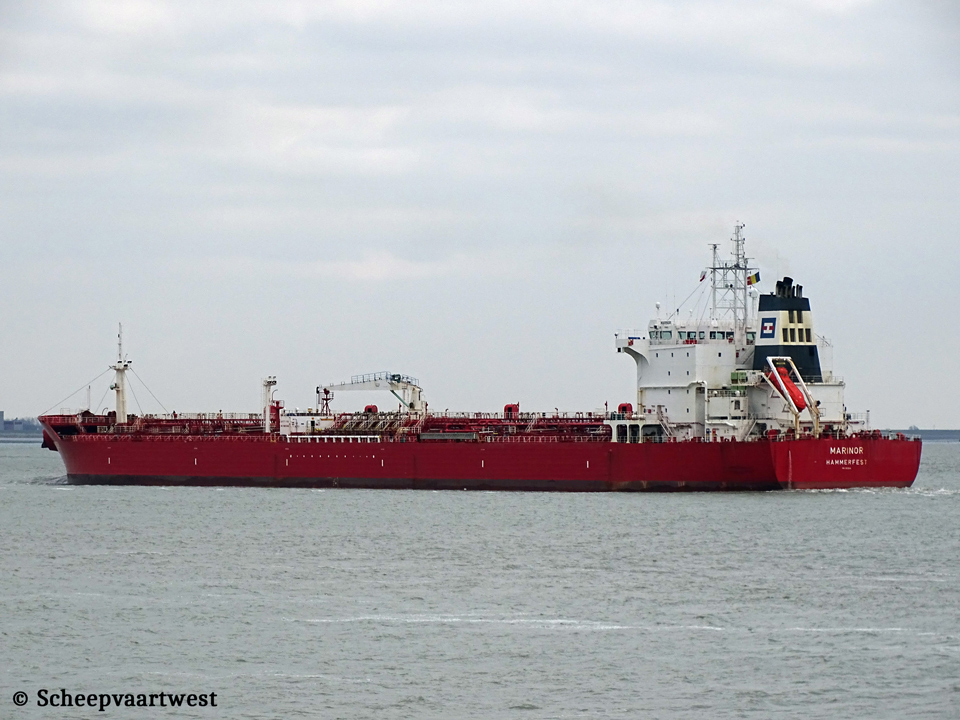

Marinor IMO 9332626 02
Westerschelde 14/02/20













Name

MARINOR

Type

Oil product tanker

IMO-number

9332626

Call sign

LAGQ7

Flag

Norway

Port of registry

Hammerfest

GT

42.893 t

DWT

Summer: 74.997 t

NT

22.043 t

Length

228,59 m overall

221,03 m between perpendiculars

Breadth

32,24 m moulded

Draught

Summer: 14,18 m

Keel to mast end

53,70 m

Depth

20,46 m moulded

Speed

Max: 16,4 knots

Built

2008

Keel laid

02/02/2008

Delivery date

13/11/2008

Builder

Brodosplit brodogradilište d.o.o

Put Supavla 21

Split, HR-21000

Croatia

Yard number

547

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine Mcr 13.560 kW / 18.436 hp at 105,0 rpm

Manufacturer: Brodosplit Tvornica Diesel Motora

Propellers

1x Controllable pitch propeller

Manufacturer: Alstrom Power, Elblag - Poland

Boilers

1x Auxiliary water tube boiler - 7,0 MPa

1x Composite boiler - 7,0 MPa

Manufacturer: TPK Nova

Generators

4x MAN-B&W 6L23/30H main diesel engines each Mcr 1.240 kW connected with generators 910 ekW

Manufacturer: Ulianik Tesu D.D., Pula - Croatia

Emergency generator

1x Caterpillar 3406 diesel generatorset 300 kW

Number of tanks

12 + 2 slop tanks

Cargo tank capacity 98%

Liquid: 83.960 m³

Number of pumps

12x Cargo pumps each 1.000 m³/h

2x Slop tank cargo pumps each 300 m³/h

2x Ballast pumps each 1.500 m²/h

Tank capacities

Fresh water: 670,30 m³

Ballast: 31.818,00 m³

Diesel oil: 158,80 m³

Fuel oil: 2.362,90 m³

Lub oil: 153,60 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - 15,0 t

1x Provision crane - SWL 4,0 t

Accommodation

For 30 persons + 6 Suez crew

Commercial manager

Marinvest Shipping AB

Gothenburg

Sweden

ISM manager

Thome Shipmanagement Pte Ltd.

Republic of Singapore

Registered owner

LR Ice Shipping Eleven Ltd.

c/o Marinvest Shipping AB

Gothenburg

Sweden

Renamed

08/2021 Sunny Liger

Marshall islands, Majuro - Call sign: V7A4949

Owner: Sunny Liger Shipping LLC - Marshall islands

ISM manager: Fleet Management Ltd. - Hong Kong

Latest data adjustment

11 November 2021
