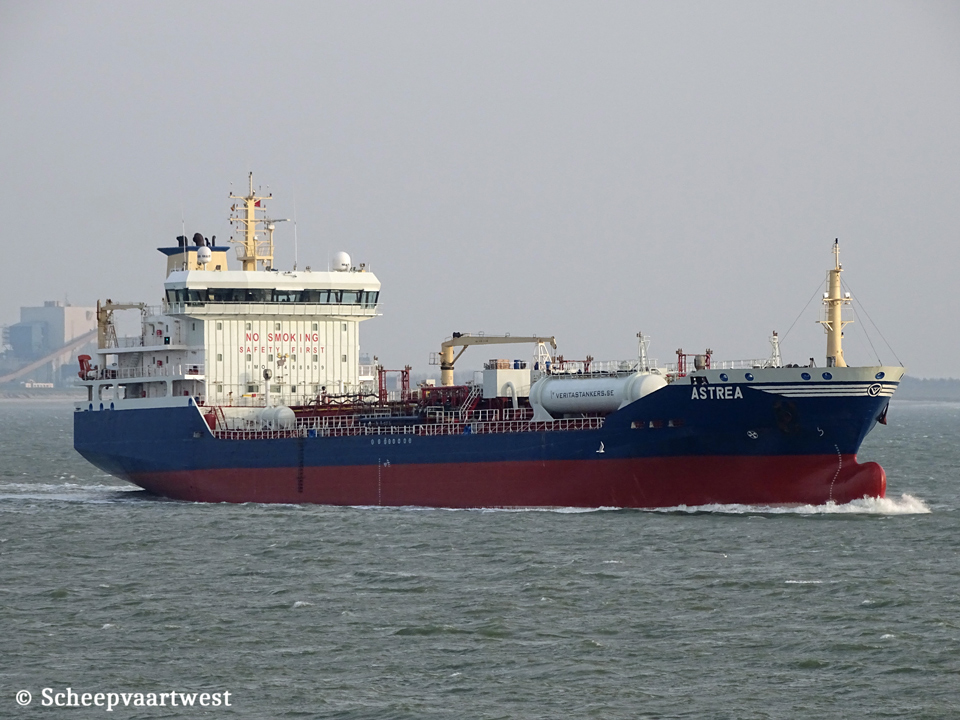

Astrea IMO 9488839 02

Westerschelde 15 December 2018

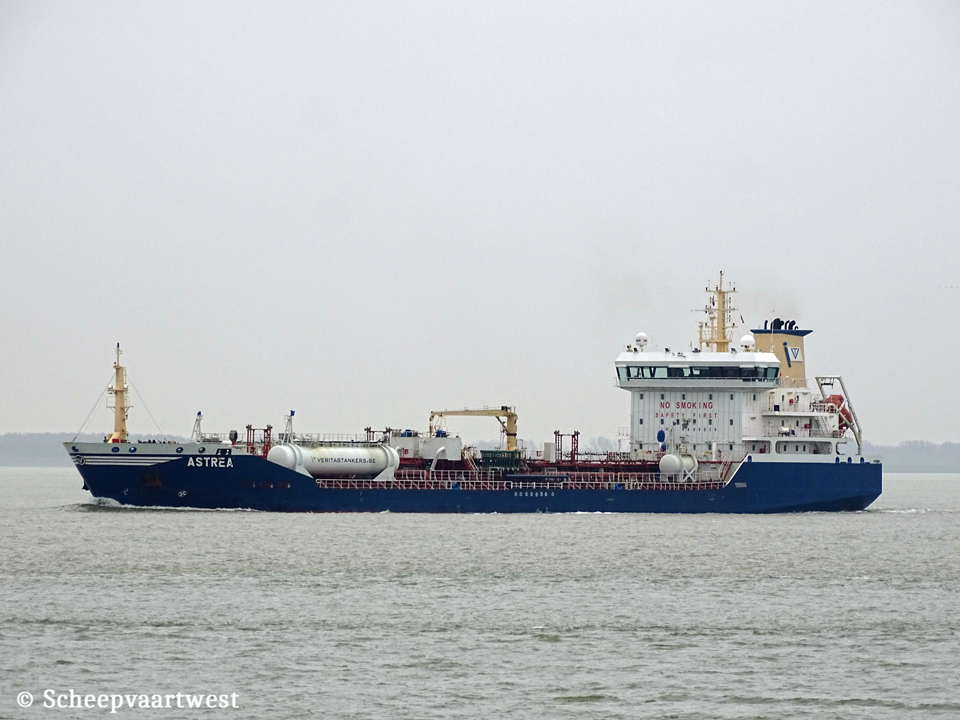

Astrea IMO 9488839 01
Westerschelde 21/03/19


Name

ASTREA

Previous names

Build as: Deha Vardal

2010 - 2015 Varkan Akeniz

2015 - 2018 Akdeniz

Type

Chemical/Product tanker

IMO-number

9488839

Call sign

SBDA

Flag

Sweden

Port of registry

Donsö

Previous flags

2010 - 2015 Turkey, Istanbul - Call sign: TCYK2

2015 - 2018 Malta, Valletta - Call sign: 9HA4140

GT

7.366 t

DWT

Summer: 11.215 t

NT

3.589 t

Length

129,50 m overall

122,70 m between perpendiculars

Breadth

19,80 m

Draught

Summer: 8,15 m

Keel to mast end

36,00 m

Air draft

Summer:27,85 m

Ballast: 32,00 m

Freeboard

Summer: 2.262 mm

Ballast: 5.800 mm

Depth

10,40 m

Speed

13,5 knots

Built

2010

Date of completion

13/10/2010

Builder

Torgem Gemi Insaat Sanayii Tulza (Torgem Shipyard)

Tuzla - Istanbul

Turkey

Yard number

90

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Hanshin LH46LA - 4 stroke single acting 6 cylinder 460 x 880 mm combustion engine 3.309 kW / 4.496 hp at 220 rpm

Build: 08/05/2008

Builder: The Hanshin Diesel Works, Ltd., Akashi - Japan

Propellers

1x Controllable pitch propeller - aft at 109,0 rpm

Diameter: 4.800 mm

Boilers

1x CHS HTI-GESAB GmbH 15,00 m² - 10,0 bar

1x CHS S-MAN 30.,0 m² - 11,0 bar

1x CHR HTI-Gesab GmbH 25,40 m² - 10,0 bar

1x CHO HTI-Gesab GmbH 75,60 m² - 10,0 bar

Shaft generator

1x 720 kW - 440 Volt at 900 rpm

Generators

3x Main diesel generatorsets each 602 kVA - 482 kW - 700 hp / 440 Volt 60 Hz at 1.800 rpm

Emergency generator

1x Diesel generatorset 187 kVA - 150 kW - 247 hp

Bow thruster

1x Tunnel thruster 405 kW / 550 bhp, forward

Number of tanks

14 + 2 slop tanks

Cargo tank capacity

Liquid:

100%: 12.463 m³

98%: 12.214 m³

Number of pumps

12x Marflex MPDP 100 Deepweel cargo pumps each 250 m³/h

2x Marflex MPDP 80 Deepweel cargo pumps each 80 m³/h

2x Electrical driven centrifugal ballast pump each 400 m³/h

Manifolds

Distance manifolds to bow: 65,00 m

Tank capacities

Fuel: 671 m³

Lifting equipment

1x Gurdesan hoses crane - SWL 5,0 t

1x Rescue boat, life raft & provision crane - SWL 2,0 t

ISM & commercial manager

Veritas Tankers AB

Tjärebergsvägen 10

SE-430 82 Donso

Sweden

Registered owner

Veritas Tankers AB

Tjärebergsvägen 10

SE-430 82 Donso

Sweden

Previous names & owners

Build as: Deha Vardal - Deha Vardal Gemicilik, Istanbul - Turkey

2010 - 2015 Varkan Akeniz - Chemfleet, Istanbul - Turkey

2015 - 2018 Akdeniz - Scot Gemi İşletmeciliği - Turkey

Latest data adjustment

14 December 2023
