Malaga, Spain 10 July 2021 |
|
Name |

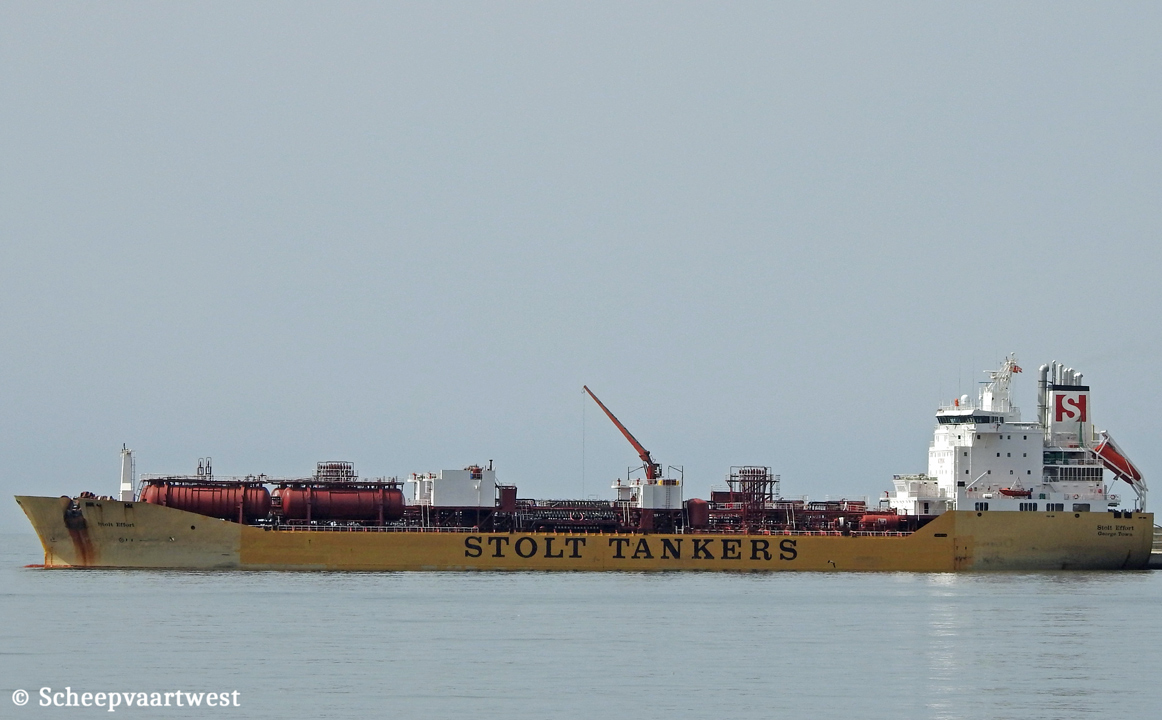

STOLT EFFORT |
|
Type |
Tanker for chemicals |
|
IMO-number |
9178202 |
|
Call sign |
ZCSP6 |
|
Flag |
Cayman Islands |
|
Port of registry |
George Town |
|
GT |
24.509 t |
|
DWT |
Summer: 37.155 t |
|
NT |
11.919 t |
|
Length |
176,75 m overall 168,50 m between perpendiculars |
|
Breadth |
31,10 m extreme |
|
Draught |
Summer: 11,89 m |
|
Keel to mast end |
45,87 m |
|
Depth |
15,61 m |
|
Speed |
Max: 16,2 knots |
|
Built |
1999 |
|
Keel laid |
10/02/1999 |
|
Launch date |
11/09/1999 |
|
Date of completion |
14/12/1999 |
|
Builder |
Danyard A/S Frederikshavn Denmark |
|
Yard number |
738 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Bulkheads |
Transverse: 7 |
|
Main engine |
3x Wärtsilä 9R32 - 4 stroke 9 cylinder 320 x 350 mm combustion engines 12.095 kW / 16.443 hp at 750 rpm Builder: Wärtsilä NSD Finland, Turku - Finland |
|
Main generator engines |
3x Vasa 9R32LN 1x Vasa 6R32LN Builder: Wärtsilä Finland Oy |
|
Propulsion |
Diesel/ electric |
|
Propellers |
1x Fixed pitch mono-block propeller Builder: Wärtsilä Propulsion Netherlands B.V. |
|
Boilers |
1x Auxiliary boiler, oil/gas fired AQ9 2x Auxiliary boiler, exhaust gas heated AV-9 Builder: Aalborg Industries A/S |
|
Emergency generator |
1x Scania DS 11 diesel generatorset 398 kW |
|
Bow thruster |
1x 1.000 kW / 1.360 hp |
|
Number of tanks |
40 |
|
Cargo tank capacity |
39.818 m³ |
|
Number of pumps |
17x Cargo pumps each 300 m³/h 31x Cargo pumps each 200 m³/h |
|
Tank capacities |
Ballast: 15.189,7 m³ |
|
Anchor equipment |
Length: 632,50 m |
|
ISM & Commercial manager |
Stolt Tankers B.V. Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Registered owner |
Stolt Effort BV Care of Stolt Tankers BV Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Latest data adjustment |
03 October 2021 |
