Westerschelde 27 December 2018 |
 |
 |
 |
||
| Westerschelde 27/12/18 | Westerschelde 04/01/20 | Westerschelde 04/01/20 | ||
|
Name |

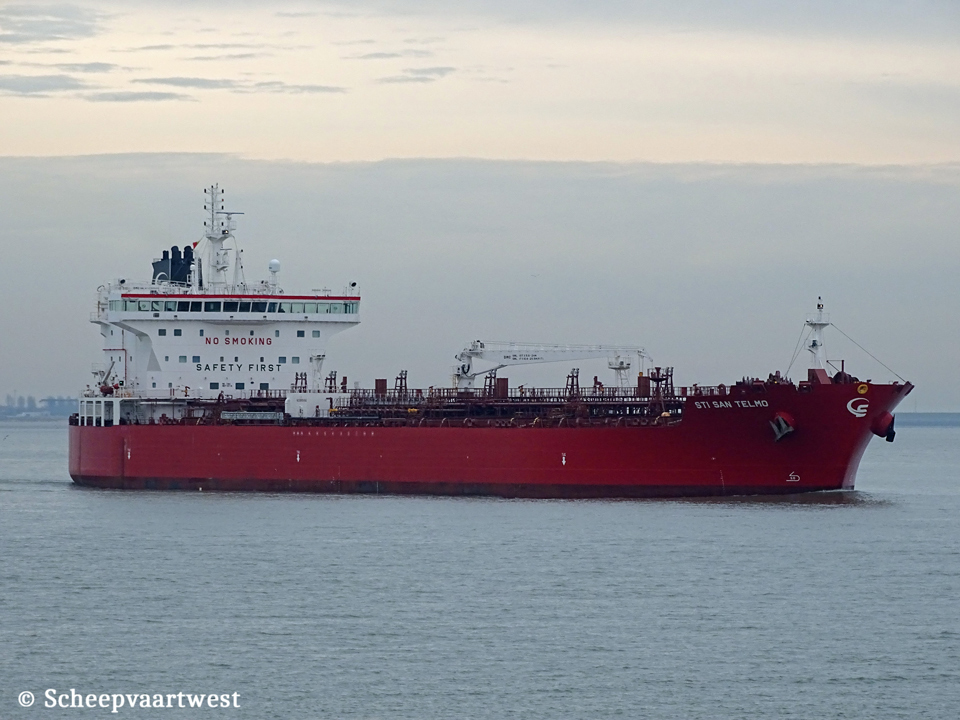

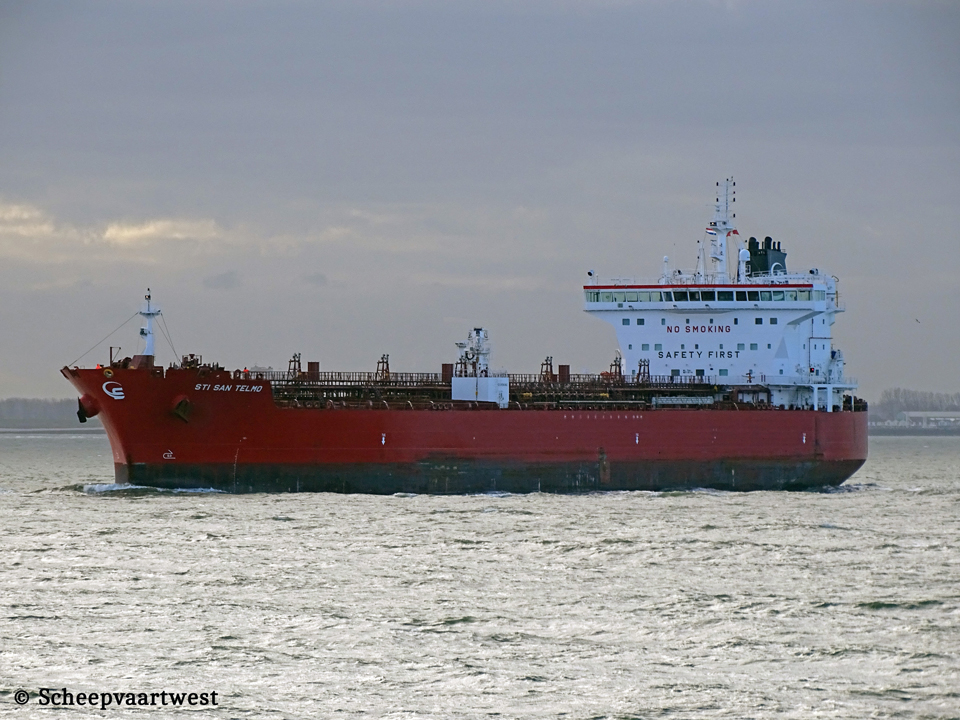

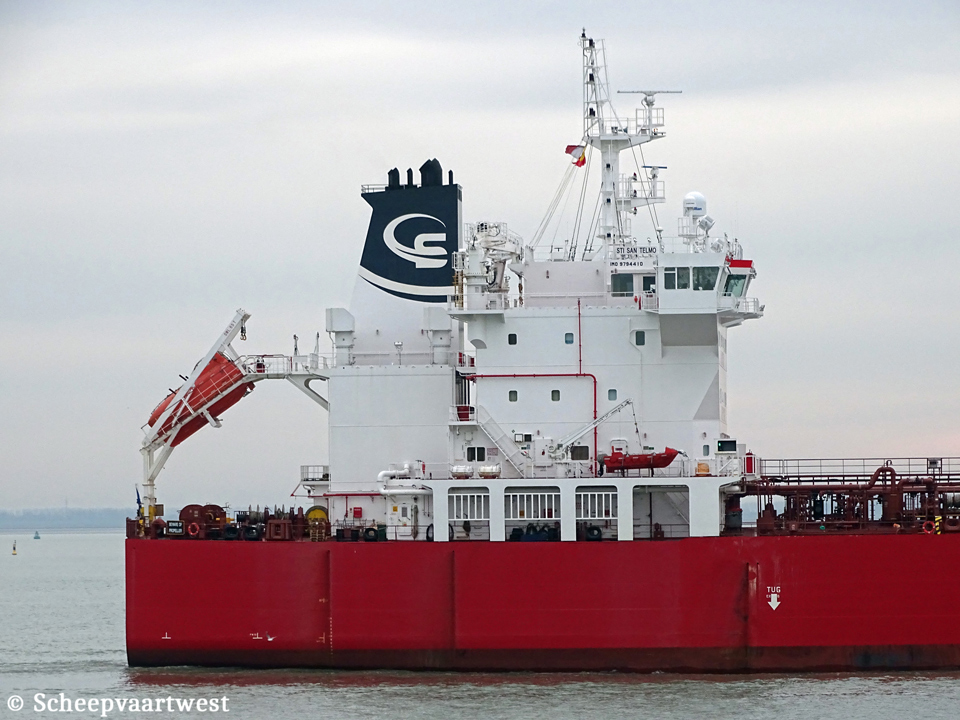

STI SAN TELMO |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9794410 |
|
Call sign |
V7VD8 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.804 t Suez: 31.516,62 t |
|
DWT |
51.260 t |
|
NT |
13.718 t Panama: 24.748 t Suez: 27.334,96 t |
|
Displacement |
60.939 t |
|
Length |
183,34 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,11 m |
|
Freeboard |
6.022 m |
|
Depth |
19,10 m |
|
Speed |
Max: 16,9 knots |
|
Built |
2017 |
|
Keel laid |
01/12/2015 |
|
Launch date |
09/06/2017 |
|
Delivery date |
27/09/2017 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2605 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI/MAN-B&W 6S50ME-B9.5 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 9.230 kW at 101,3 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler Aalborg OL - 9,0 MPa 1x Composite boiler Aalborg OC-TCi - 9,0 MPa Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 800 kW Manufacturer: HHI Electro Electric System |
|
Number of tanks |
12 |
|
Cargo tank capacity |
55.539,2 m³ |
|
Tank capacities |
Diesel oil: 233,70 m³ Ballast: 22.261,20 m³ Fresh water: 429,70 m³ Fuel oil: 1.469,30 m³ Lub oil: 108,60 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane port - SWL 4,0 t 1x Provision crane Stbd - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
25 |
|
Manager |
Scorpio Marine Managemant India Pvt Ltd. 101, Central Ave, Marg, Hiranandani Gardens, Sainath Nagar, Powai Mumbai, Maharashtra 400076 India |
|
Registered owner |
SPDBFL No. One One Two (Shanghai) Ship Leasing Company Limited |
|
Latest data adjustment |
19 June 2021 |
