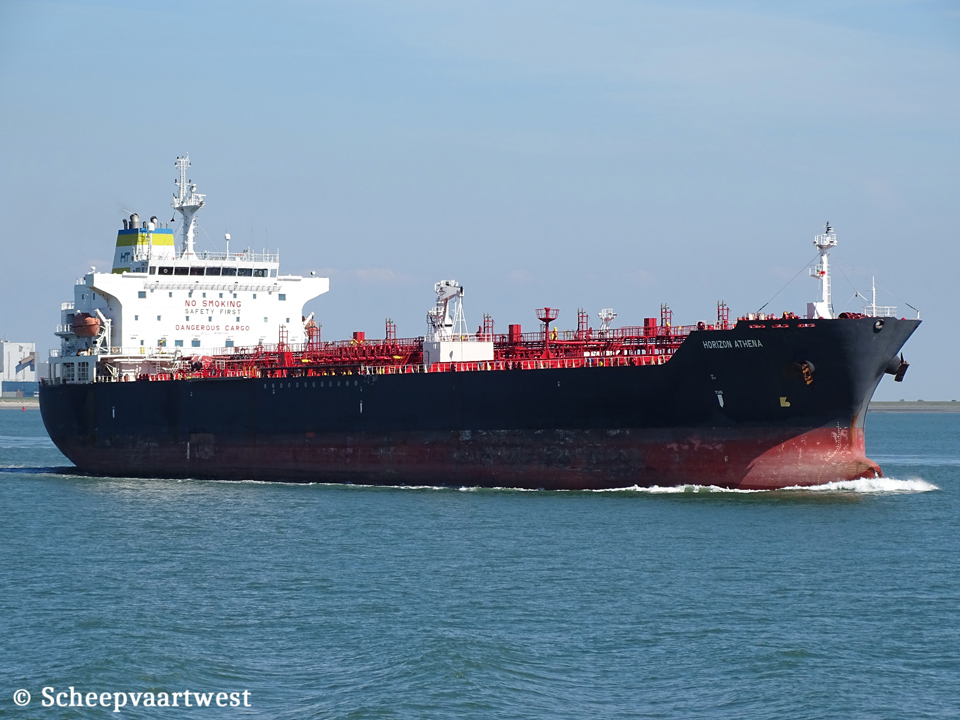

Horizon Athena IMO 9407378 02

Westerschelde 13 July 2020

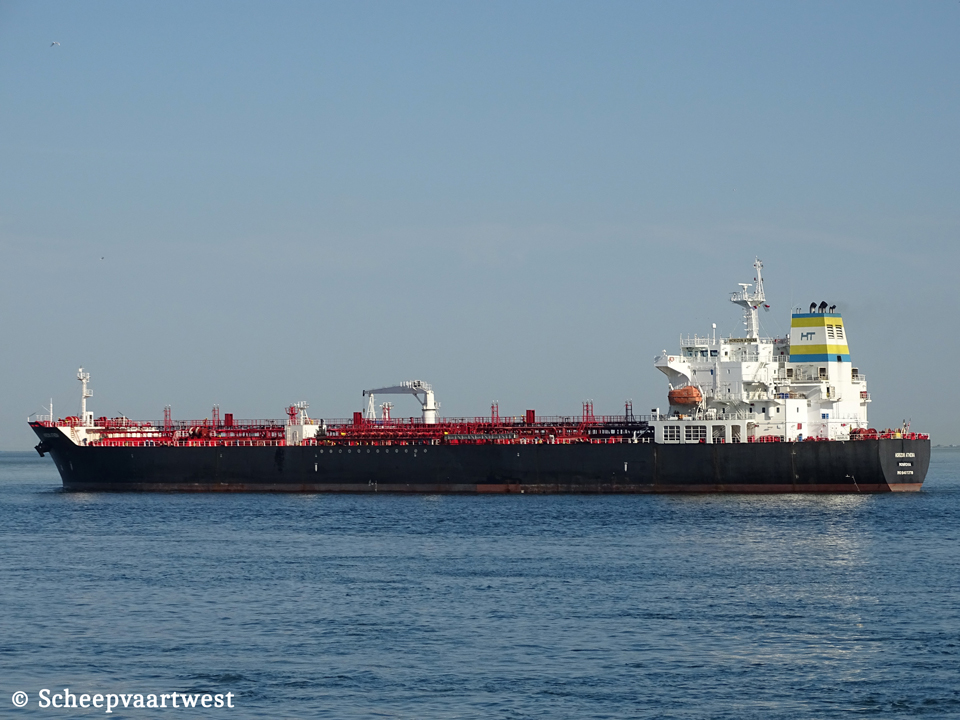

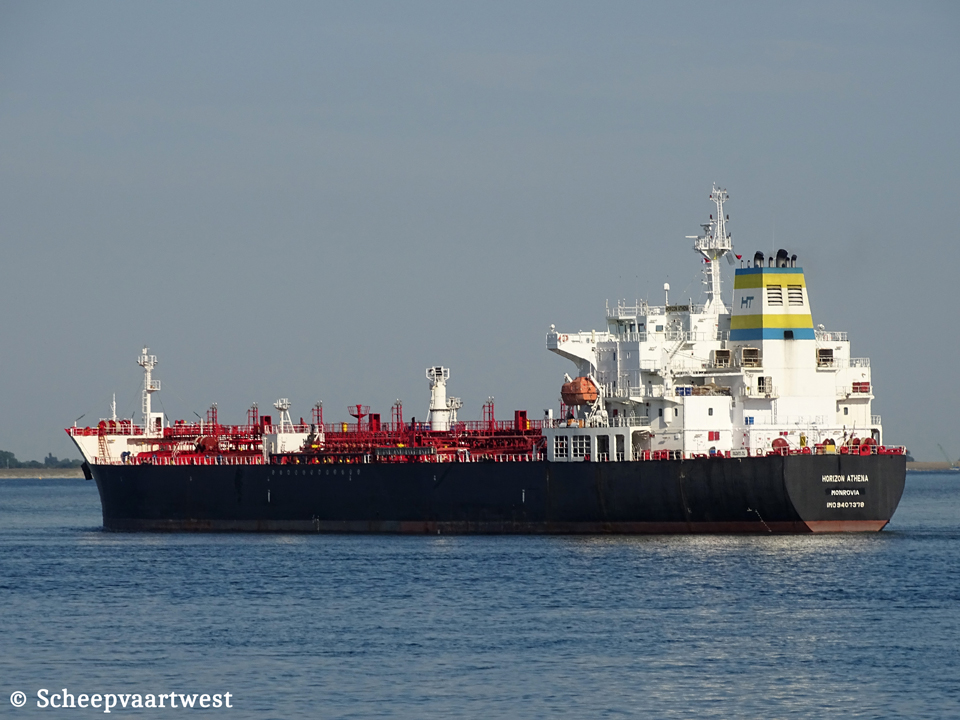

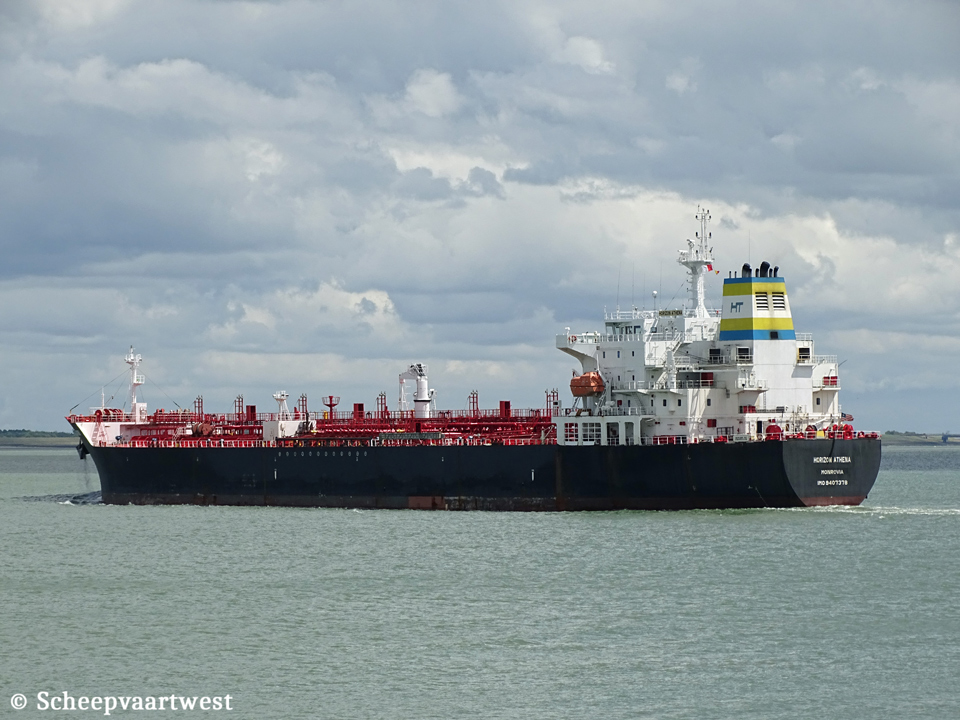

Horizon Athena IMO 9407378 01   Horizon Athena IMO 9407378 03   Horizon Athena IMO 9407378 05
Westerschelde 10/07/20   Westerschelde 23/07/19   Westerschelde 23/07/19


Name

HORIZON ATHENA

Type

Oil product tanker

IMO-number

9407378

Call sign

A8RI9

Flag

Liberia

Port of registry

Monrovia

Previous flags

Venezuela, Las Piedras - Call sign: YYMY

GT

29.828 t

DWT

Summer: 50.242,21 t

NT

13.429 t

Displacement

60.972 t

Lightship

10.645 t

Length

183,05 m overall

174,00 m between perpendiculars

Breadth

32,23 m extreme

Draught

Summer: 13,08 m

Keel to mast end

47,82 m

Forecastle

16,10 m

Deckhouse

20,80 m

Freeboard

6.052 mm

Depth

19,10 m moulded

Speed

Service: 14,9 m

Built

2008

Date of completion

05/12/2008

Builder

SPP Shipbuilding Co., Ltd.

Tongyeong

South Korea

Yard number

H1019

Hull material

Steel

Hull type

Double hull

Bulkheads

10

Continuous decks

1x Upper deck

Main engine

1x Doosan/MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm

Build: 30/05/2008

Manufacturer: Doosan Engine Co., Ltd. - South Korea

Propellers

1x Fixed pitch propeller - aft at 127,0 rpm

Boilers

1w Exhaust boiler - Aalborg Mission XW

1x Auxiliary boiler - Aalborg Mission OL

Generators

3x Yanmar 6N21AL-EV - 4 stroke 6 cylinder 210 x 290 mm diesel engines each 970 kW / 12.889 hp connected with generators each 900 kW - 450 Volt 60 Hz

Number of cargo tanks

12

Cargo tank capacity

100%: 54.620 m³

98%: 52.116,32 t

Slop tank capacity

98%: 1.396,26 m³

Number of slop tanks

2

Number of pumps

12x Deepwell cargo pumps each 600 m³/h

Manifolds

Bow to centre manifolds: 91,18 m

Tank capacities

Ballast: 23.031 m³

Lifting equipment

1x Hose handling crane - SWL 15,0 t

Crew

19

Manager

V Ships UK Ltd.

Glasgow

United Kingdom

Registered owner

Silverado Navigation SA, Liberia

Care of Horizon Tankers Limited S.A.

Kaningos 24

Pireas 185 34

Greece

Latest data adjustment

11 December 2021
