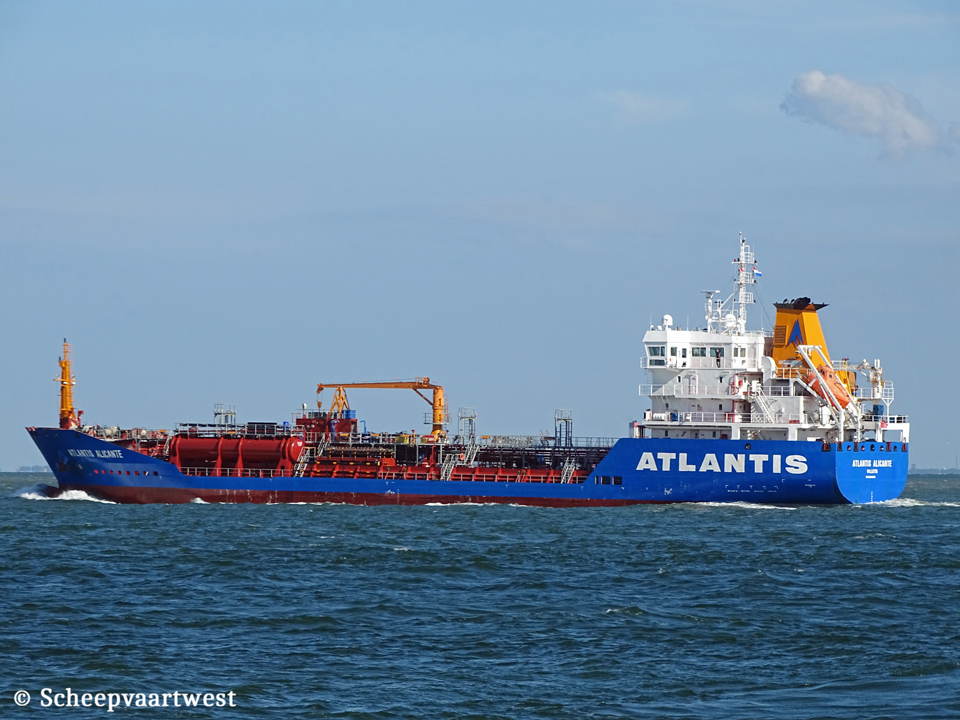

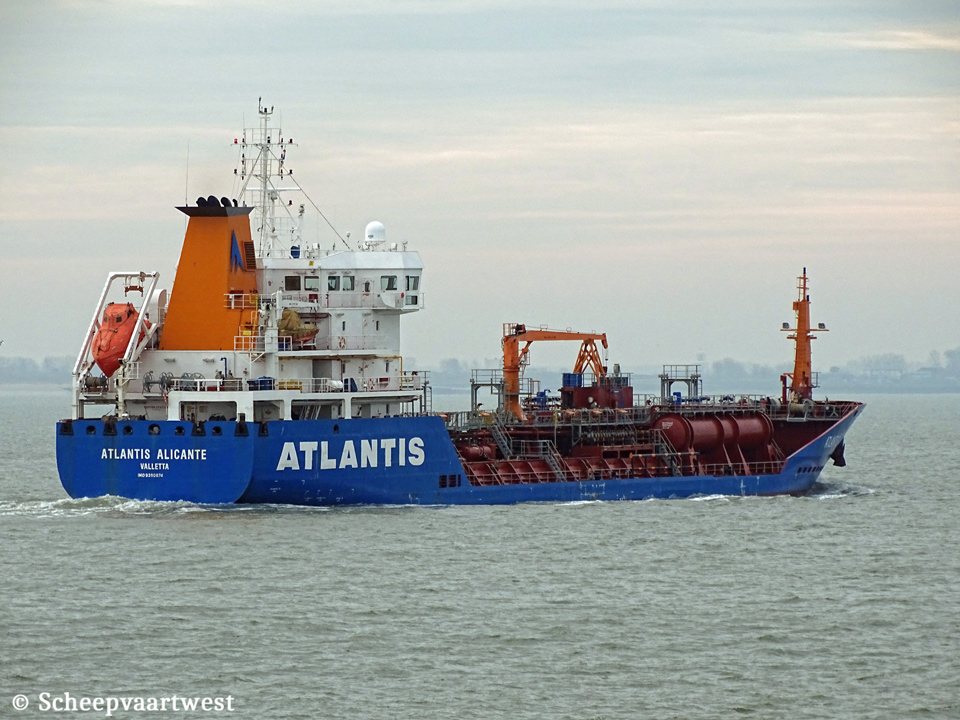

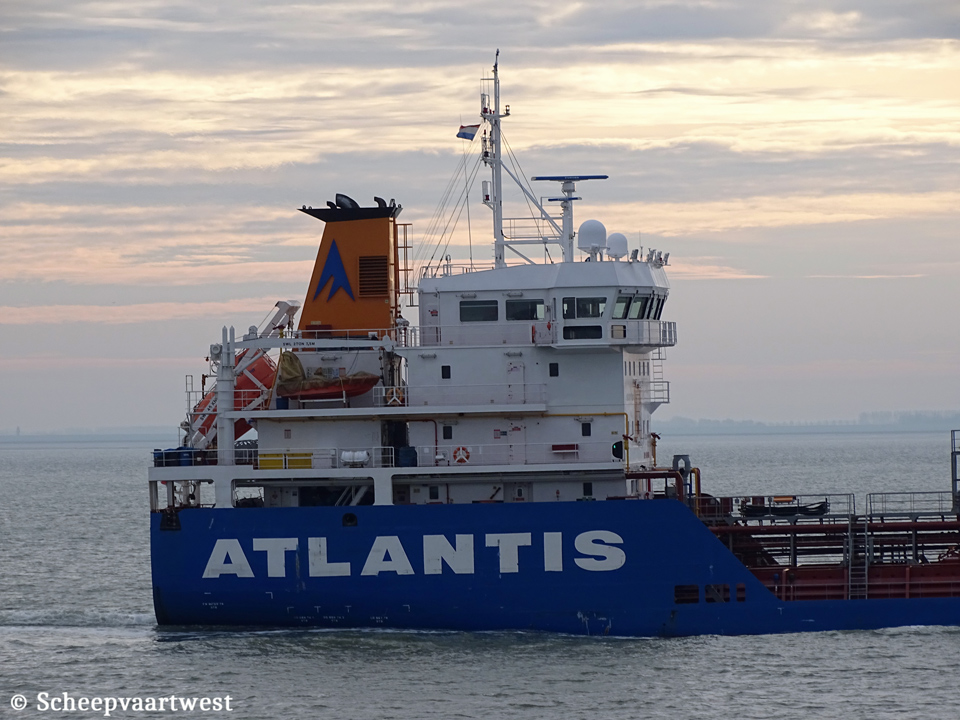

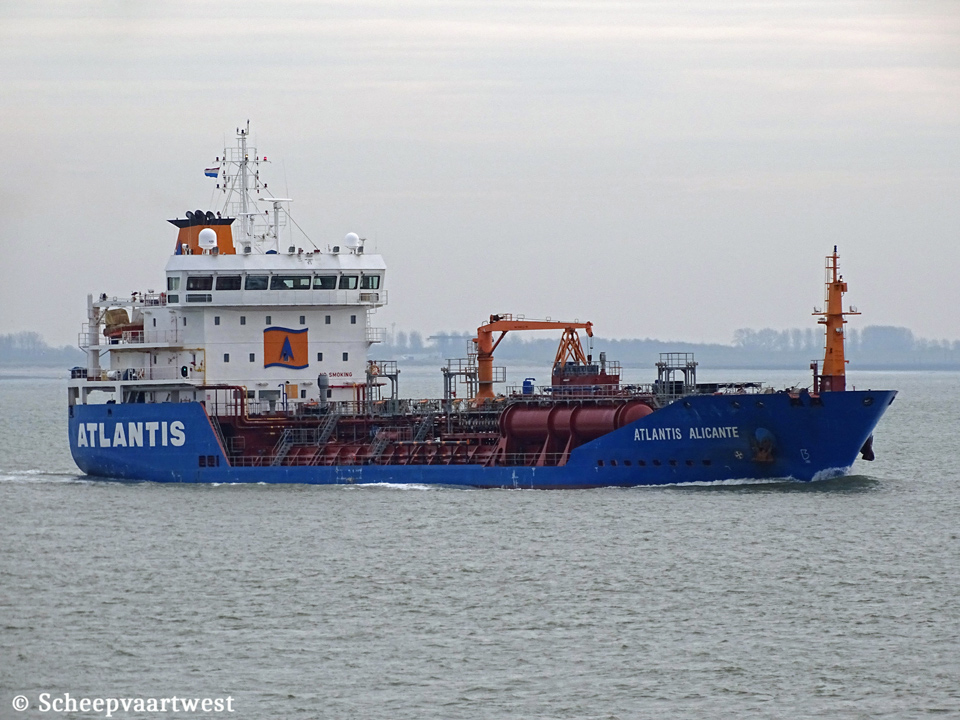

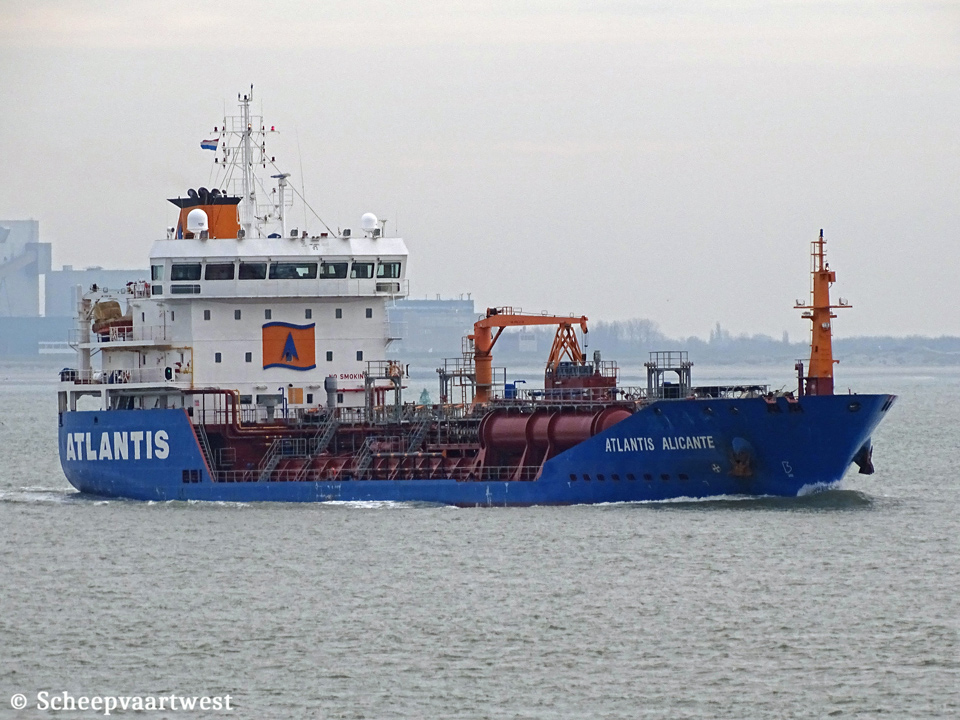

Atlantis Alicante IMO 9390874 01

Westerschelde 29 December 2019


Atlantis Alicante IMO 9390874 02   Atlantis Alicante IMO 9390874 04   Atlantis Alicante IMO 9390874 03   Atlantis Alicante IMO 9390874 05
Westerschelde 29/12/19 Westerschelde 29/12/19 Westerschelde 29/12/19 Westerschelde 01/07/19


Name

ATLANTIS ALICANTE

Type

Oil tanker / Chemical tanker

IMO-number

9390874

Call sign

9HA4600

Flag

Malta

Port of registry

Valletta

GT

4.028 t

DWT

Summer: 5.671,9 t

NT

1.815 t

Length

105,50 m overall

98,41 m between perpendiculars

Breadth

16,80 m moulded

Draught

Summer: 6,29 m

Freeboard

1.120 mm

Depth

7,40 m to main deck

Speed

Service: 11,5 knots

Max: 14,5 knots

Built

2017

Date of completion

06/10/2017

Builder

Selah Makina Sanayi ve Ticaret A.S.

Tuzla - Istanbul

Turkey

Yard number

77

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Hyundai/Himsen 9H25/33 - 4 stroke single acting 9 cylinder 250 x 330 mm combustion engine 2.400 kW / 3.261 hp at 900 rpm

Builder: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1x Controllable pitch propeller - aft at 148,0 rpm

Boilers

2x CHO Tube Tec Rohrverform 60,00 m² - 10.00 bar

1x CHO PWT Prozess-Waermetr 13,20 m² - 10.00 bar

1x CHR Tube Tec Rohrverform 52,90 m² - 10.00 bar

Shaft generator

1x 900 kW

Generators

3x MAN D2876LE diesel engine each 370 kW / 570 hp connected with generators each 330 kW / 463 kVA - 60 Hz

Emergency generator

1x Diesel generatorset 258 kVA - 206 kW - 255 hp

Bow thruster

1x Tunnel thruster 338 kW / 460 bhp, forward

Number of cargo tanks

10

Cargo tank capacity 98%

6.270 m³

Number of slop tanks

2

Segregation

10x segregation with double valves

Number of pumps

10x Marflex electrical driven cargo pumps each 200 m³/h

Tank capacities

Fuel: 421,49 m³

Commerical manager

Atlantis tankers

Technical manager

Armona Denizcilik AS

Muallim Naci Caddesi 47, Ortakoy Mah, Besiktas

34347 Istanbul

Turkey

Registered owner

Alicante Shipping Ltd.

Latest data adjustment

18 March 2021
