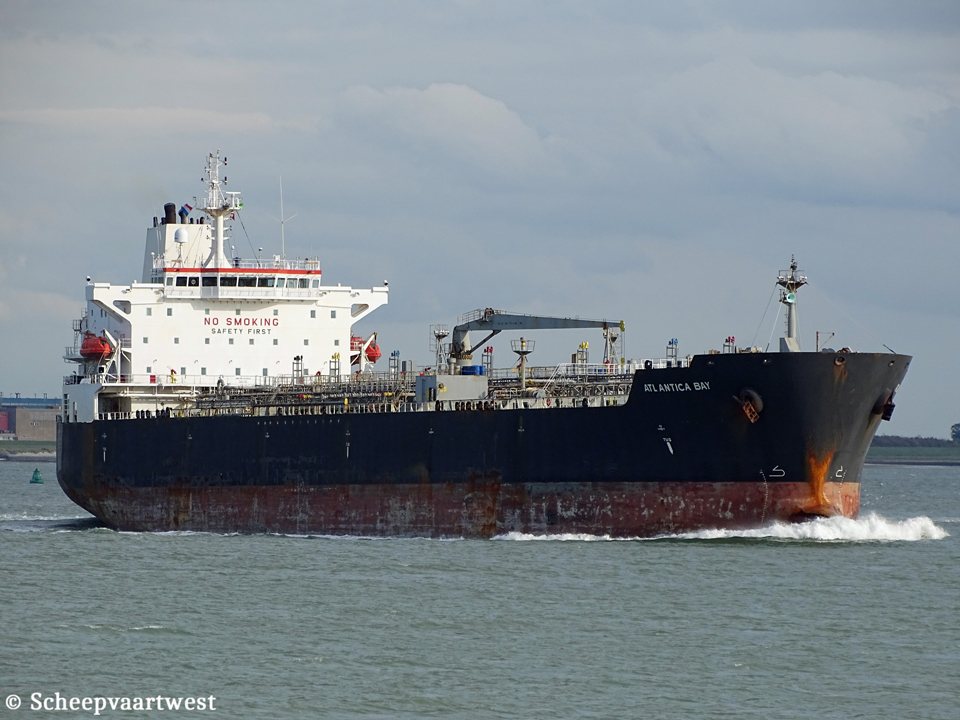

Atlantica Bay IMO 9379131 05

Westerschelde 09 October 2020

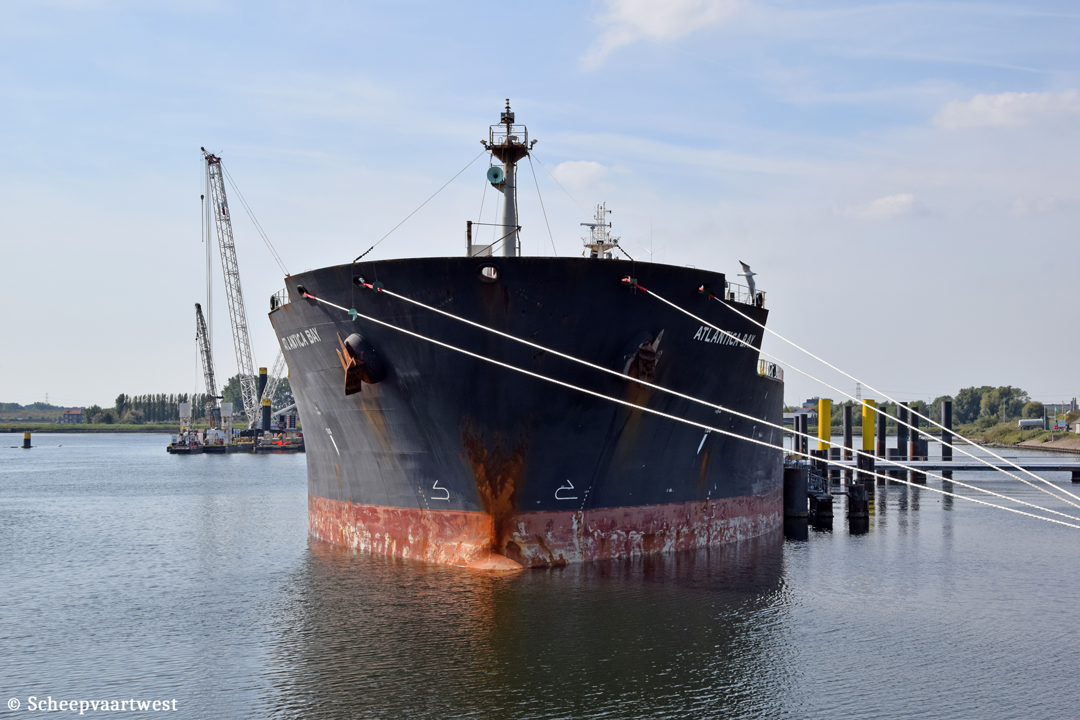

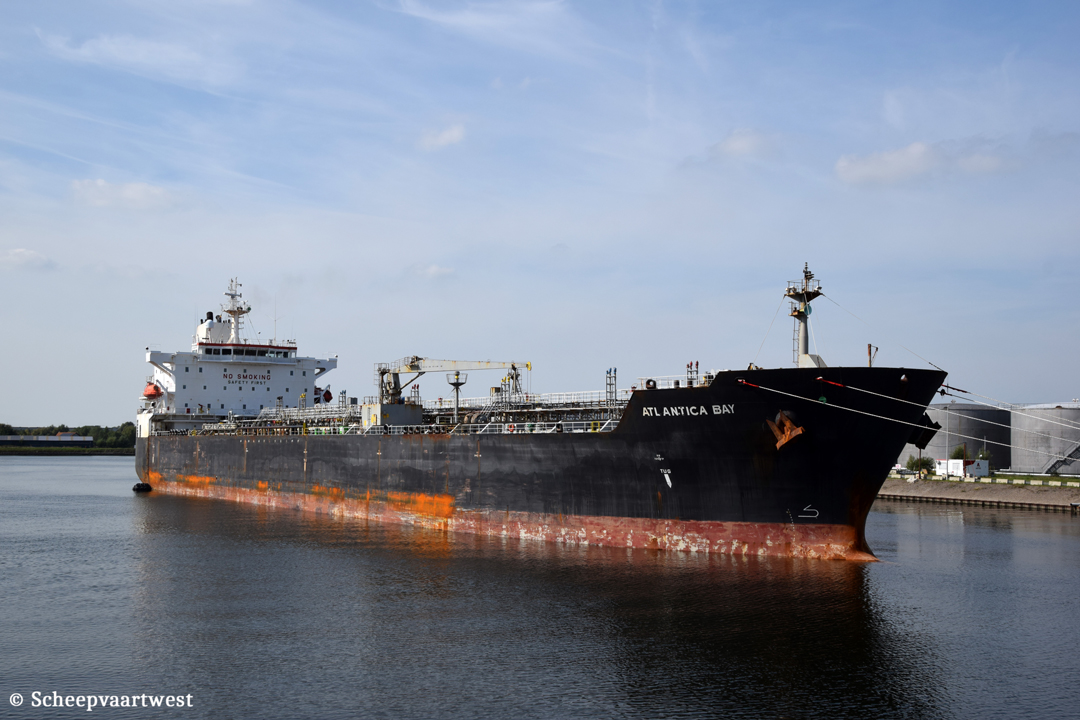

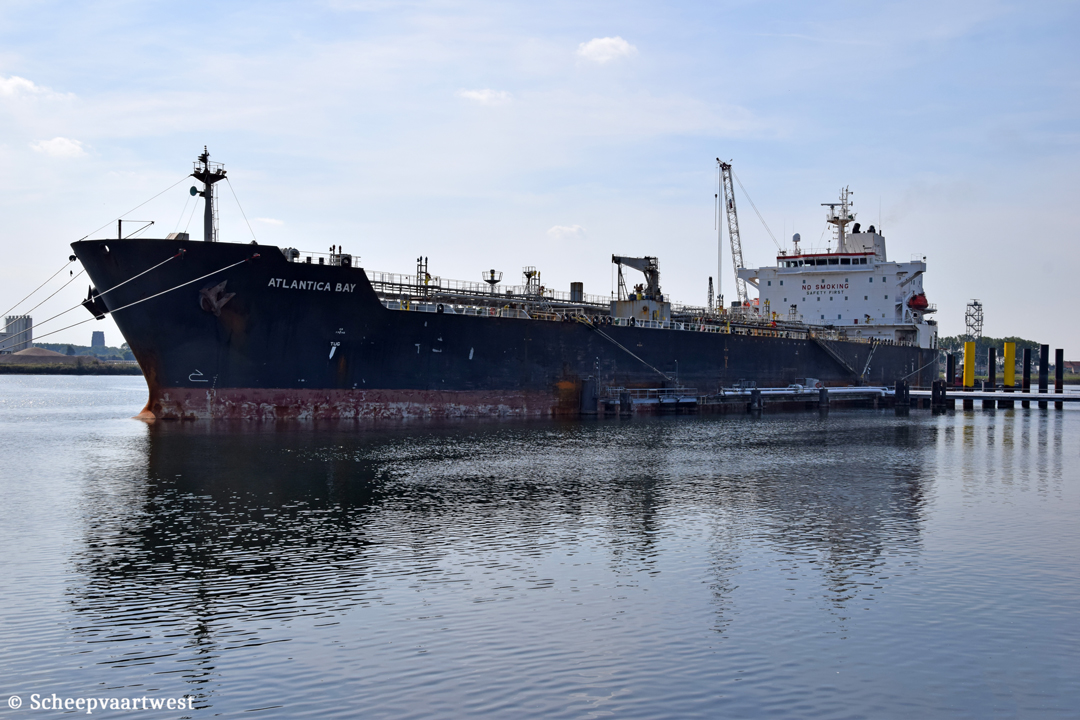

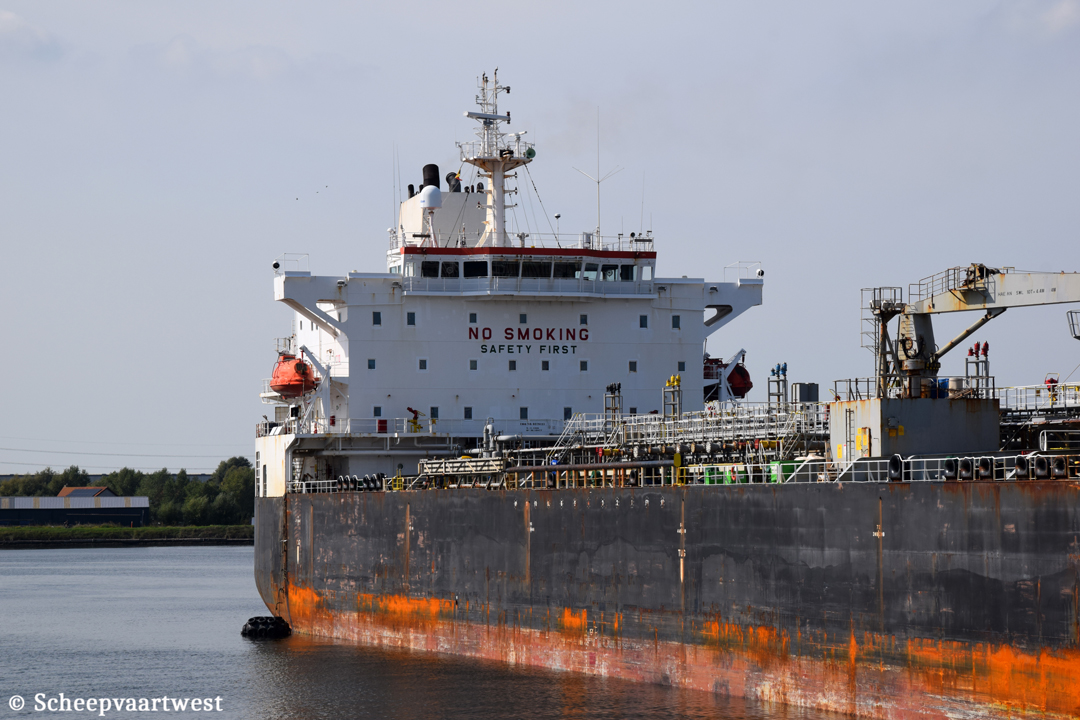

Atlantica Bay IMO 9379131 01   Atlantica Bay IMO 9379131 03   Atlantica Bay IMO 9379131 02   Atlantica Bay IMO 9379131 04
Zeebrugge 22/09/22   Zeebrugge 22/09/22   Zeebrugge 22/09/22   Zeebrugge 22/09/22




Name

ATLANTIC BAY

Previous names

2007 Build as: Fr8 Fortitude

12/2007 - 03/2012 Stena Fr8 2

03/2012 - 01/2013 Fr8 Fortitude

01/2013 - 15/02/2019 MR Kentaurus

Type

Oil and chemical carrier

IMO-number

9379131

Call sign

D5SV3

Flag

Liberia

Port of registry

Monrovia

Previous flags

2007 - 2019 Marshall Island, Majuro - Call sign: V7MV6

GT

29.597 t

Suez: 30.933,52 t

DWT

Summer: 46.763 t

NT

11.929 t

Suez: 26.659,39 t

Displacement

56.250,90 m³

Length

183,00 m overall

174,48 m between perpendiculars

Breadth

32,20 m moulded

Draught

12,20 m

Freeboard

6.613 mm

Depth

18,80 m

Speed

Service: 14,0 knots

Built

2007

Keel laid

02/02/2007

Launch date

17/08/2007

Delivery date

27/11/2007

Builder

Sungdong Shipbuilding And Marine Engineering Co., Ltd.

1609-2, Hwang-Li, Gwangdo-Myeon Tongyoung-Si, Gyeongsangnam-Do, 650-827

South Korea

Yard number

S3012

Hull material

Steel

Hull type

Double hull

Main engine

1x Doosan/MAN-B&W 6S50MC-C Mk7 - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Sil La Metal Co.

Boilers

1x Auxiliary boiler - 8,83 MPa

1x Exhaust gas (waste heat) boiler - 12,0 MPa

Manufacturer: Aalborg Industries Ltd.

Generators

3x Yanmar 6N21AL-SV main diesel generatorsets each 900 kW

Manufacturer: Taiyo Electric Co., Ltd.

Emergency generator

1x Cummins 6CT-8.3-D(M) diesel generatorset

Cargo tank capacity

54.372,02 m³

Pumps

12x Cargo pumps each 600 m³/h

2x Cargo pumps each 300 m³/h

Tank capacities

Fresh water: 353,58 m³

Fuel oil: 2.644,28 m³

Ballast: 24.267,90 m³

Diesel oil: 127,80 m³

Lube oil: 140,89 m³

Anchor equipmet

Length: 630,60 m

Diameter: 73 mm

Lifting equipment

1x Electric provision crane - SWL 5,0 t

1x Engine room crane - SWL 2,5 t

1x Hose handling crane - SWL 10,0 t

Manufacturer: SPP Machine Tech

ISM & commercial manager

Barber Ship Management Germany GmbH & Co, .KG

Palmaille 67

22767 Hamburg

Germany

Owner

Atlantica Bay AS

Latest data adjustment

24 October 2022
