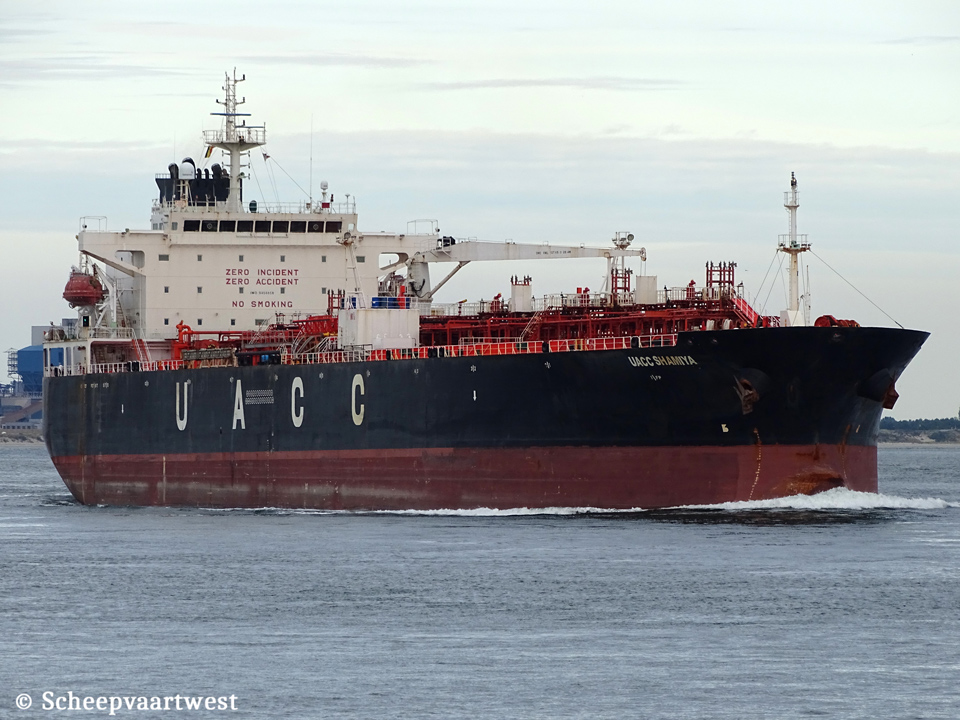

Westerschelde 09 July 2019 |
|
Name |
UACC SHAMIYA |
|
Previous names |
2011 - 07/2014 Bunga Begonia |
|
Type |
Oil product tanker |
|
IMO-number |
9458858 |
|
Call sign |
V7FU4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2011 - 2014 Malaysia - Call sing: 9MLR7 |
|
GT |
29.124 t Suez: 30.644,91 t |
|
DWT |
Summer: 45.612,00 t Winter: 44.193,26 t |
|
NT |
11.608 t Suez: 26.236,82 t Panama: 24.763 t |
|
Displacement |
Summer: 56.610,80 t Winter: 55.293,26 t |
|
Length |
183,00 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 12,17 m Winter: 11,91 m |
|
Keel to masthead |
46,20 m |
|
Air draft |
Lightship: 43,35 m Normal ballast: 37,47 m At loaded summer deadweight: 34,03 m |
|
Freeboard |
Summer: 6.764 mm Winter: 7.017 mm |
|
Depth |
18,90 m moulded |
|
Speed |
15,0 knots |
|
Built |
2011 |
|
Date of completion |
12/04/2011 |
|
Builder |
SLS Shipbuilding Co., Ltd. Tong Yeong South Korea |
|
Yard number |
626 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 5S60MC-C - 5 cylinder combustion engine 8.539 kW at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Hyundai Himsen 7H17/28 - 4 stroke 7 cylinder 170 x 280 mm diesel generatorsets each 840 kW |
|
Number of cargo tanks |
22 |
|
Total tank capacity (98%, excluding slop tanks) |
50.681,96 m³ |
|
Segregation |
22 |
|
Slop tank capacity 98% |
1.752,43 m³ |
|
Number of pumps |
12x Submersible, centrifugal, Framo cargo pumps SD200-6 DTHH200- C401 each 500 m³/h 8x Submersible, centrifugal, Framo cargo pumps SD150-5 DTHH107- B309 each 360 m³/h 2x Submersible, centrifugal, hydraulic Framo cargo pumps SD150-5 DTHH107-B309 each 300 m³/h 2x Submersible, centrifugal, Framo ballast pumps SB300-4 MUHH168- A405 each 800 m³/h |
|
Manifolds |
Bow to centre manifold: 94,40 m Stern to centre manifold: 88,60 m Distance bridge front to centre of manifold: 53,40 m Distance between cargo manifold centres: 580 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 1.350 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
IFO: 1.525,1 m³ MDO: 229,8 m³ MGO: 81,6 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t Outreach: Max: 4,50 m |
|
Crew |
19 |
|
Technical operator |
Selandia Ship Management (India) Pvt. Ltd. R 102 Remi Bizcourt, Plot No 9 Shah Industrial State, Andheri West Mumbai - 400053 India |
|
Commercial operator |
UACC - United Arab Chemical Carriers Ltd. Suite 08, Level 23, Emirates Financial Towers (South) Dubai International Financial Centre Dubai United Arab Emirates |
|
Registered owner |
Shamiya Tankers Inc. The Trust Company Complex Ajeltake Road MH 96960 Ajeltake Island Republic of Marshall Islands |
|
Previous names & owners |
2011 - 07/2014 Bunga Begonia - Malaysia International Sg Corp Bhd. |
|
Latest data adjustment |
25 November 2020 |
