Westerschelde 10 September 2018 |
|
Name |

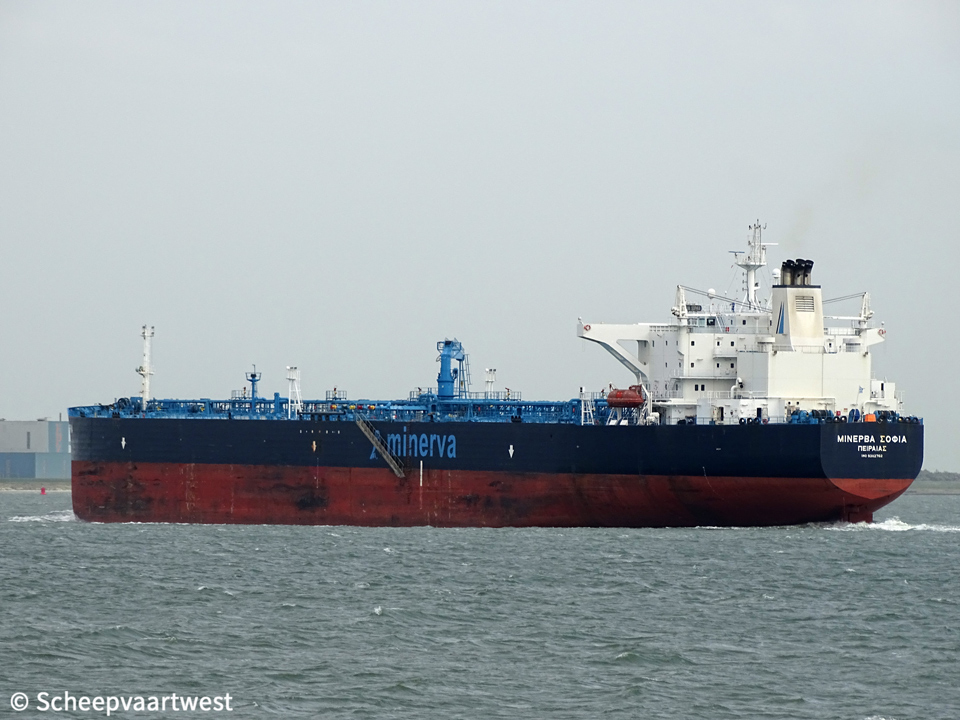

MINERVA SOPHIA |
|
Type |
Tanker for oil products - Aframax |
|
IMO-number |
9382762 |
|
Call sign |
9HA5121 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2009 - 2019 Greece, Piraeus - Call sign: SVAT8 |
|
GT |
61.382 t registered |
|
DWT |
115.748,1 t |
|
NT |
35.396 t registered |
|
Displacement |
Lightship: 17.581,70 t |
|
Length |
248,96 m overall 239,00 m between perpendiculars |
|
Breadth |
43,83 m extreme |
|
Draught |
14,93 m |
|
Freeboard |
Summer: 6.070 mm |
|
Depth |
21,00 m |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Keel laid |
08/06/2009 |
|
Launch date |
11/07/2006 |
|
Date of completion |
11/09/2009 |
|
Builder |
Samsung Heavy Industries Co. Ltd., Koje Shipyard South Korea |
|
Yard number |
1683 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 6S60MC-C - 2 stroke 6 cylinder combustion engine 11.526 kW /18.420 bhp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 2x Auxiliary boiler, oil/gas fired Manufacturer: Kangrim |
|
Generators |
3 Yanmar 8N21L-SV main diesel generatorsets each 900 kW Manufacturer: Yanmar Power Technology Co., Ltd. |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset |
|
Number of tanks |
12 |
|
Cargo tank capacity 98% |
Total: 123.644,00 m³ (excluding slop tanks) |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
3.868.60 m³ |
|
Pumps |
3x Cargo pumps each 2.800 m³/h |
|
Tank capacities |
Water ballast: 42.153 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 90 mm |
|
Lifting equipment |
2x Crane - SWL 15,0 t |
|
Crew |
24 |
|
Manager |
Minerva Marine Inc. Par. Leof. Vouliagmenis 141 Voula - Athens 166 73 Greece |
|
Registered owner |
Sangallo Maritime Ltd. c/o Minerva Marine Inc. Par. Leof. Vouliagmenis 141 Voula - Athens 166 73 Greece |
|
Latest data adjustment |
07 November 2020 |
