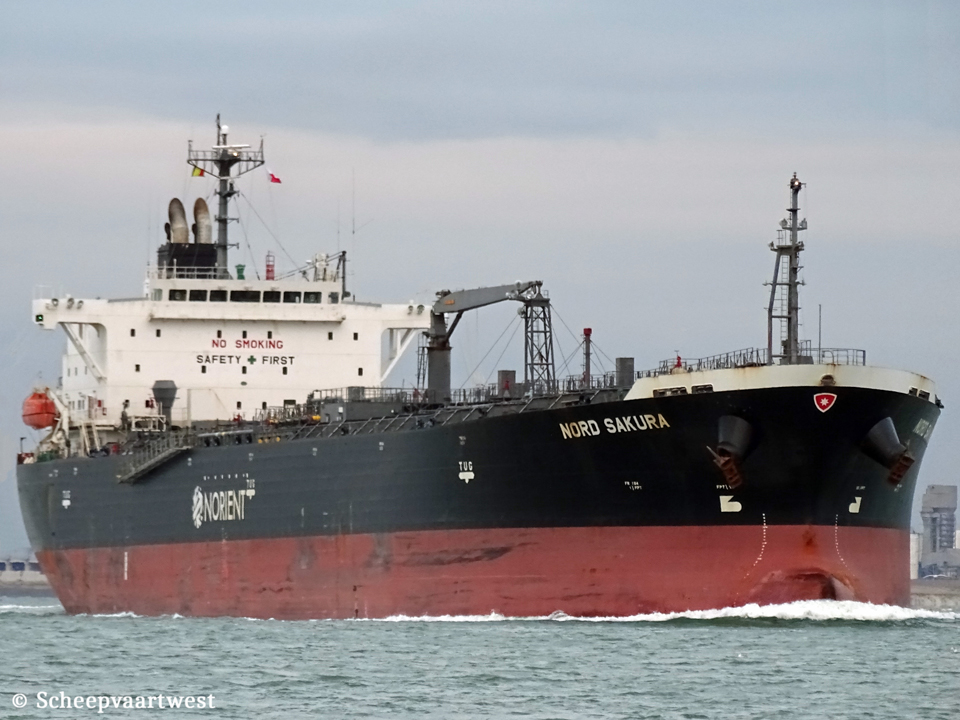

Nord Sakura IMO 9536820 02

Westerschelde 06 October 2016

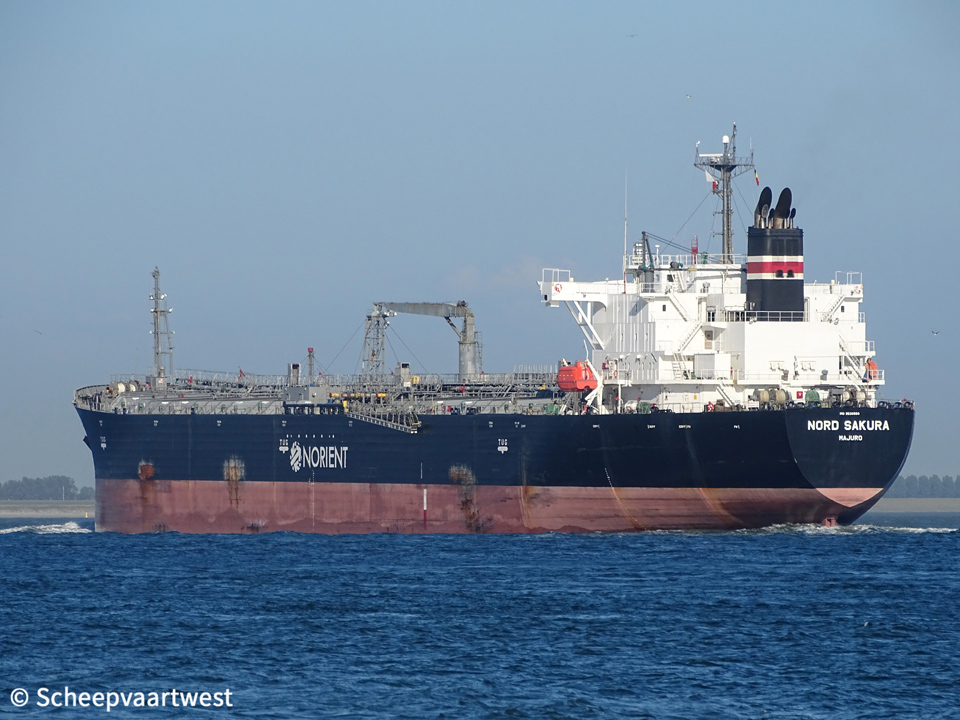

Nord Sakura 01
Westerschelde 20/06/18


Name

NORD SAKURA

Type

Oil product tanker

IMO-number

9536820

Call sign

V7XP8

Flag

Marshall Islands

Port of registry

Majuro

GT

28.736 m registered

Suez: 29.866,02 t

DWT

Summer: 44.995 t

Winter: 43.720 t

NT

12.012 t registered

Suez: 26.465,45 t

Panama: 23.868 t

Displacement

Summer: 55.284 t

Winter: 54.010 t

Length

181,54 m overall

Breadth

32,23 m extreme

Draught

Summer: 12,98 m

Winter: 11,73 m

Moulded L x B x D

174,00 x 32,20 x 18,70 m

Registered L x B x D

174,95 x 32,20 x 18,70 m

Keel to masthead

46,38 m

Air draft

Summer deadweight: 34,40 m

Normal ballast: 39,52 m

Lightship: 43,95 m

Freeboard

Summer: 6.751 mm

Winter: 7.000 mm

Depth

18,70 m moulded

Speed

Ballast: Max: 15,5 knots / economic: 13,5 knots

Laden: Max: 14,5 knots / economic: 13,0 knots

Max: 16,8 knots

Built

2012

Keel laid

07/10/2010

Launch date

06/09/2011

Date of completion

17/01/2012

Builder

Shin Kurushima Dockyard Co Ltd.

Immabari

Japan

Yard number

5658

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsui/MAN-BMW 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 550 mm

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 16,55 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Yanmar 6N21AL-UV main diesel generatorsets each 800 kW

Number of cargo tanks

14

Cargo tank capacity 98%

50.918 m³

Capacity (98%) of each natural segregation with double valve

Seg#1: 14.176,07 m³ (1W, 5W, SLP(S))

Seg#2: 15.117,15 m³ (2W, 6W)

Seg#3: 15.062,52 m³ (3W, 7W)

Seg#4: 8.461,30 m³ (4W, SLP(P))

Number of slop tanks

2

Slop tank capacity 98%

Seg#1: SLP(S) - 1.106,81 m³

Seg#4: SLP(P) - 8.16,86 m³

Total: 1.923,67 m³

Pumps

4x Centrifugal cargo pumps each 1.000 m³/h

1x Centrifugal ballast pump 1.400 m³/h

Manifolds

Bow to centre manifold: 90,15 m

Stern to centre manifold: 91,39 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.450 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 941 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.465 m³

Diesel oil: 418 m³

Fresh water: 330 m³

Anchor equipmanr

Langth: 632,50 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t

Commerical operator

Norient Product Pool ApS

Strandvejen 52

DK-2900, Hellerup

Denmark

Technical operator

Ishima Pte Ltd.

6 battery road, #34-01

Singapore, 048990

Republic of Singapore

Registered owner

Moon Rise Shipping Co., SA

Tapia, Linares & Alfaro

Plaza Bancomer, 3rd and 4th Floors

Panama City

Republic of Panama

Disponent owner

Dampskibsselskabet NORDEN A/S

Strandvejen 52

DK-2900 Hellerup

Denmark

Renamed

2020 Invictus

Marshall Islands, Majuro - Call sign: V7XP8

Owner: Invictus Shipping Corp

Manager: Coral Shipping Corp.

Latest data adjustment

27 October 2020
