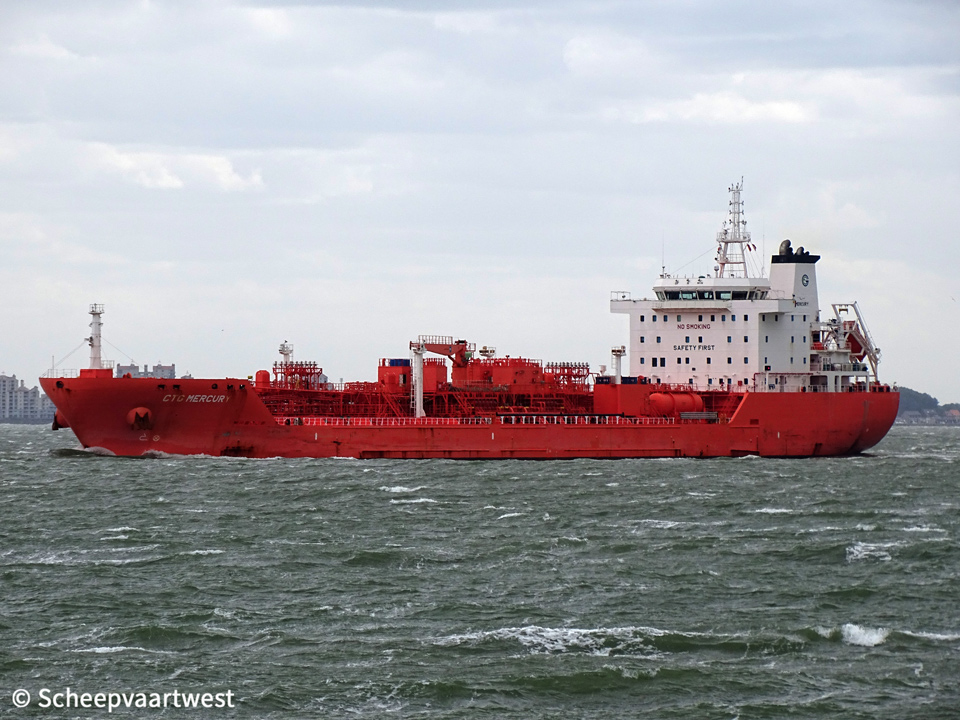

CTG Mercury 01

Westerschelde 06 June 2020

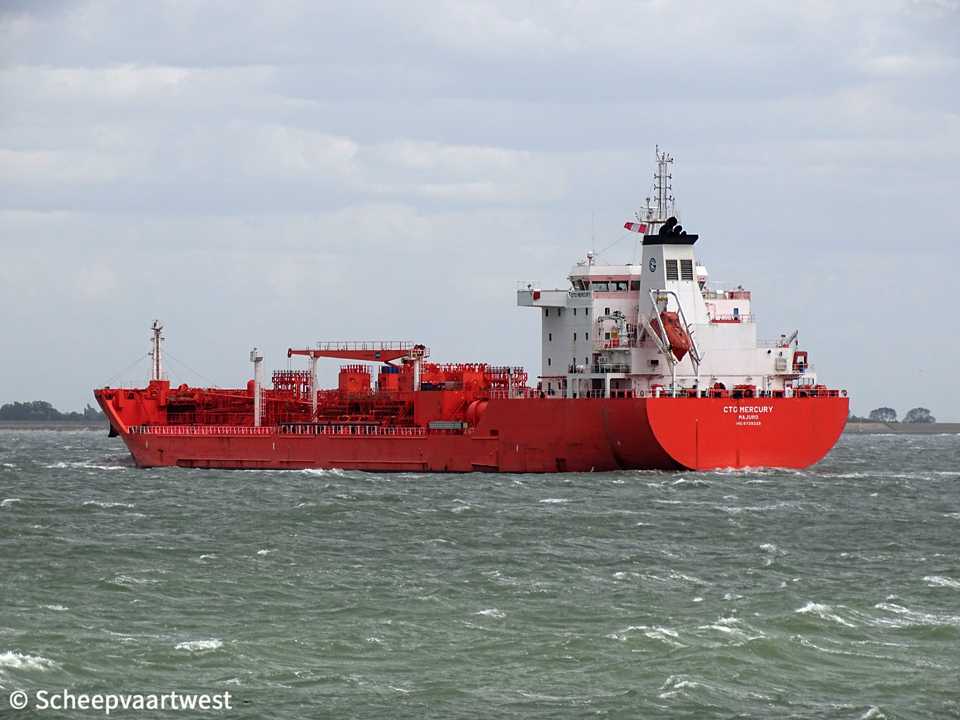

CTG Mercury 02
Westerschelde 06/06/20













Name

CTG MERCURY

Type

Tanker for chemicals and oil products

IMO-number

9739329

Call sign

V7LR9

Flag

Marshall Islands

Port of registry

Majuro

GT

17.139 t

Suez: 17.539 t

DWT

27.500 t

NT

7.722 t

Suez: 14.831 t

Panama: 14.423 t

Light ship

8.182 t

Length

165,14 m overall

156,58 m between perpendiculars

Breadth

26,97 m extreme

26,70 m moulded

Draught

Summer: 10,52 m

Keel to top of mast

46,70 m

Depth

13,60 m

Speed

Max: 15,50 knots

Built

2017

Keel laid

02/11/2015

Launch date

17/11/2016

Date of completion

02/06/2017

Builder

China Merchants Jinling Shipyard (Yangzhou)

AVIC Dingheng Shipbuilding Co., Ltd.

China

Yard number

AD0043

Hull material

Steel

Hull type

Double bottom with hopper

Double side

Continuous decks

1

Main engine

1x MAN-B&W-Yichang Marine 5S50ME-B9 - 2 stroke 5 cylinder combustion engine 6.040 kW at 117,0 rpm

Propellers

1x Mono-block propeller

Boilers

2x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated (Economizer)

Generators

3x MAN 6L23/30H diesel generatorsets each 900 kW

Bow thruster

1x 788 kW

Number of tanks

22

Cargo tank capacity

27.100 m³

Pumps

24x Cargo pumps

Number of slop tanks

2

Manifolds

Summer waterline to manifold: 6,01 m

Normal ballast waterline to manifold: 9,19 m

Rail to manifold: 4,95 m

Bow to centre of manifold: 82,60 m

Tank capacities

Ballast: 16.039,22 m³

Anchor equipment

Length: 605,00 m

Diameter: 64 mm

Lifting equipment

1x Hose handling deck crane- SWL 15,0 t

Outreach: 8,15 m

Crew

20

Manager

TB Marine Shipmanagement,

Shipmanagement GmbH & Co. KG

Paul-Dessau-Straße 6

22761 Hamburg

Germany

Registered owner

Hanyue Ltd.

Bergen

Norway

Latest data adjustment

23 October 2020
