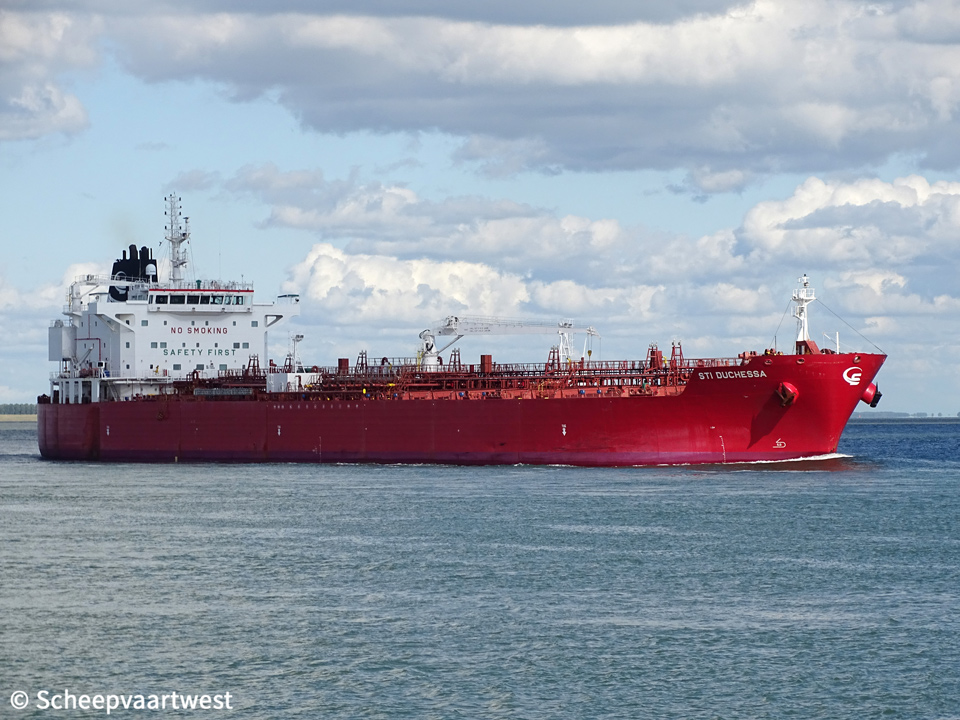

STI Duchessa 01

Westerschelde 10 July 2020



Name

STI DUCHESSA

Type

Tanker for oil and chemicals

IMO-number

9669938

Call sign

V7CA3

Flag

Marshall Islands

Port of registry

Majuro

GT

29.785 t

Suez: 31.623,45 t

DWT

Summer: 49.990,2 t

NT

13.224 t

Suez: 27.515,13 t

Panama: 24.724 t

Displacement

60.613 t

Length

183,12 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Summer: 13,3 m

Freeboard

6.065 mm

Depth

19,40 m moulded

Speed

14,5 knots

Built

2014

Keel laid

01/07/2013

Launch date

13/09/2013

Delivery date

27/01/2014

Builder

Hyundai Mipo Dockyard Co., Ltd.

100 Bangeojinsunhwan-Doro Dong-Gu

Ulsan

South Korea

Yard number

2389

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/HHI 6G50ME-B9.3 - 2 strone 6 cylinder 500 x 2.500 mm combustion engine 8.090 kW at 90,7 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Auxiliary boiler - 9,0 MPa - Aalborg(Mission) OL

1x Composite boiler - 9,0 MPa - Aalborg OC

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Hyundai/Himsen 6H21/32 - 4 stroke 6 cylinder 201 x 320 mm diesel engines each 900 kW connected with generators each 850 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Cargo tank capacity

54.816,20 m³

Number of slop tanks

2

Pumps

12x Cargo pumps each 500 m³/h

Tank capacities

Hydraulic oil: 17,90 m³

Ballast: 22.443,60 m³

Fresh water: 276,40 m³

Lub oil: 131,10 m³

Fuel oil: 1.458,70 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane port - SWL 2,0 t

1x Provision Crane Stbd - SWL 4,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Crew

25

Operator

Scorpio Marine Management India Pvt Ltd.

Registered owner

Hai Kuo Shipping 1653 Limited

Shanghai

China

Latest data adjustment

25 September 2020
