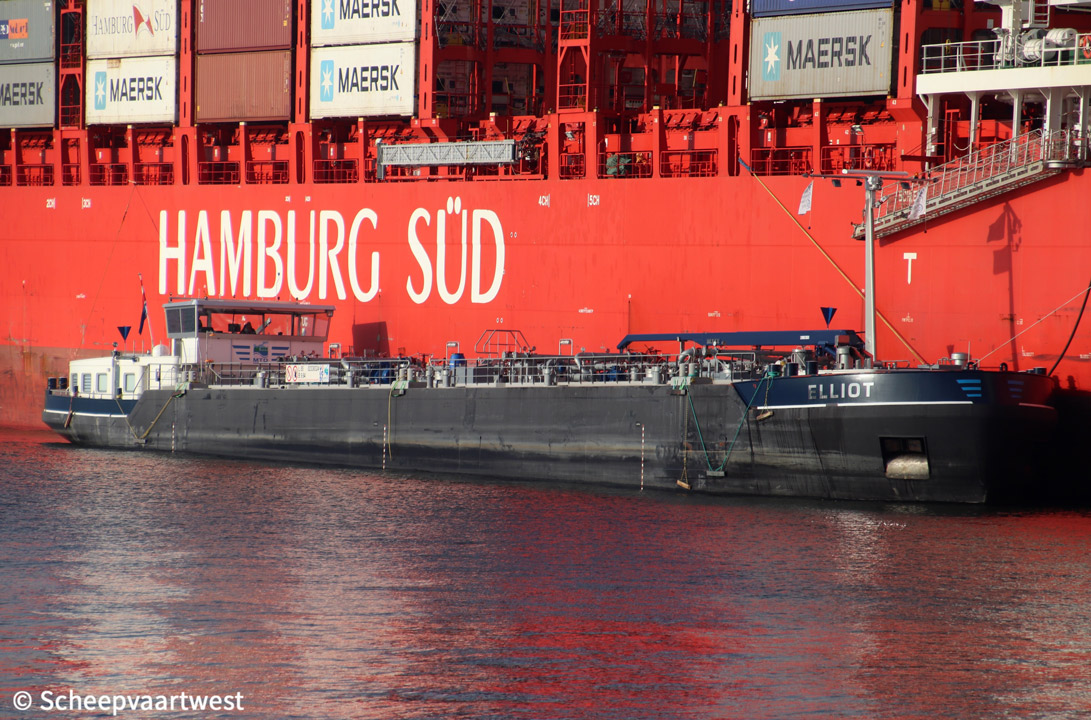

Elliot 01

Antwerpen 31 December 2019



Name

ELLIOT

Type

Inland tanker

ENI-number

02338324

Call sign

PB6921

Flag

The Netherlands

Port of registry

Wemeldinge

Length

85,00 m

Breadth

9,60 m

Built

2019

Builder casco

Santierul Naval Orsova SA

Orsova

Romania

Builder completion

Dolderman

Dordrecht

The Netherlands

Yard number

1092

Hull material

Steel

Main engine

1x Caterpillar 3508 (C) DI-TA electronic combustion engine 1.065 hp

Gearbox

1x Reintjes WAF 562 reduction 4,546:1

Propellers

1x 4 blades - Diameter 1.650 mm

Generators

1x John Deere 6135A engine connected with Stamford HC534 generator 480kVA

1x John Deere 6068H engine connected with Stamford UC274 generator 140kVA

1x John Deere 4045H engine connected with Stamford UC224 generator 60kVA

Bow thruster

1x Verhaar Omega-Jet - 408 hp electro motor

Pumps

1x EPS HCi 210 l cargo pump 400 m³/h connected with  ABB electro motor 185 kW

Owner

MTD BV

Amaliaplein 51

4424 HA Wemeldinge

The Netherlands

Latest data adjustment

07 June 2020
