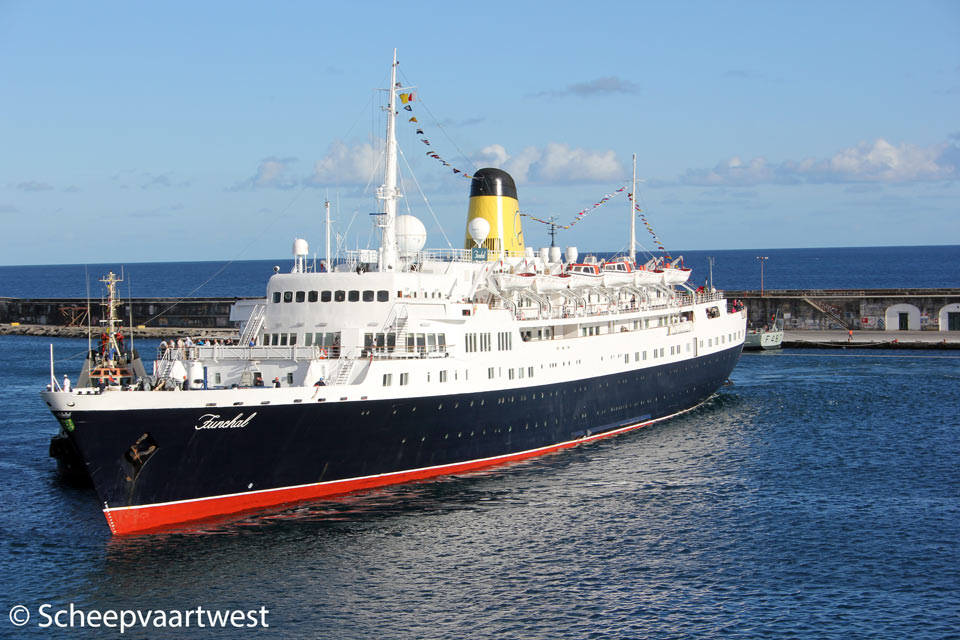

Funchal 05
Ponta Delgada, Azores 23 September 2013

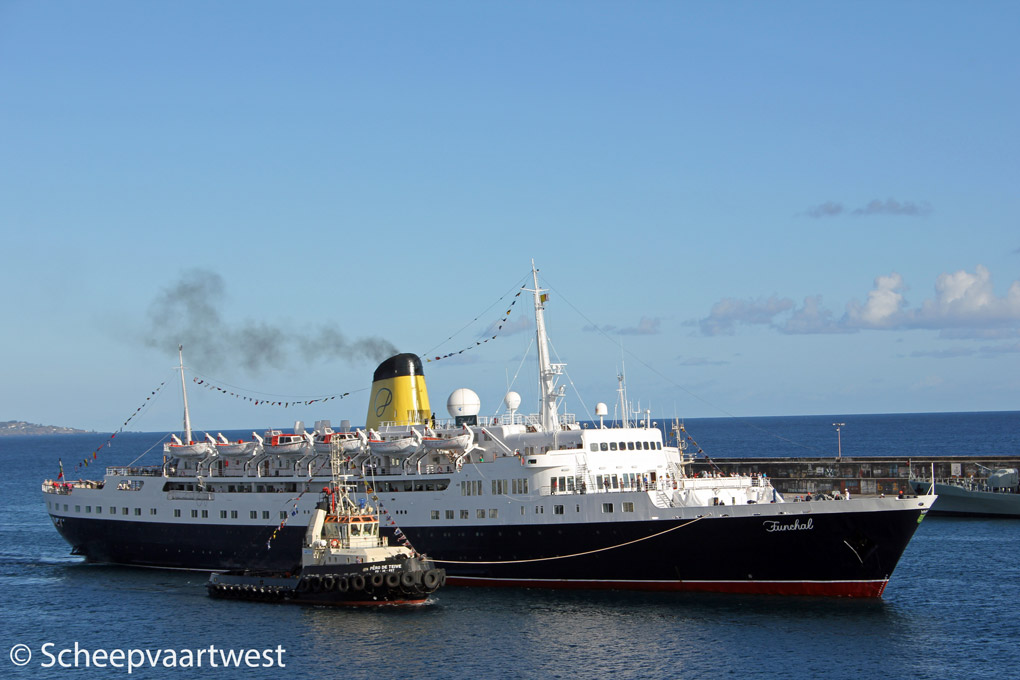

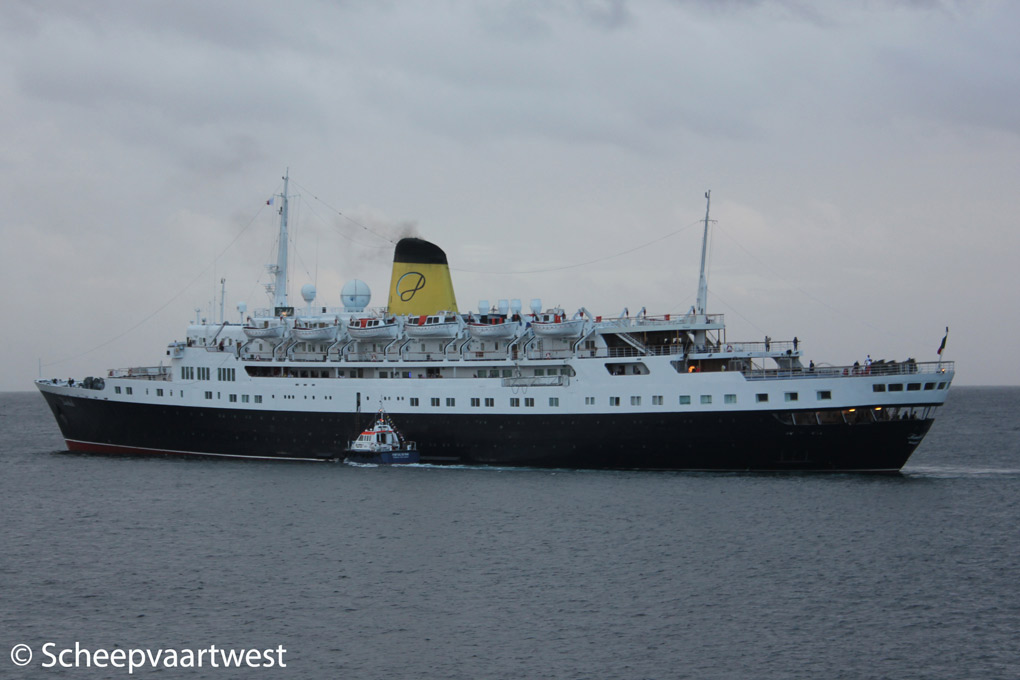

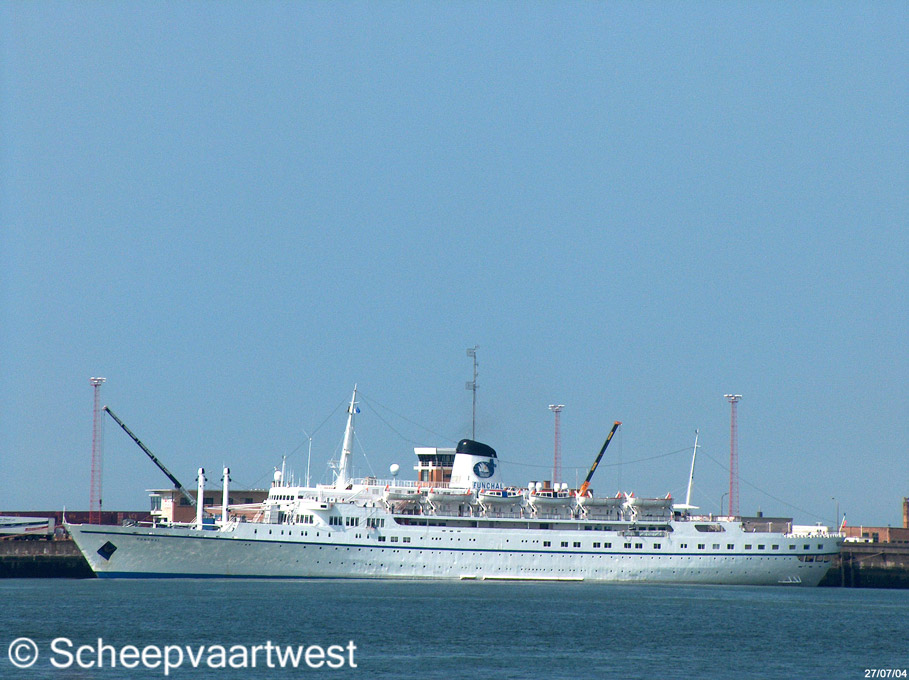

Funchal 04   Funchal 06   Funchal 2
Ponta Delgada 23/09/13 Ponta Delgada 24/09/13 Zeebrugge 27/07/04



Name

FUNCHAL

Type

Passengers vessel - Cruise ship

IMO-number

5124162

Call sign

2001 CSBM

Flag

2001 Portugal

Previous flags

10.1961 - 1985 Portugal
1985 - 2001 Republic of Panama

Port of registry

2001 Madeira

Previous port of registry

10.1961 - 1985 Madeira
1985 - 2001 Panama City

GT

9.563 t registered

DWT

2.975 t

NT

3.759 t registered

Length

153,51 m overall
138,90 m between perpendiculars
152,65 m registered

Breadth

19,08 m

Draught

Summer: 6,33 m

Air draft

9,15 m

Speed

Max.: 16,0 knots
Service: 14,5 knots

Built

1961
1994 Rebuild
2007 Refurbished
2013 Rebuild

Launch date

10.02.1961

Date of completion

01.10.1961

Builder

Helsingor Skibsvaerft OG
Maskinbyggeri, 353
Helsingor
Denmark

Yard number

353

Hull material

Steel

Hull type

Double hull

Bulkheads

9x Watertight

Main engines

2x Stork Werkspoor - 9 cylinder 410 x 470 mm diesel engines - each 5.000 hp/ 3.680 kW total 7.356 kW / 10.000 hp at 500 rpm
Built: 1973
Buider: Stork Werkspoor
Amsterdam
The Netherlands

Propellers

2x Screw Propeller Solid - at 141 rpm

Boilers

2x Independent auxiliary boiler - 8,0 bar

Electrical installation

Power voltage: 380 V 50 Hz
Lighting voltage: 220 V 50 Hz

Generators

3x Diesel generatorsets each 603 kW
1x Diesel generatorset 184 kW
1x Diesel generatorset 375 kW

Holds

2

Hatches

2
Hatch 1: 6,50 x 4,08 m
Hatch 2: 6,98 x 3,30 m

Tank capacities

Ballast water: 743,2 t
Bunker: 560 t

Number of decks

6

Winches

6

Fuel capacity

560 m³

Derricks

2x SWL 3,0 t

Elevators

3

Passengers decks

6

Passengers

651

Cabins

241

Crew

155

Manager

SCMA
Lisboa
Portugal

Previous manager

Arcalia Shipping Co Ltd.
Portugal

Operator

Portuscale Cruises
Lisboa
Portugal

Previous operator

1985 Arcalia Shipping Company Ltd.
Panama

Previous operators

10.1961 - 1974 Empresa Insulana the Navegação - Portugal
1974 - 1985 Companhia Portuguesa de Transportes Maritimos (CMT) - Portugal
Arcalia Shipping Company Ltd.
Portugal

Owner

Pearl Cruises Transportes
Portugal
