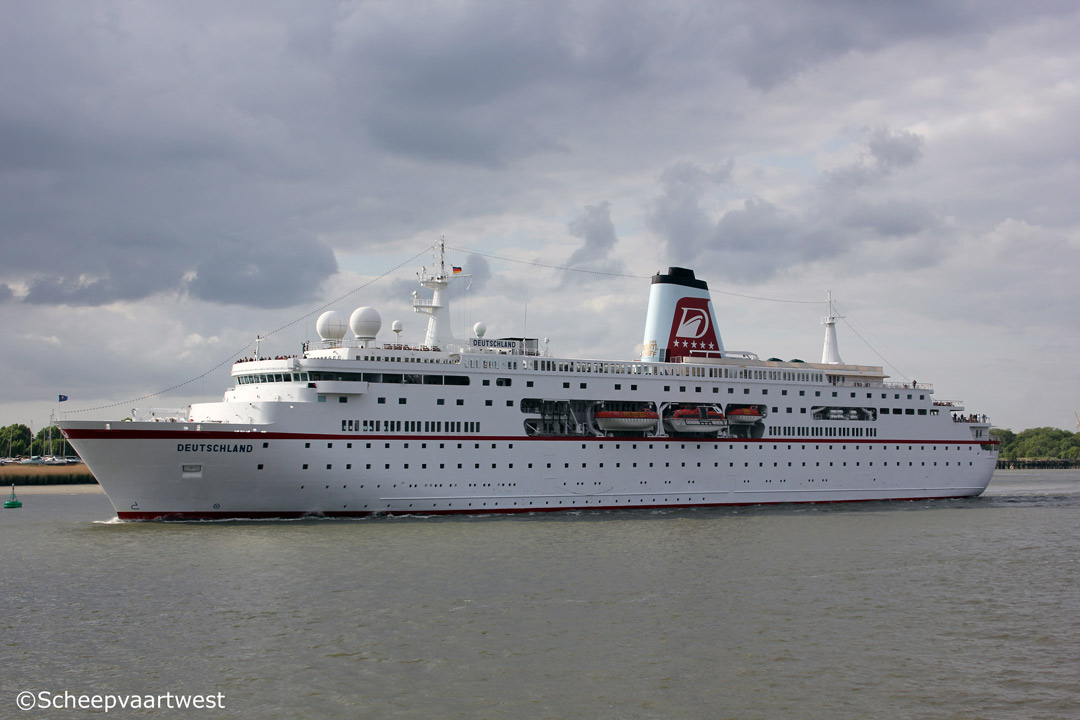

Deutschland 05

Antwerpen 07 May 2014

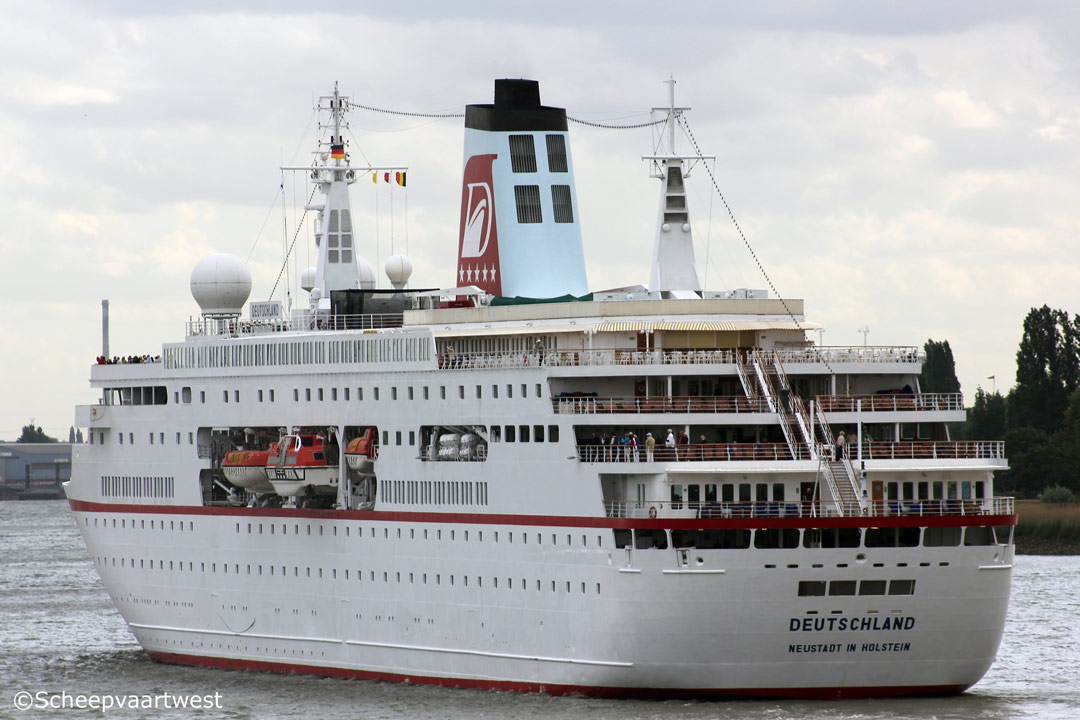

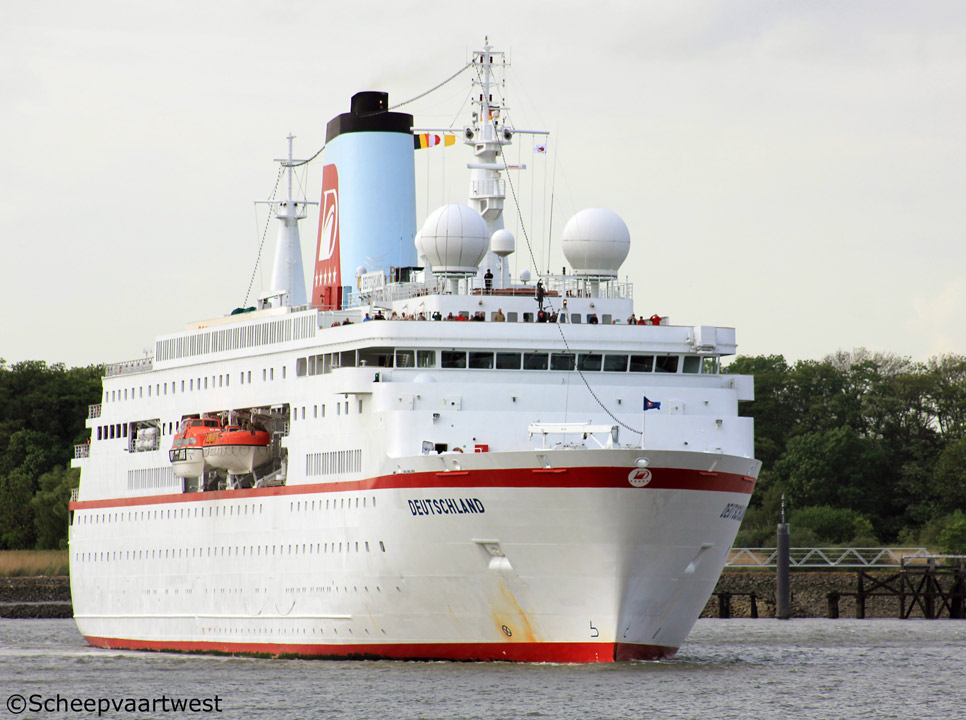

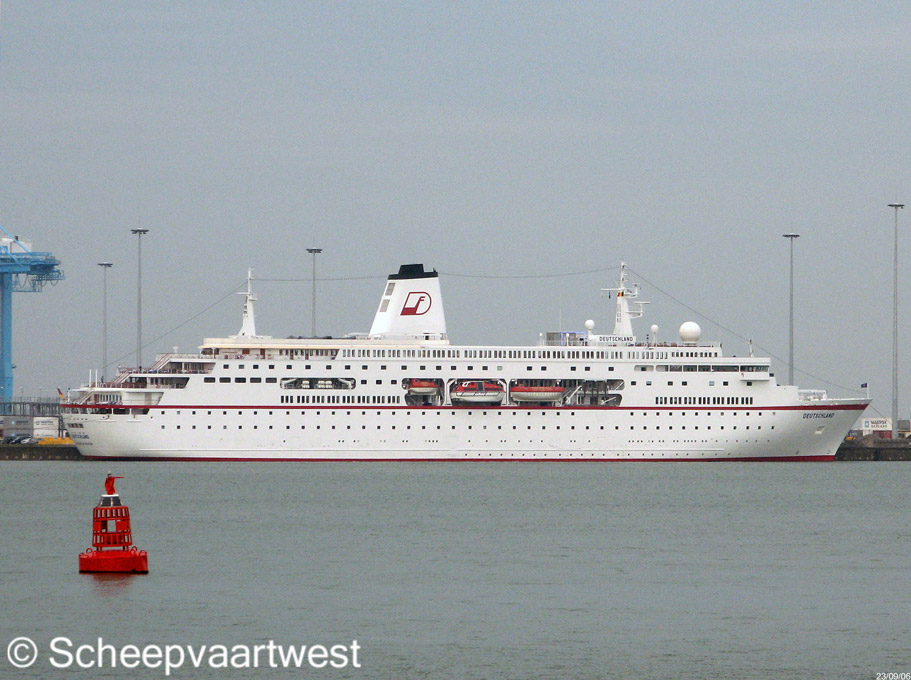

Deutschland 04   Deutschland 06   Deutschland 02
07/05/14   07/05/14   Zeebrugge 23/09/06



Name

DEUTSCHLAND

Type

Passengers ship / Cruise

IMO-number

9141807

Call sign

DMMC

Flag

Germany

Port of registry

Neustadt (Holstein)

GT

22.496 t

DWT

3.460 t

NT

8.264 t

Length

175,49 m overall

155,80 m between perpendiculars

161,76 m registered

Breadth

23,00 m extreme

Draught

5,78 m

Freeboard

2.323 mm

Depth

16,20 m moulded

Speed

19,0 knots

Built

1998

Keel laid

01.12.1996

Launch date

16.01.1998

Date of completion

01.05.1998

Builder

HDW - Howaldtswerke-Deutsche Werft GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Yard number

328

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

16

Continuous decks

5

Main engines

2x Krupp MAK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm diesel engine- each 3.520 kW at 600 rpm
2x Krupp MAK 6M32 - 4 stroke single acting 6 cylinder 320 x 480 mm diesel engine - each 2.640 kW at 600 rpm

Year of manufacture: 1997

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel

Federal Republic of Germany

Propellers

2x Controllable pitch propeller - aft at 164 rpm

Boilers

2x Steam boiler, oil fired - 10,0 bar

Heating surface: 124,0 m²

2x Steam boiler, exhaust gas heated - 11,0 bar

Heating surface: 200,0 m²

2x Steam boiler, exhaust gas heated - 11,0 bar

Heating surface: 270,0 m²

Year of manufacture: 1997

Manufacturer: Howaldtswerke-Deutsche Werft GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Electric installations

1x Plant 660/440 V - 3.600 kVA

1x Plant 660 V - 6.000 kVA

1x Plant 660 V - 325 kVA

Shaft generators

2x Each 3.000 kVA

Generators

2x Main diesel generatorsets each 1.800 kVA

Emergency generator

1x Diesel generatorset 325 kVA

Compressed air receivers

3x Receivers each 1.000 litres - 30,0 bar

Bow thruster

1x Transverse thruster ULSTEIN - 1.000 kW, forward

Tank capacities

Fuel: 1.216 m³

Ballast water: 2.106,5 m³

Anchor equipment

3x Anchors weight each 5.610 kg

Chain length: 577,50 m

Diameter: 58 mm

Cabins

302

Passengers

513

Total crew

260

Manager

Peter Deilmann Reederei GmbH & Co. KG
Am Holm 25
23730 Neustadt/Holstein
Federal Republic of Germany

Operators

11.0501998 - 05.2015 Peter Deilmann Reederei, Neustadt - Germany

05.2005 Absolute Nevada LLC, Las Vegas, Nevada - USA
05.2016 Charter: Phoenix Reisen GmbH , Bonn - Germany

Owner

Schiffahrtsgesellschaft MS "DEUTSCHLAND" GmbH & Co.
Am Holm 25
23730 Neustadt
Federal Republic of Germany

Special annotation

Deadwood aft

Renamed

09.2015 - 01.05.2016 World Odyssey - Bahamas, Nassau - Call sign: C6BZ6

Owner: Absolute Nevada LLC

Manager: V Ships Leisure SAM

Latest data adjustment

09 January 2017
