Dubrovnik 30 September 2016 |
|
Name |

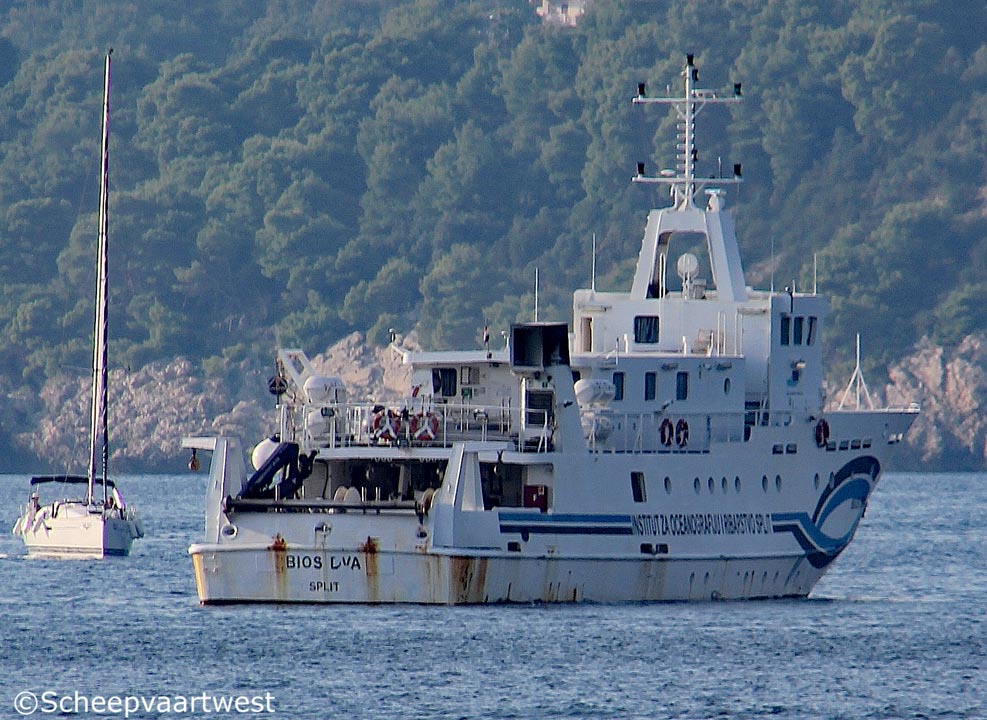

BIOS DVA |
|
Type |
Research ship - Survey vessel |
|
IMO-number |
9491185 |
|
Call sign |
9AA6693 |
|
Flag |
Croatia (Republika Hrvatska) |
|
Port of registry |
Split |
|
GT |
336 t |
|
DWT |
Sumner: 72 t |
|
NT |
100 t |
|
Length |
36,30 m overall 29,15 m between perpendiculars |
|
Breadth |
8,15 m |
|
Draught |
3,38 m |
|
Freeboard |
1.123 mm |
|
Depth |
4,50 m |
|
Speed |
Max.: 13,0 knots Service: 11,8 knots |
|
Built |
2009 |
|
Keel laid |
20.11.2007 |
|
Launch date |
08.07.2008 |
|
Builder |
Brodosplit - Brodogradilište Specijalnih Objekata |
|
Yard number |
513 |
|
Hull material |
Steel |
|
Main engine |
1x Cummins KTA 38-M2 - 4 stroke diesel engine 895 kW at 1.800 rpm Built: 2008 Builder: Cummins Engine Co., Ltd., Daventry - United Kingdom |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
1x Cummins diesel engine coupled with Stanford generator 140 kW - 50 Hz 1x Cummins diesel engine coupled with Stanford generator 80 kW - 50 Hz |
|
Bow thruster |
1 |
|
Anchor equipment |
Length: 275 m Diameter: 19 mm |
|
Lifting equipment |
1x Palfinger hydraulic crane - SWL 6,0 t 1x A-Frame - SWL 850 kg |
|
Crew |
6 Researchers: 17 |
|
Manager |
Institut Za Oceanografiju I Ribarstvo |
|
Owner |
Institut Za Oceanografiju I Ribarstvo |
|
Latest data adjustment |
30 November 2016 |
