Terneuzen 21 August 2017 |
 |
| Antwerpen 22/05/15 |
|
Name |

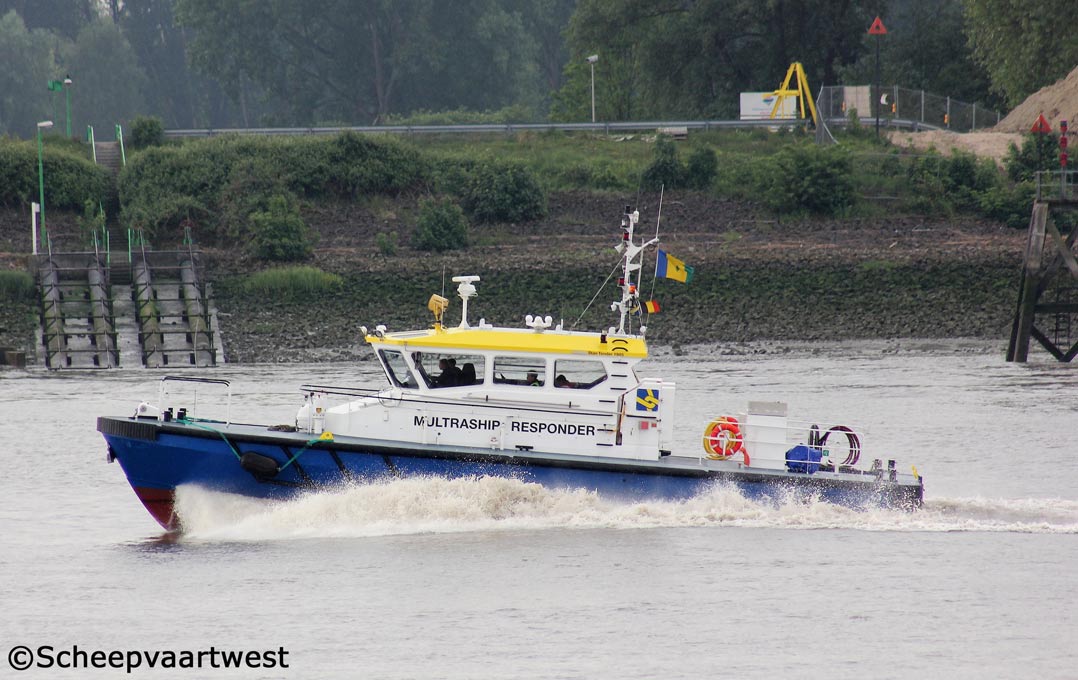

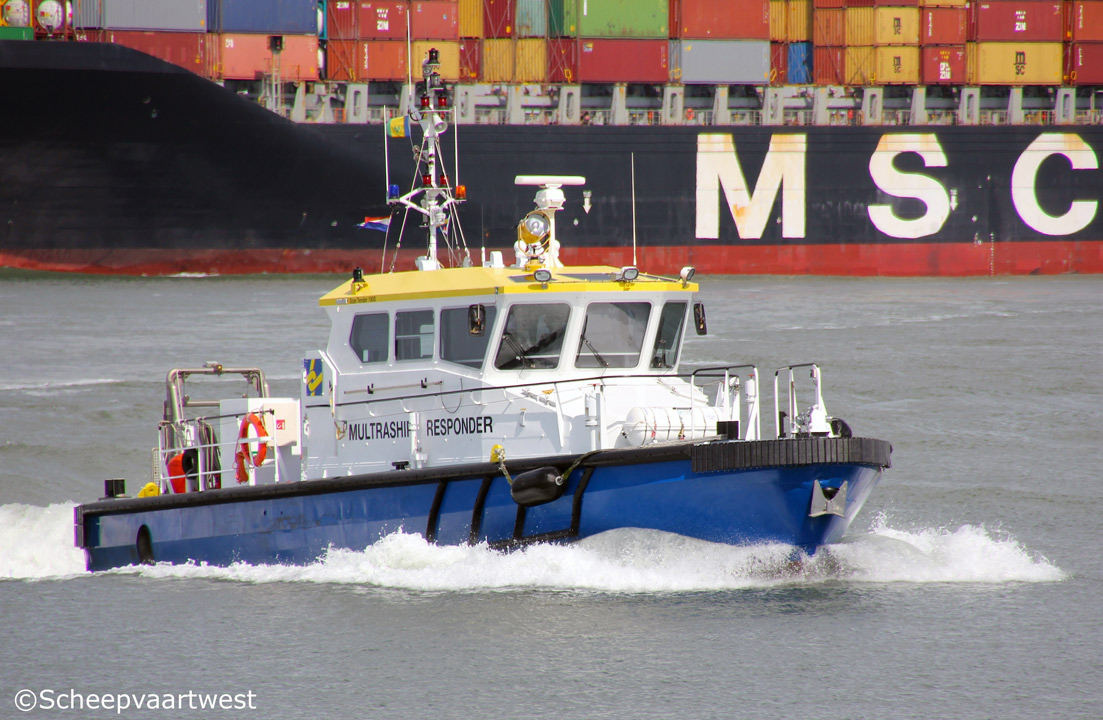

MULTRASHIP RESPONDER |
|
Type |
Crew boat - Port tender - Fast utility vessel |
|
Call sign |
J8B5243 |
|
Flag |
Saint Vincent & Grenadines |
|
Port of registry |
Kingstown |
|
GT |
59 t |
|
NT |
43 t |
|
Length |
19,15 m overall 18,90 m between perpendiculars |
|
Breadth |
5,30 m overall |
|
Draught |
Max.: 1,80 m |
|
Depth |
2,70 m at sides |
|
Speed |
28,5 knots |
|
Built |
2015 |
|
Date of completion |
04.02.2015 |
|
Builder |
Damen Shipyards Changde Co., Ltd/ |
|
Yard number |
542415 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C32 TTA - 4 stroke 12 cylinder 145 x 162 mm diesel engine 1.790 KW / 2.432 hp at 2.000 rpm Builder: Caterpillar Inc. |
|
Gearbox |
2x Reintjes WVS 430/1 |
|
Propellers |
2x Fixed pitch propellers - aft at 814 rpm |
|
Generators |
1x Generatorset 16 kW - 20 kVA - 24 hp - 230/400 Volt |
|
Engine room ventilation |
2x 10.000 m³/h |
|
General service pump |
Electrically driven, 400 Volt Azcue CA-50 - 24,0 m³/h |
|
Diesel powered salvage pump |
Hatz 1B20 |
|
Electric submersible pump capacity |
19,2 m³/h |
|
Tank capacities |
Fuel oil: 5,9 m³ Fresh water: 0,5 m³ Dirty oil/ bilge water: 0,2 m³ |
|
Accommodation |
2x Cabins 1x Galley |
|
Manager |
Multraship Towage & Salvage |
|
Registered owner |
B.V. Scheepswerf en Machinefabriek v/h A. van de Grijp |
|
Latest data adjustment |
07 June 2015 |
